INSTALLATION
• In case of a direct connection to the house
wiring is preferred, do the following:
• Disconnect the power.
• Cut off the plug from the power cord.
• Connect the wires from the power cord to
the wires from the house wiring using UL
listed wire connectors.
• Store the excess wires in the wiring box.
• Reconnect the power.

4. Installing the Baffle Filters

• Peel off the protective film from the baffle
filters if there's any.
• Align the baffle filter's bottom pins to the holes
on the hood. (Step 1)
• Pull and hold the latch. The top pins of the
baffle filter will retrack into the filter while the
latch is pulled. (Step 2)

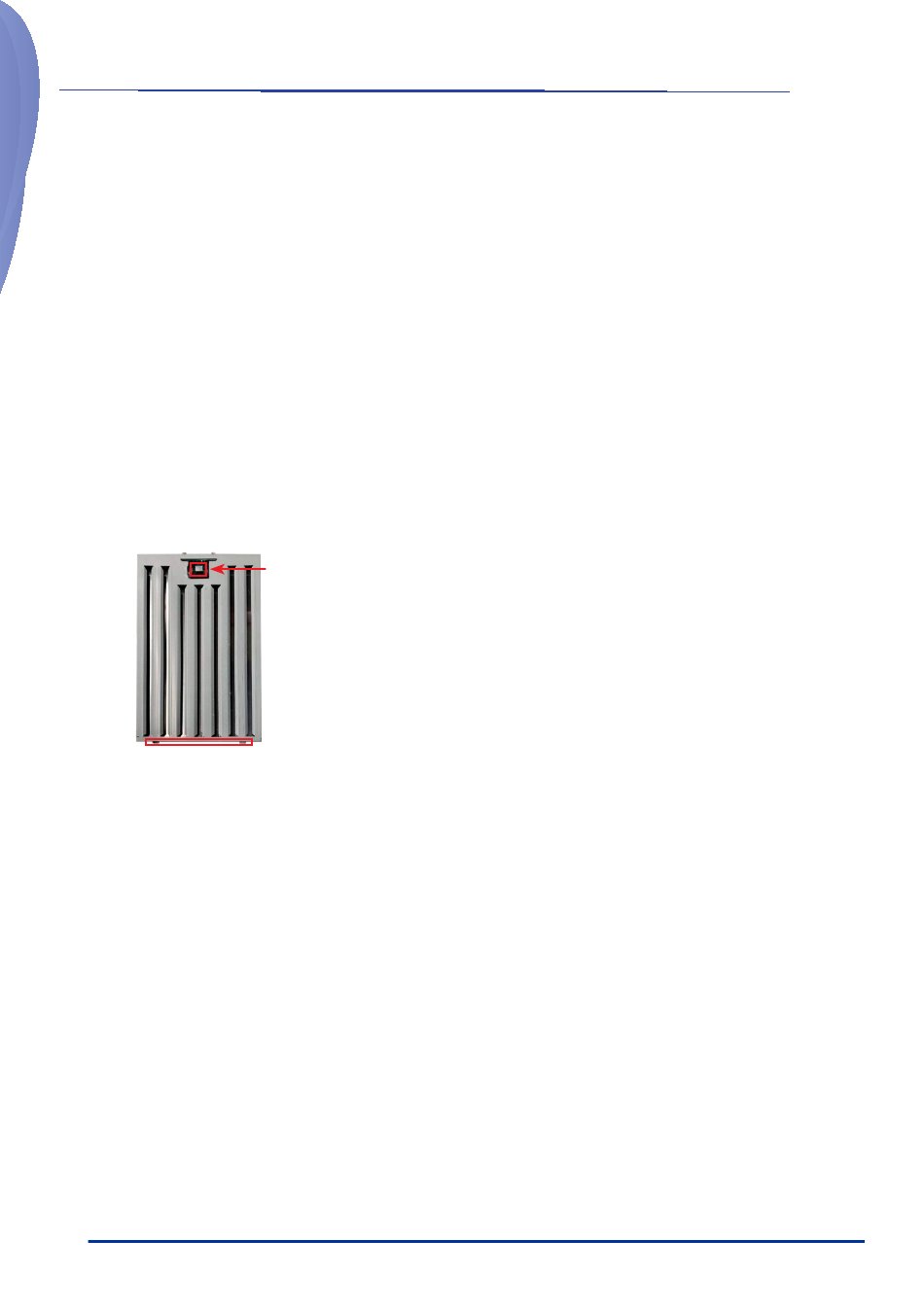

Filter
Top
Filter
Bottom
• Keep pulling and holding the latch and push
the top end of the baffle filter upwards till it
reaches the hood.
• Release the latch to lock the baffle filter in
place.
• Repeat these steps to install the rest of the
baffle filters.
Note
• Make sure all baffle filters are securely locked
and won't come off.
• These Baffle Filters collect the oil/grease
while you cook. There's no need to install
other types of filters.
• Clean the Baffle Filters every 2 to 3 months
regularly. Follow the cleaning guide in Page
10.
8
Step 2: Pull and hold the latch.
Step 1: Align the pins.
5. Installing the Oil Collector
• Follow the instruction in Page 10 to install the
Oil Collector.

6. Completing the Installation

Turn power ON in the control panel. Check all lights
and fan operations.
