Awoco RH-IT-R Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
awoco.com
Ver. RH-IT-R-2023B

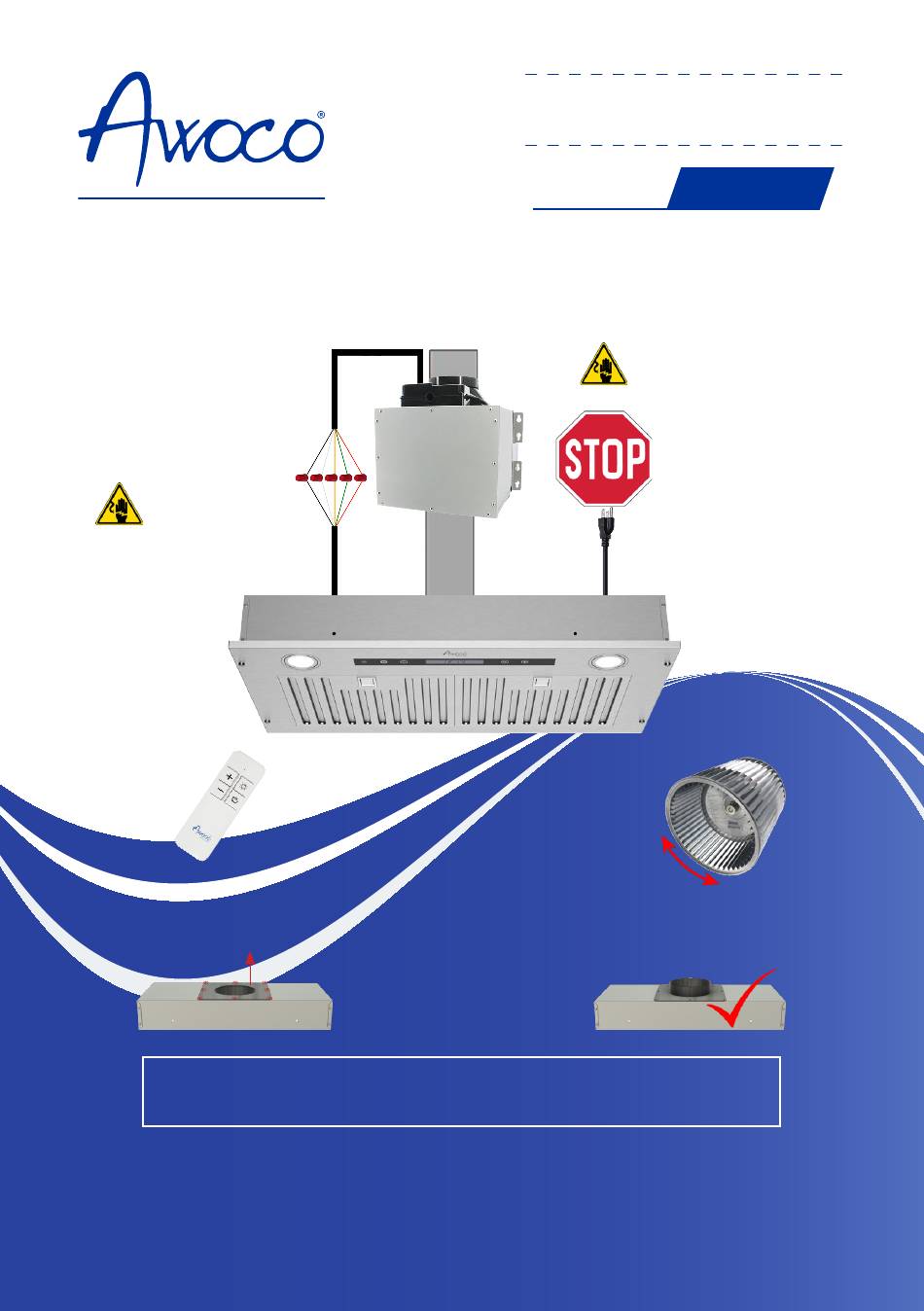

Step 1:
Connect the 5 wires from
the Hood Unit to the
Blower Unit, matching the
wire colors from both ends.
Exposed unconnected
wires will cause
personal injury and
Electrical
electrical damage
Hazzard
to the motor that is
not covered by the
warranty.
*The Top Vent Adapter is pre-assembled upside-down on the hood body to save packaging space,
please remove the screws and flip the Adapter over for the correct assembling position.
* Unpack & Check for Shipping Damages *
* Test Run Before Installation *
Range Hood
OWNER'S
Split Insert Series
RH-IT-R Models
Electrical
Hazzard
Important!
•
Make sure to manually spin the fan wheel to check if it's
running without any obstacles before the test run.
•
If the fan wheel is unbalanced or in contact with the
casing, refer to Page 11 for how to re-seat the fan wheel.
MANUAL
DO NOT plug in the
Power Cord if the 5
wires in Step 1 are NOT
connected to the Blower
Unit !

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-IT-R and is the answer not in the manual?

Questions and answers

Related Manuals for Awoco RH-IT-R

Summary of Contents for Awoco RH-IT-R

  • Page 1 Range Hood awoco.com OWNER'S MANUAL Ver. RH-IT-R-2023B Split Insert Series RH-IT-R Models Step 1: Electrical Connect the 5 wires from Hazzard the Hood Unit to the DO NOT plug in the Blower Unit, matching the Power Cord if the 5 wire colors from both ends.

  • Page 2: Wiring Diagram

    • This Wiring Diagram is for connecting the any of the speed buttons to turn it on. wires from RH-IT-R Hood Unit to an Awoco 7. Check each speed variation and pay attention Interior Blower Unit (Model: RH-SP##-BLW) to the noise level to make sure there isn't any ONLY.
  • Page 3 Speed Medium (M) Hood Unit Speed High (H) Important This Diagram is for connecting the wires from RH-IT Hood Unit to an Awoco Interior Blower Unit (Model: RH-SP##-BLW) ONLY. • • If you have a Blower Unit from other Brands: •...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK • Always turn the hood ON when cooking at OR PERSONAL INJURY, PLEASE READ THE high heat or when flambeing food (i.e. Crepes FOLLOWING CAREFULLY BEFORE ATTEMPTING Suzette, Cherries Jubilee, Peppercorn Beef TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN Flambé).

  • Page 5: Installation Preparations

    INSTALLATION PREPARATIONS Venting Requirements • If a reducer is needed, use a long reducer instead of a pancake reducer and install it as far away from the range hood as possible. Reducing the duct size will restrict and • Have the venting system go vertically from decrease the speed of the airflow and hense the range hood to the roof if possible.
  • Page 6 INSTALLATION PREPARATIONS Electrical Requirements: • A 120V, 60Hz., AC only, 3A fused electrical circuit is required. • Wire sizes and connections must conform with the power rating of the range hood and all applicable codes and standards. • DO NOT have a fuse in the neutral or ground circuit.

  • Page 7: Installation

    INSTALLATION Installing the Hood Unit The following steps requires 2 or more people: • Unpack the Range Hood and place it on a sturdy flat surface with the Baffle Filters facing the ceiling. • Remove the Baffle Filters and the Screws on both sides. (Figure 1) Figure 1 •...

  • Page 8: Electrical Connection

    Store the excess wires in the wiring box. • Reconnect the power. Important Installing the Baffle Filters If you have an Awoco Exterior Blower Unit, or • any Blower Unit from other Brands: • Peel off the protective film from the baffle •...

  • Page 9: Range Hood Use

    RANGE HOOD USE Range Hood Control Panel activated while the blower is running, a countdown timer will show up in the LCD Remote Delayed Display. Control Auto Sensor Shut Off Light Light Touch the Light button once and the lamps will •...

  • Page 10: Range Hood Care

    RANGE HOOD CARE Cleaning • Release the handle. • Repeat the steps for the remaining filters. WARNING Replacing the Filters: • To reduce the risk of electrical shock, DO NOT clean the hood while it's operating. • Replace the baffle filters immediately should •...

  • Page 11: Before Calling For Service

    RANGE HOOD TROUBLESHOOTING Before Calling for Service Issue Possible Cause / Solution • Check if the range hood is plugged in. Make sure that all power is turned ON, the fuse isn't blown and all electrical wirings are properly connected. The range hood doesn't turn on •...
  • Page 12 RANGE HOOD TROUBLESHOOTING How to adjust and replace the fan wheel • Connect to the main power and run the hood in different speeds to check if the new fan wheel is working properly. • Disconnect the main power. • Remove the hood from its mounting location.

  • Page 13: Warranty

    • Repair parts or replacement products will be provided by Awoco, free of charge, on an • Contact us at 1-888-412-3428, between 10 exchange basis, and will be either new or AM and 5 PM, Monday - Friday, Pacific Time.
  • Page 14 Website: www.awoco.com Customer Support: 1-888-412-3428...
