Summary of Contents for Awoco RH-R06-G30

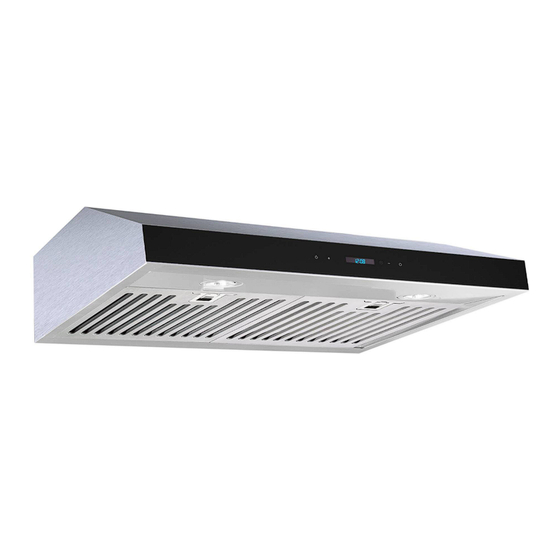

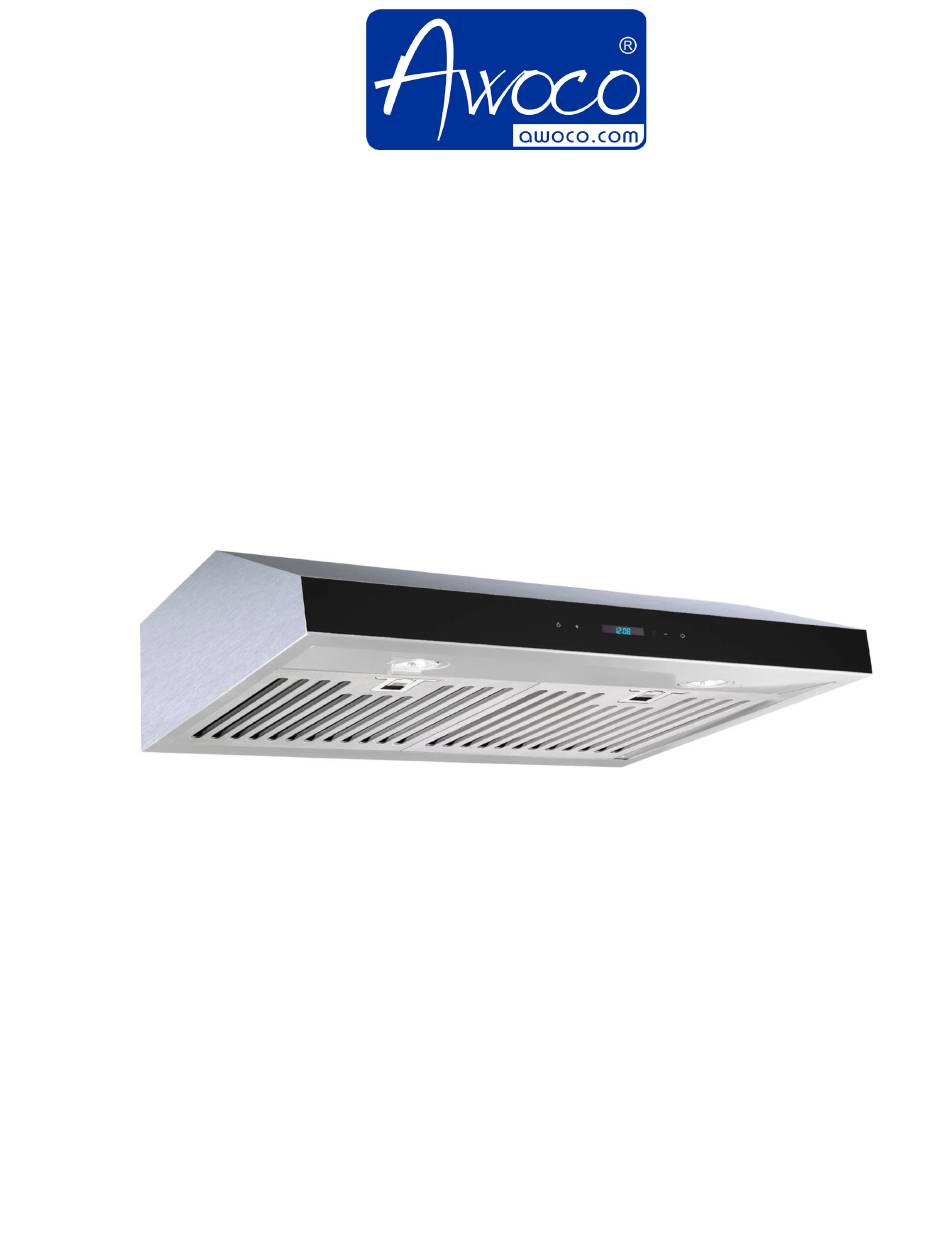

- Page 1 INSTRUCTION MANUAL Model No.: RH-R06-G30, RH-R06-G36...
-
Page 2: Table Of Contents
Table of Contents Safety Information ..............................Warranty ................................... Pre-Installation ................................Installation ................................. Operation ................................Maintenance ................................Maintenance Tips ..............................Troubleshooting ..............................Wiring Diagram ............................... Awoco Contact ................................ -
Page 3: Safety Information
Use this unit only in the manner intended by the manufacturer. If Use an extinguisher ONLY you have any questions, contact Awoco customer service at the You own a Class ABC extinguisher, and you know how to email address or telephone number listed in the manual. -
Page 4: Warranty
Warranty This range hood is warranted to the original purchaser to be free of defects in material and workmanship for two (2) years from the date of purchase. Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective under normal use and service during the warranty period. -
Page 5: Pre-Installation
Pre-installation TOOLS REQUIRED HARDWARE EXAMPLE... - Page 6 Pre-installation (continued) PACKAGE CONTENTS...
- Page 7 Pre-installation (continued) SPECIFICATIONS Model No. Dimension Voltage Speeds Lamps RH-R06-G30 29-3/4”W x 22”D x 7”H 120V/60Hz 2 x 3W LED RH-R06-G36 35-3/4”W x 22”D x 7”H 120V/60Hz 2 x 3W LED PLANNING INSTALLATION • Before proceeding to install, please make sure you have thoroughly inspected the range hood for any possible damages or missing parts.
- Page 8 Pre-installation (continued) While using the hood with non-electrical appliances, make sure there’s an opening that would allow the • clean air to enter the kitchen to prevent the backflow of the exhaust gas. The clearance between the cooking surface and the bottom of the range hood is between 24” and 30”. •...
-
Page 9: Installation
Installation Overview 4. This range hood comes with 3 adapters: 1 vertical rectangular adapter, 1 vertical round This appliance requires a ductwork that leads to adapter and 1 horizontal rectangular adapter. outdoors through the wall or roof. The vertical rectangular adapter is pre-installed by default. - Page 10 Installation (continued) performance and too little may result (3) Attach the horizontal rectangular adapter to the back of the hood. in fire hazard and cause damage to Then fasten the adapter using the the hood. same screws from the shutoff plate. Hood Installation 1.
-
Page 11: Operation
Operation This hood can be manually operated with the buttons on the front control panel. 1 – On/Off 3 – Down 5 – Delayed Shutoff Timer 2 – Lamp 4 – Up Setting the Speed On/Off (1) button once and the Minute indicator will flash. -
Page 12: Maintenance
Maintenance Baffle Filters 1. Clean the baffle filters frequently. Depending on the hood usage, the cleaning cycle can range from every few days to every few weeks. 2. The baffle filters are easy to clean and are dishwasher safe. 3. How to clean: a) Unplug the power cord from the wall outlet. -
Page 13: Maintenance Tips
Maintenance Tips Clean and maintain the hood regularly so that it is at its optimal state to perform at its maximum capacity. DO NOT Wipe the hood body with a soft cloth and Do not clean the hood with abrasive or •... -
Page 14: Troubleshooting
• The hood won’t turn on Check if the front control panel is connected • to the circuit board. Contact Awoco, replace the circuit board if • needed. • Check if the hood is firmly mounted to the wall and the cabinet. -
Page 15: Wiring Diagram
Wiring Diagram...
