INSTALLATION PREPARATIONS

Venting Requirements

DO
• Have the venting system go vertically from the
range hood to the roof if possible.
• Have 24"-30" distance between the cooktop
and the range hood. 27" is recommended.
• Use uniformed duct of 6" round duct or 3-1/4 x
10" rectangular duct or larger.
• Use metal duct only. Rigid metal duct is
recommended. Semi-rigid aluminum duct is
also acceptable for easy connection. Please
refer to your city building code for vent
requirement.
• Make sure there is a minimum of 24" of
straight vent between the elbows if more than
1 elbow is used.
• Use minimal numbers of elbows and the
shortest route for the venting system for a
better performance.
• Use aluminum foil tape or duct tape to seal all
joints in the venting duct system.
• Use caulking silicone to seal exterior wall or
roof opening around the cap.
• Always keep the duct clean to ensure proper
airflow.
DO NOT
• End the venting system in an enclosed area
indoors.
• Use plastic vent.
• Use no more than three 90° elbows.
• Install 2 elbows together.
• Install the range hood outside of the
recommended height.
• Reduce the duct size below the recommended
size.

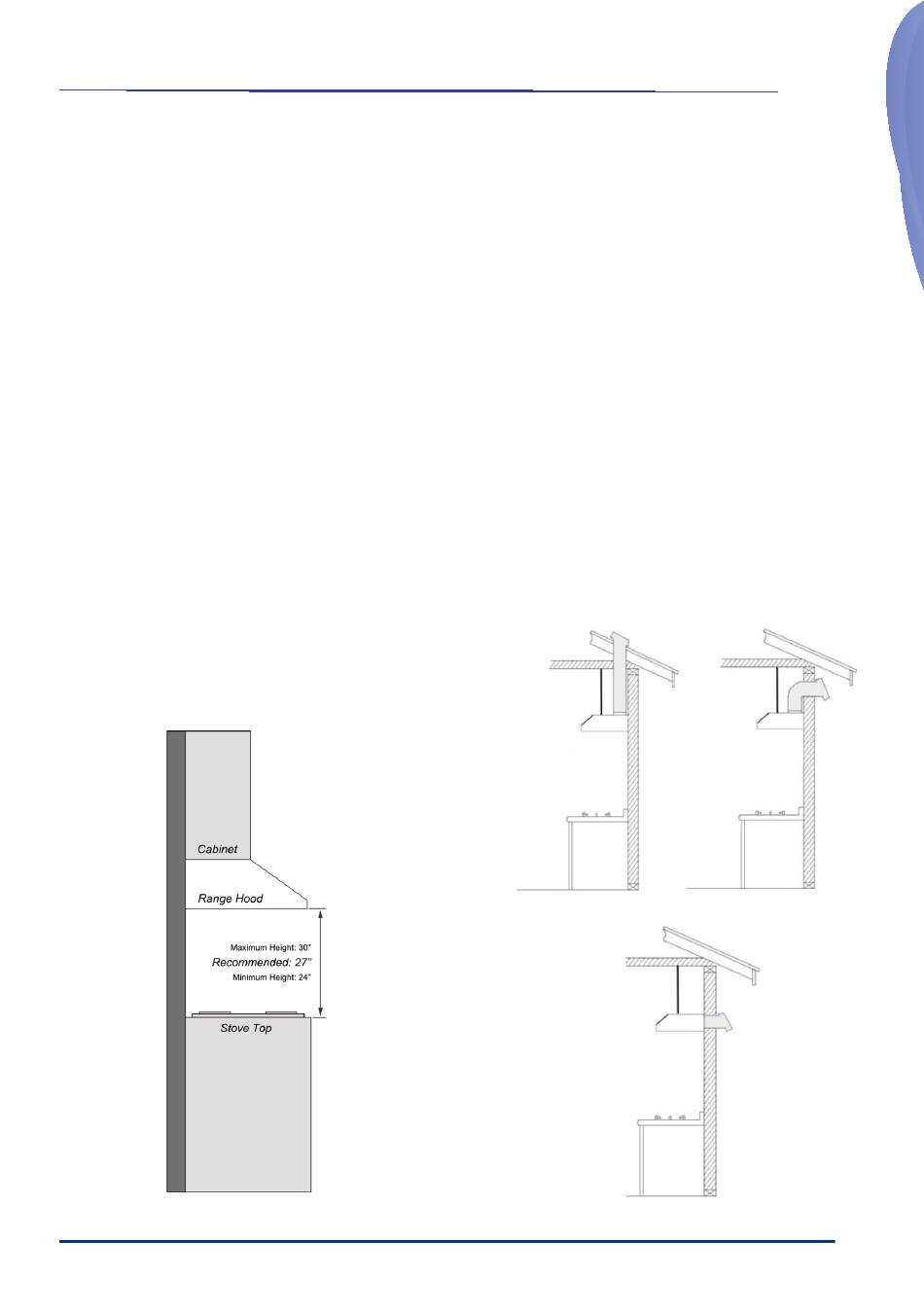

Venting System Setup

• This range hood can be:
• 6" top venting through the roof or wall.
or
• 3-1/4 x 10" top or rear venting through the
roof or wall.
Top Venting Roof Exhaust
Roof Cap
Cabinet
Range Hood
Stove Top
Rear Venting Through-Wall Exhaust
Cabinet
Range Hood
Stove Top
Top Venting Wall Exhaust
Cabinet
Side
Wall
Cap
Range Hood
Stove Top
Side
Wall
Cap
