Summary of Contents for Awoco 6" Height Under Cabinet Series

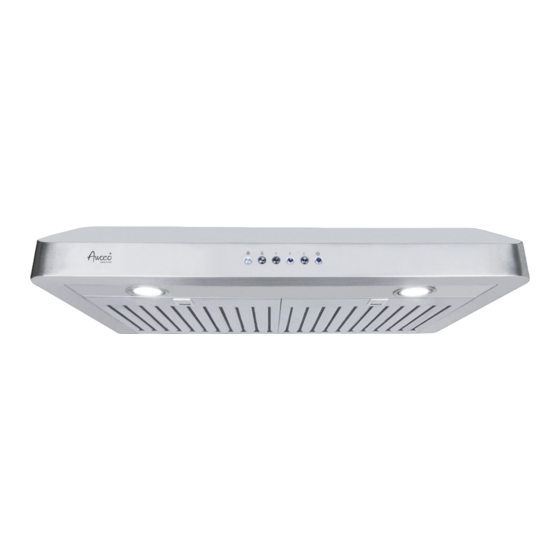

- Page 1 Ver. RH-R/C06-2020A RH-C06 Models RH-R06 Models OWNER'S MANUAL Range Hood Test Run Before Installation 6" Height Under Cabinet Series...
- Page 2 RANGE HOOD BEFORE INSTALLATION FOR ANY DEFECTS In case of this manual destroyed or lost, please visit OR SHIPPING DAMAGE: https:/ /www.awoco.com and download a digital version. Installation Overview 1. Remove the range hood and accessories from the package carefully.
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions Installation Preparations Venting Requirements Venting System Setup Duct Run Calculation Chart Electrical Requirement Installation Installing the Range Hood Connecting the Vent System Electrical Connection Installing the Baffle Filters Completing the Installation Range Hood Use Range Hood Control Panel Range Hood Care Clean the Exterior Surfaces... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR Cherries Jubilee, Peppercorn Beef Flambé). PERSONAL INJURY, PLEASE READ THE FOLLOWING • Clean ventilating fans frequently. Grease should not CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, be allowed to accumulate on the fan or filter. INSTALL, OPERATE OR MAINTAIN THE RANGE HOOD: •... -
Page 5: Installation Preparations
INSTALLATION PREPARATIONS DO NOT Venting Requirements • End the venting system in an enclosed area indoors. • Use plastic vent. • Have the venting system go vertically from the • Use no more than three 90° elbows. range hood to the roof if possible. •... -
Page 6: Duct Run Calculation Chart
INSTALLATION PREPARATIONS IMPORTANT! • If long duct run is needed, increase the duct size from 6" to 7" or 8" to 9". • If a reducer is needed, use a long reducer instead of a pancake reducer and install it as far away from the range hood as possible. -
Page 7: Installation
INSTALLATION Installing the Range Hood • Raise and screw the top of the hood to the bottom of the cabinet through the knockout • For installing under the cabinet with recessed holes shown below: bottom, attach a 4" wide wood filler strip (not provided) on each side. -
Page 8: Installing The Baffle Filters
Range Hood Use wire connectors. Delayed Auto Shutoff function. • Store the excess wires in the wiring box. • Press the Power button the 3rd time will • Reconnect the power. shutoff the range hood immediately. Installing the Baffle Filters Delayed Auto Shutoff Function •... -
Page 9: Range Hood Care
To avoid damage to the exterior surfaces: • DO NOT use corrosive or abrasive detergent. • This range hood uses 12V, 3W LED. Contact Awoco • DO NOT use steel wool, scoring pad or steel brushes. customer service to get the replacement LED lights. -
Page 10: Range Hood Troubleshooting
Range Hood Troubleshooting Before Calling for Service Issue Possible Cause / Solution • Check if the range hood is plugged in. Make sure that all The range hood doesn't turn on power is turned ON, the fuse isn't blown and all electrical wirings are properly connected. -
Page 11: Warranty
Awoco will, at our options, • Decribe the issue you are experiencing in detail. either repair or replace any part of our products... - Page 12 Website: www.awoco.com Customer Support: 1-888-412-3428...
