Important!
Make sure to manually spin the fan wheel to check if it's running without
any obstacles before the test run.
If the fan wheel is unbalanced or in contact with the casing, refer to Page
11 for how to re-seat the fan wheel.

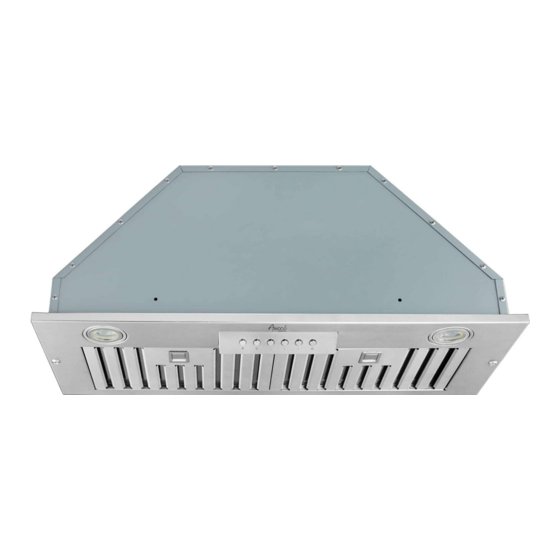

OWNER'S MANUAL
Range Hood
Built-In with Blower Series
RH-BQ, RH-BQ-M Models
Ver. RH-BQ-2021B
Test Run
Before
Installation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-BQ and is the answer not in the manual?

Questions and answers

Related Manuals for Awoco RH-BQ

Summary of Contents for Awoco RH-BQ

  • Page 1 If the fan wheel is unbalanced or in contact with the casing, refer to Page 11 for how to re-seat the fan wheel. OWNER'S MANUAL Range Hood Test Run Before Installation Built-In with Blower Series RH-BQ, RH-BQ-M Models...
  • Page 2 RANGE HOOD BEFORE INSTALLATION FOR ANY DEFECTS In case of this manual destroyed or lost, please visit OR SHIPPING DAMAGE: https:/ /www.awoco.com and download a digital version. Installation Overview 1. Remove the range hood and accessories from the package carefully.

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions Installation Preparations Venting Requirements Venting System Setup Electrical Requirement Installation Installing the Range Hood Electrical Connection Installing the Baffle Filters Optional Ductless Configuration Completing the Installation Dimensions Range Hood Use Range Hood Control Panel Range Hood Care Clean the Exterior Surfaces Clean or Replace the Baffle Filters...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR spillovers that may ignite. Heat oils slowly on low or PERSONAL INJURY, PLEASE READ THE FOLLOWING medium settings. CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, • Always turn the hood ON when cooking at high INSTALL, OPERATE OR MAINTAIN THE RANGE HOOD: heat or when flambeing food (i.e.

  • Page 5: Installation Preparations

    INSTALLATION PREPARATIONS Venting Requirements DO NOT • Have the venting system go vertically from the • End the venting system in an enclosed area indoors. range hood to the roof if possible. • Use plastic vent. • Have 24"-30" distance between the cooktop and •...

  • Page 6: Electrical Requirement

    INSTALLATION PREPARATIONS IMPORTANT! • If long duct run is needed, increase the duct size from 6" to 7" or 8" to 9". • If a reducer is needed, use a long reducer instead of a pancake reducer and install it as far away from the range hood as possible.

  • Page 7: Installation

    INSTALLATION Installing the Range Hood Note • If the wood hood is enclosed at the bottom, make a cutout on the board so that the Range Hood can fit into the wood hood. Guide the duct into the Wood Hood. Temporarily secure the top of the duct to the ceiling opening or wall opening. The following steps requires 2 or more people: •...

  • Page 8: Installing The Baffle Filters

    INSTALLATION WARNING Electrical Shock Hazard Disconnect power before servicing • In case of a direct connection to the house wiring is preferred, do the following: • Disconnect the power. • Cut off the plug from the power cord. • Connect the wires from the power cord to the wires from the house wiring using UL listed wire connectors. •...

  • Page 9: Dimensions

    INSTALLATION RH-BQ Dimensions Wood Hood Cut-Out Size: 26-1/8" x 10-3/8" 10-3/8'' 11-3/4'' 2-1/2'' 26'' 10-1/4'' 27-3/4'' 11-3/8'' RH-BQ-30 Wood Hood Cut-Out Size: 34" x 10-3/8" 10-3/8'' 11-3/4'' 2-1/2'' 33-7/8'' 10-1/4'' 35-3/8'' 11-3/4'' RH-BQ-36...
  • Page 10 INSTALLATION RH-BQ-M Dimensions Wood Hood Cut-Out Size: 26-1/8" x 13-1/2" 10-3/8'' 11-3/4'' 2-1/2'' 26'' 13-3/8'' 27-3/4'' 14-1/2'' RH-BQ-M30 Wood Hood Cut-Out Size: 34" x 13-1/2" 10-3/8'' 11-3/4'' 2-1/2'' 33-7/8'' 13-3/8'' 35-3/8'' 14-1/2'' RH-BQ-M36...

  • Page 11: Range Hood Use

    RANGE HOOD USE Range Hood Control Panel • Power • Pressing the Power button can also turn on and resume the Range Hood to the speed the last time used. • After cooking, press the Power button once will activate the Delayed Auto Shutoff function.

  • Page 12: Range Hood Care

    RANGE HOOD CARE Cleaning Replacing the Filters: • Replace the baffle filters immediately should they WARNING become worn out due to aging or prolonged usage. • To reduce the risk of electrical shock, DO NOT clean Replacing the LED Lamps: the hood while it's operating.

  • Page 13: Range Hood Troubleshooting

    RANGE HOOD TROUBLESHOOTING Before Calling for Service Issue Possible Cause / Solution • Check if the range hood is plugged in. Make sure that all The range hood doesn't turn on power is turned ON, the fuse isn't blown and all electrical wirings are properly connected.
  • Page 14 RANGE HOOD TROUBLESHOOTING Issue: The hood is making squeaking noise when it's • Connect to the main power and run the hood in running. different speeds to check if the new fan wheel is Possible Cause: The blower fan wheel is offset to 1 side working properly.

  • Page 15: Warranty

    This limited warranty is applied to the original retail * Awoco is not responsible for any labor costs associated purchaser and valid only for products purchased for home use. with removing, servicing, installing, or determining the source of problems with our products from third-party service providers.
  • Page 16 Product Support and Additional Information: If you need assistance using your product or you would like to start the warranty service: • Contact us at 1-888-412-3428, between 11 AM and 5 PM, Monday - Friday, Pacific Time. • Contact us at www.awoco.com/pages/contact-us.
  • Page 17 Website: www.awoco.com Customer Support: 1-888-412-3428...
