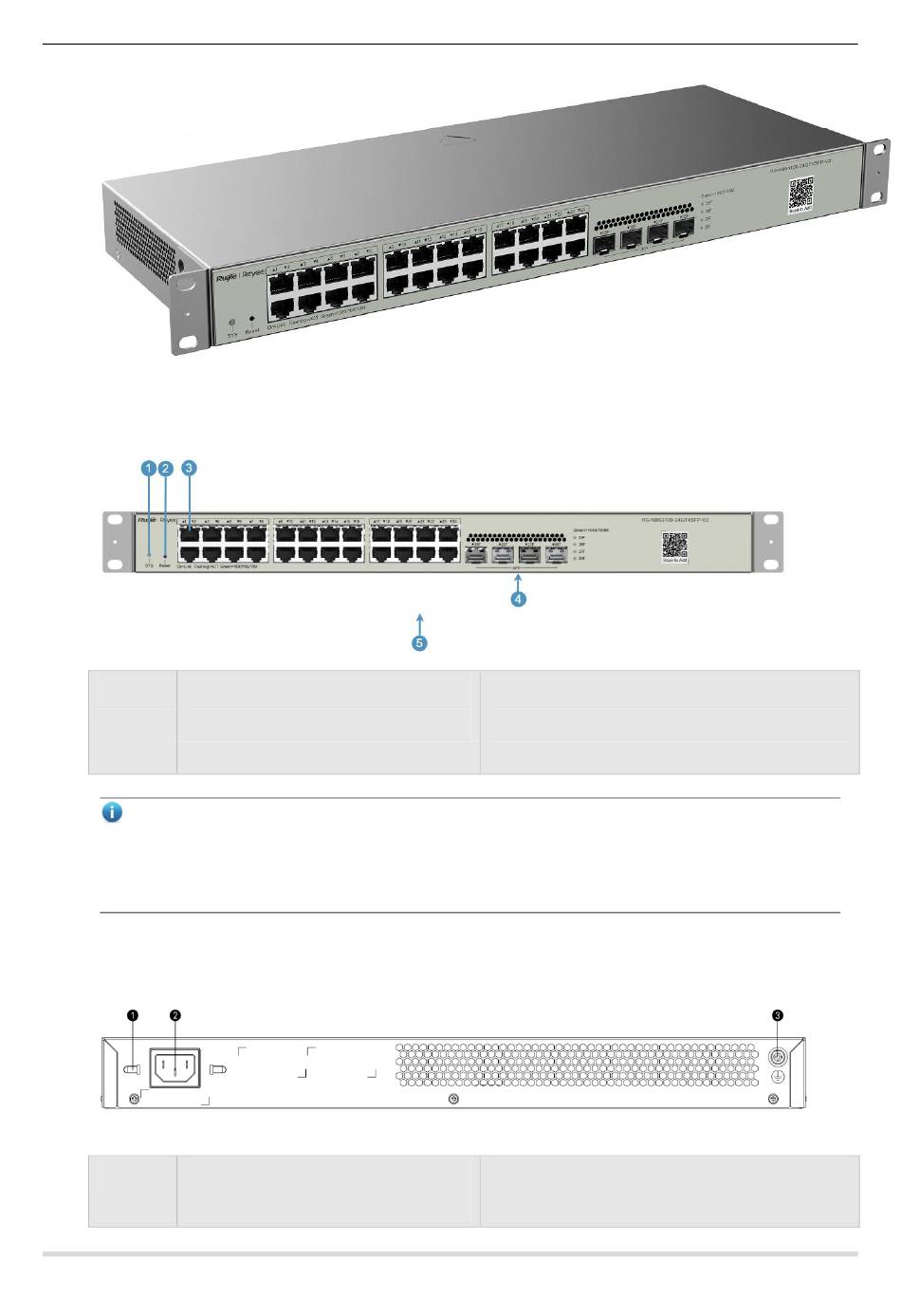

Ruijie Reyee RG-NBS3100-24GT4SFP-V2 Installation Manual page 9

Installation Guide
Front Panel
Figure 1-2 Front Panel of the RG-NBS3100-24GT4SFP-V2
Note: 1. System status LED
2. Reset button
Note

The switch restarts after the reset button is pressed for less than 2 seconds.

The switch restores the default factory settings after the reset button is pressed for more than 5 seconds
(until the status LED blinks).
Back Panel
Figure 1-3 Back Panel of the RG-NBS3100-24GT4SFP-V2
Note: 1. Power cord retention clips
2. Three-hole AC power receptacle
3. 10/100/1000 Base-T Ethernet port
4. 1000Base-X SFP port
5. Nameplate on the bottom of the device
3. Protective earthing terminal
Nameplate (on the bottom of the device)
