Installation Guide
Appendix A Connectors and Connection Media
Optical Fiber Connection
For the optical fiber ports, select single-mode or multimode optical fibers for connection according to the fiber

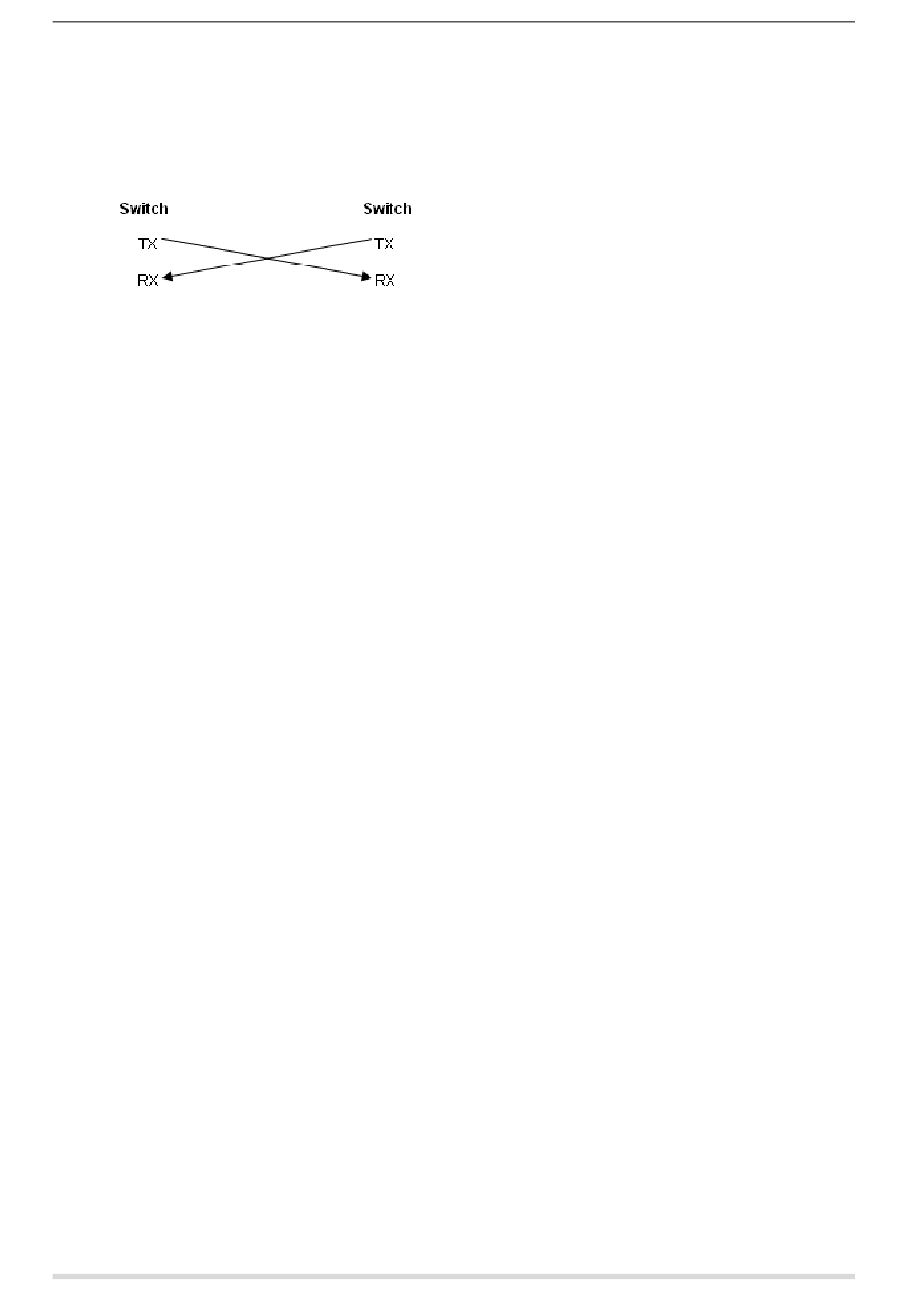

module connected. Figure A-4 shows the connection schematic diagram.
Figure A-4 Optical Fiber Connections
22
