Mounting the Switch on a Table

Attach the four rubber pads to the recessed areas on the bottom of the switch, as shown in Figure 3-7 and
Figure 3-8.

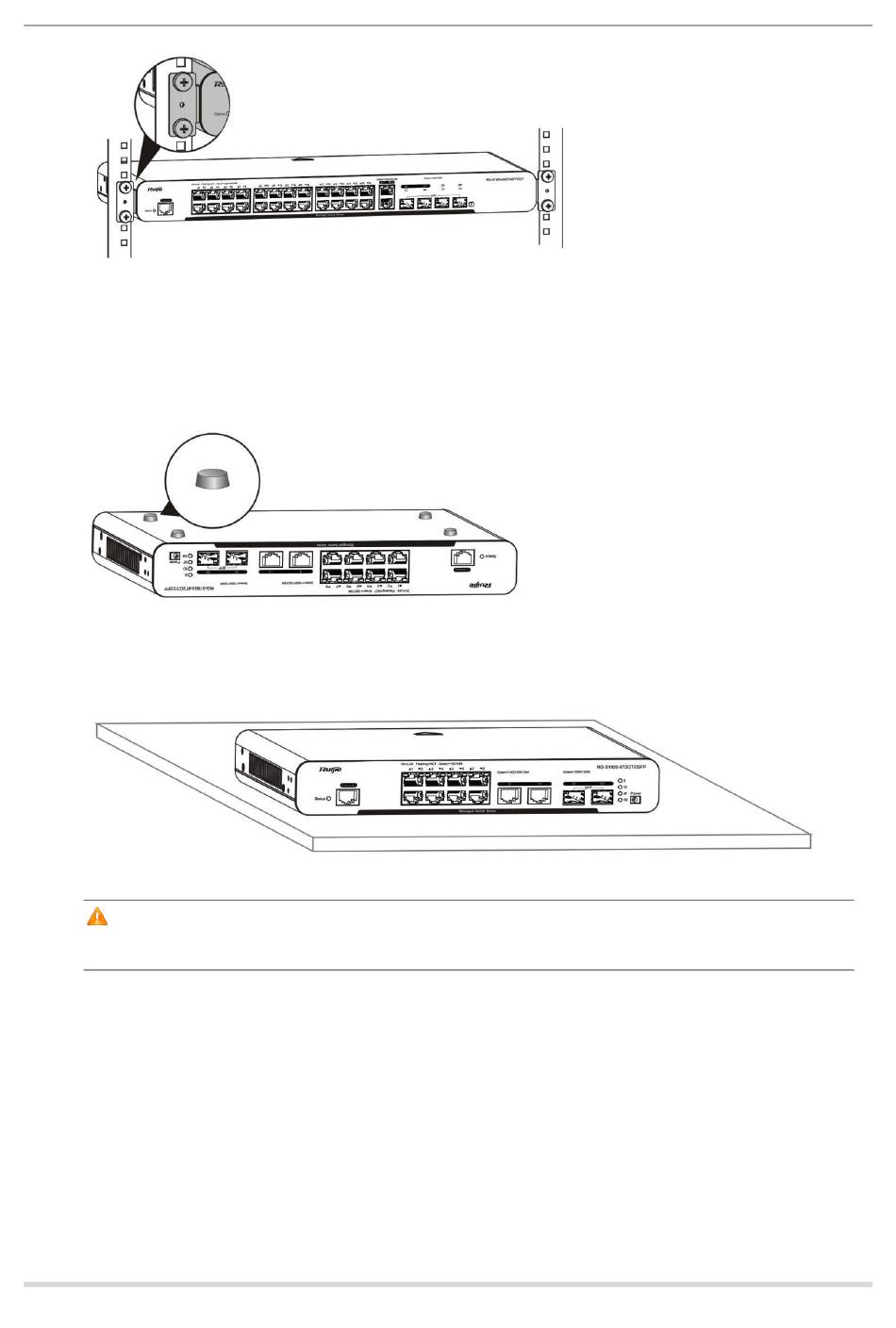

Figure 3-7 Attaching the Rubber Feet to the Recessed Areas
Place the switch on the table, as shown in Figure 3-8.
Figure 3-8 Mounting the Switch on the Table
Caution
The device must be installed and operated in the place that can restrict its movement.
3.4

Grounding the Switch

The RG-NBS3100 has a PGND on the back panel. First connect the PGND to the grounding lug of the rack and
then connect the grounding lug to the grounding bar of the equipment room.
Precautions

Determine the sectional area of the grounding wire according to the possible maximum current, and use
cables of the good conductor.

Do not use bare wires.
