Installation Guide

Check whether power cables are already laid out and whether the requirements of electrical current are met.

Check whether related network adaption lines are already laid out.
3.3

Installing the RG-NBS3100

Precautions
During installation, note the following points:

Connect the power cables of different colors to the corresponding grounding posts.

Ensure that the interface of the power supply cable is properly connected to the power interface of the
device. The power cables must be protected using power cable retention clips after they are connected to
the device.

Do not place any articles on the RG-NBS3100 series switch.

Reserve a spacing of at least 10 cm around the chassis for good ventilation. Do not stack the devices.

The switch should be located at places free from the large power radio launch pad, radar launch pad, and
high-frequency large-current devices. If necessary, use electromagnetic shielding. For example, use
interface cables to shield cables.

100-meter network cables should be laid inside the equipment room and outdoor cabling of such cables is
prohibited. If outdoor cabling is necessary, take relevant measures for surge protection.
3.3.1

Mounting the Switch to a Standard 19-inch Rack

The RG-NBS3100 series switches follow the EIA standard dimensions and can be installed in the 19-inch rack.
Step 1: Attach the mounting brackets to the switch with the supplied screws, as shown in Figure 3-1 and Figure
3-2.

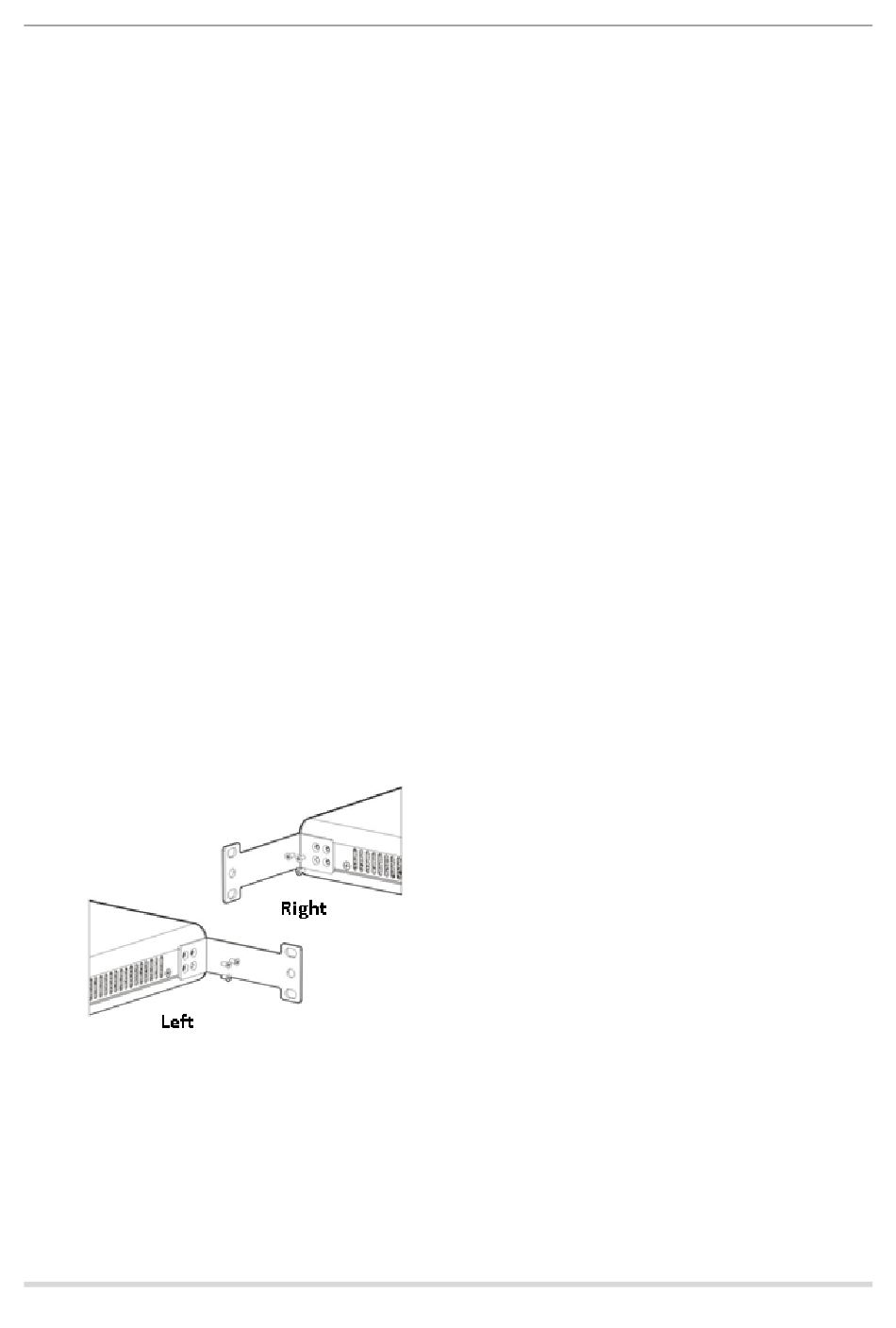

Figure 3-1 Attaching the Mounting Bracket to the 8-Port Switch
Figure 3-2 Attaching the Mounting Bracket to the 24-Port Switch
13
Product Installation
