Fi-6770/Fi-6770A/Fi-6750S (Flatbed Type) - Fujitsu FI-6750S Operator's Manual

Chapter 1 Scanner Overview

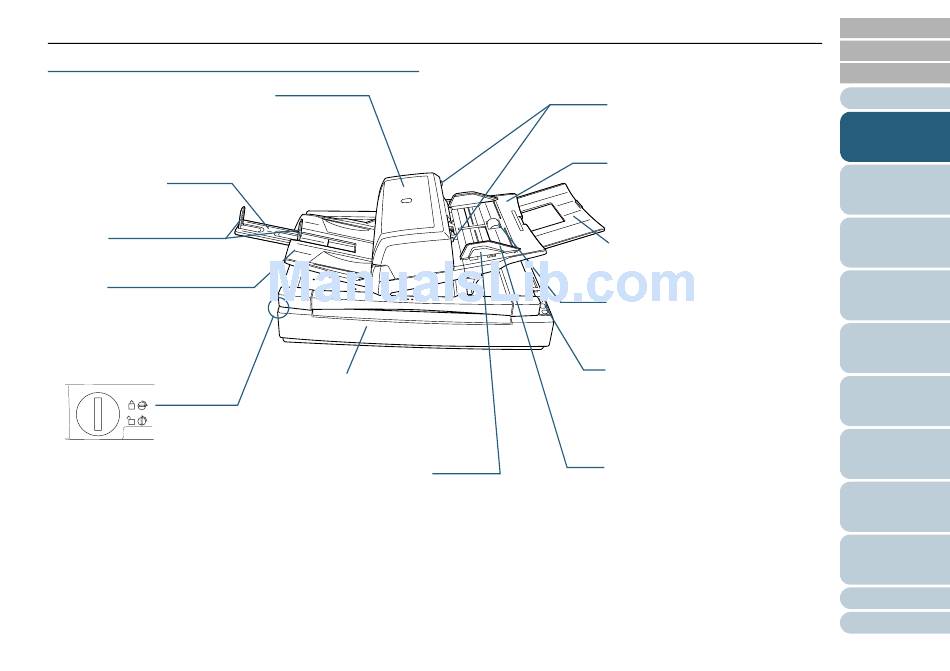

fi-6770/fi-6770A/fi-6750S (Flatbed Type)

ADF (Automatic Document Feeder)
Feeds documents to the scanning position automatically.
Documents are fed sheet by sheet when loaded for batch
scanning. The fi-6770/fi-6770A can scan both sides of
documents at one time.
Stacker Extension
Pull out the extension according to
the document length.
Stopper
Raise it if the documents
loaded are long.
Stacker
Scanned documents are ejected
from the ADF onto this stacker.
You can adjust the height of the
stacker at lower or upper position. Is
removable.
Transport Lock
Locks the carrier unit inside the Flatbed during
transportation.
Use a coin or similar to unlock it.
Turn the slot to a vertical position to release the
lock; to a horizontal position to lock it.
Flatbed
Place them on the glass sheet by sheet
for manual scanning.
Allows for scanning thick documents
such as books.
Side Guide Button
Adjusts the position of the Side
Guide when kept pressed. Locks the
Side Guide at the position when this
button is released.
ADF Open Button
Opens the ADF. Push the buttons in
to open the ADF.
ADF Paper Chute
Holds in place the document
pages/sheets that are to be fed into
the ADF. Load them with their face
down.
Paper Chute Extension
Extended when scanning long
documents.
Chute Roller Cover
A cover to prevent your finger(s)
from being caught by the Chute
Roller.
Operator Panel
Used to operate the scanner and
monitor the status.
Comprises a Function Number
Display, operating push buttons,
and LEDs.
Side Guide
Prevents documents from being
skewed during feeding. Adjust the
guide to the width of the documents
loaded.
