Installing the Switch 5300xl Series
Installation Procedures
4.
install and tighten the
other 12-24 screws

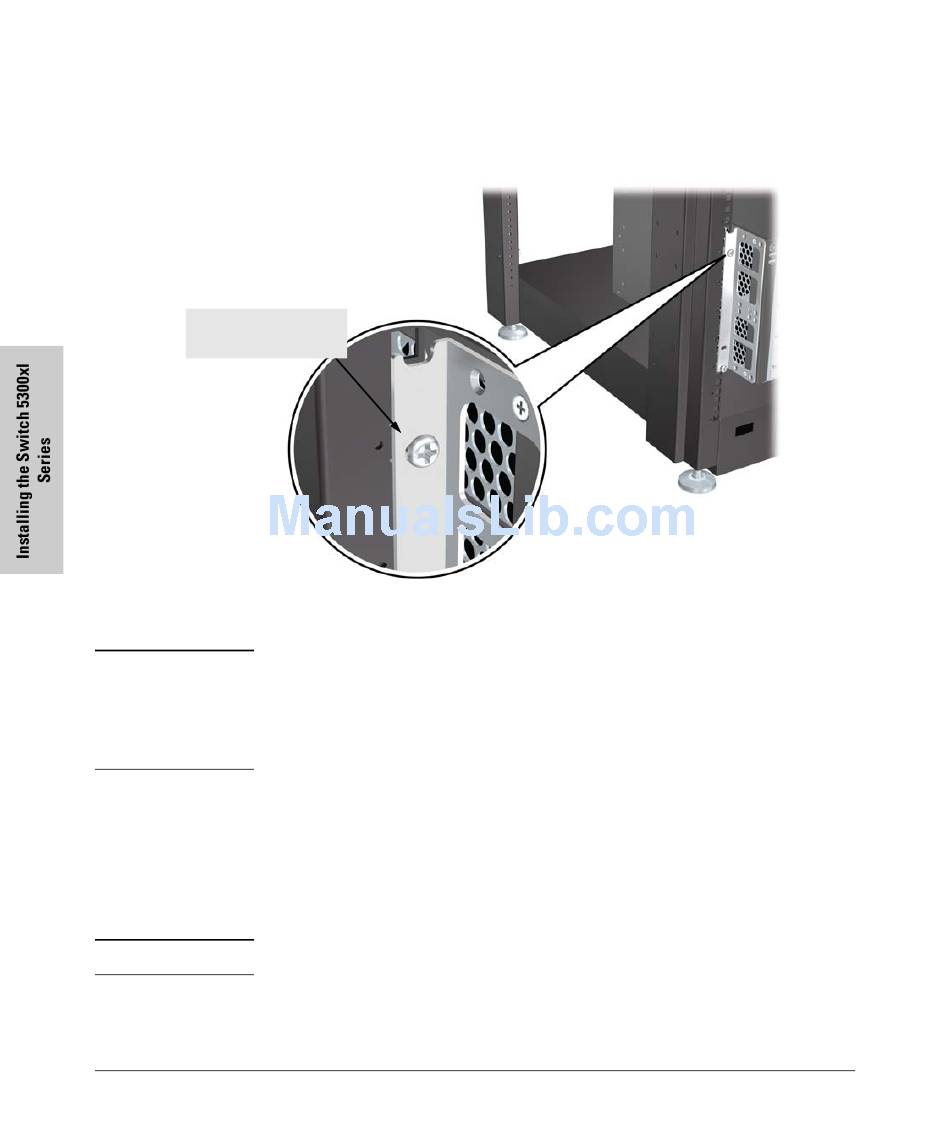

Figure 2-10. Installing the final rack mounting screw
E q u i p m e n t
If you are installing the switch in an equipment cabinet, in place of the
C a b i n e t
12-24 screws supplied with the switch, use the clips and screws that came with
N o t e
the cabinet. Plan which four holes you will be using in the cabinet and install
all four clips and partially install the two bottom screws, as described in step
2 on the previous page, before proceeding to step 3.

Horizontal Surface Mounting

Place the switch on a table or other horizontal surface. Use a sturdy surface
in an uncluttered area. You may want to secure the networking cables and
switch power cord to the table legs or other part of the surface structure to
help prevent people from tripping over the cords.
N o t e
Ensure the air flow is not restricted around the sides and back of the switch.
2-16
Install the other number 12-24 screw into the upper hole in each bracket.
Tighten these screws.
