9-6-4. Adding NCW-3DHIP to the controller project

Add the NCW-3DHIP to the controller project as an I/O device.
There are two ways to add NCW-3DHIP as described below.
①In case EDS file is installed (refer to section 9-6-4-1)
②In case EDS file isn't installed (refer to section 9-6-4-2)

9-6-4-1. In case EDS file is installed

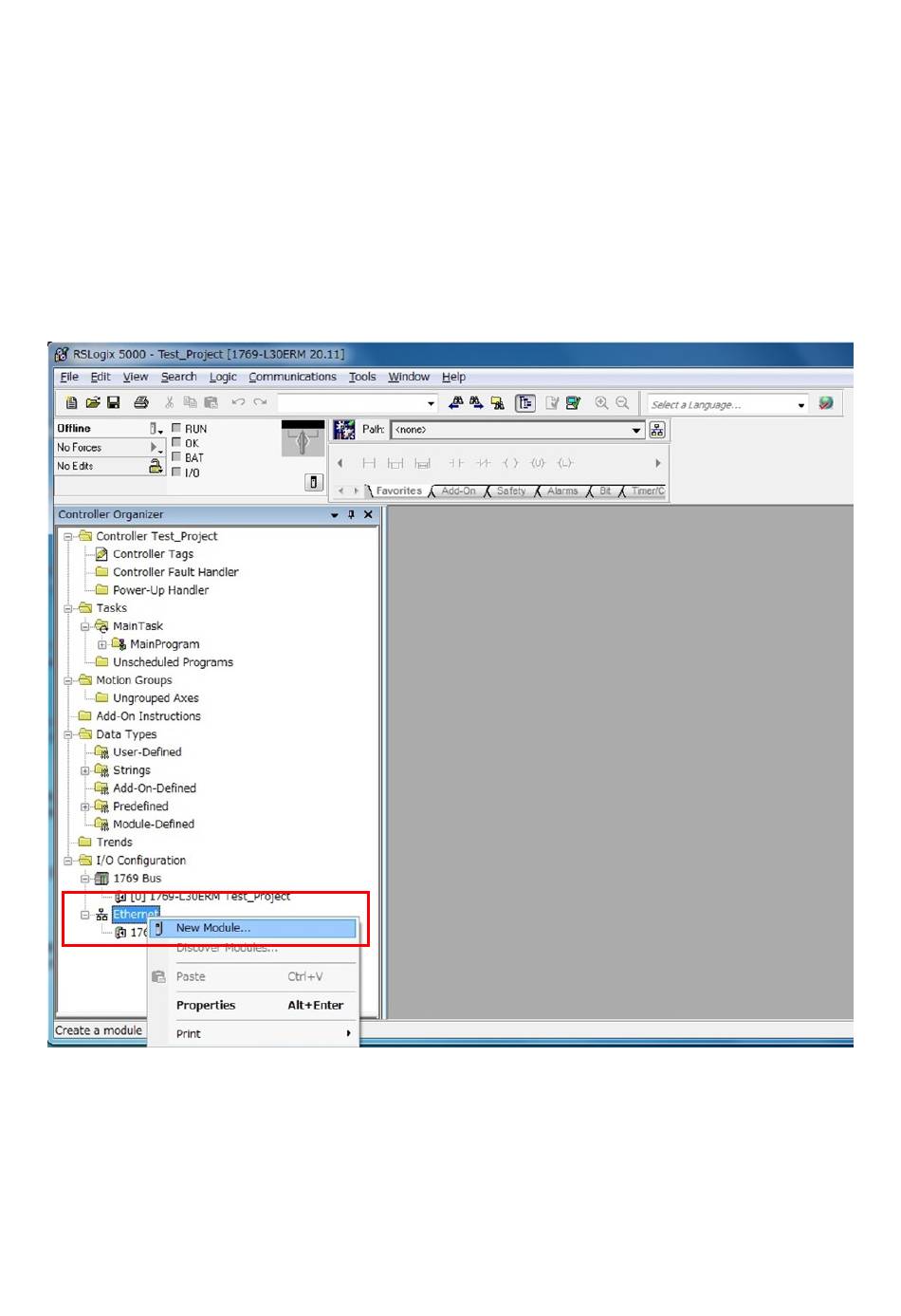

(1) Right-click the "Ethernet" in the I/O Configuration folder, and choose "New Module".
57
