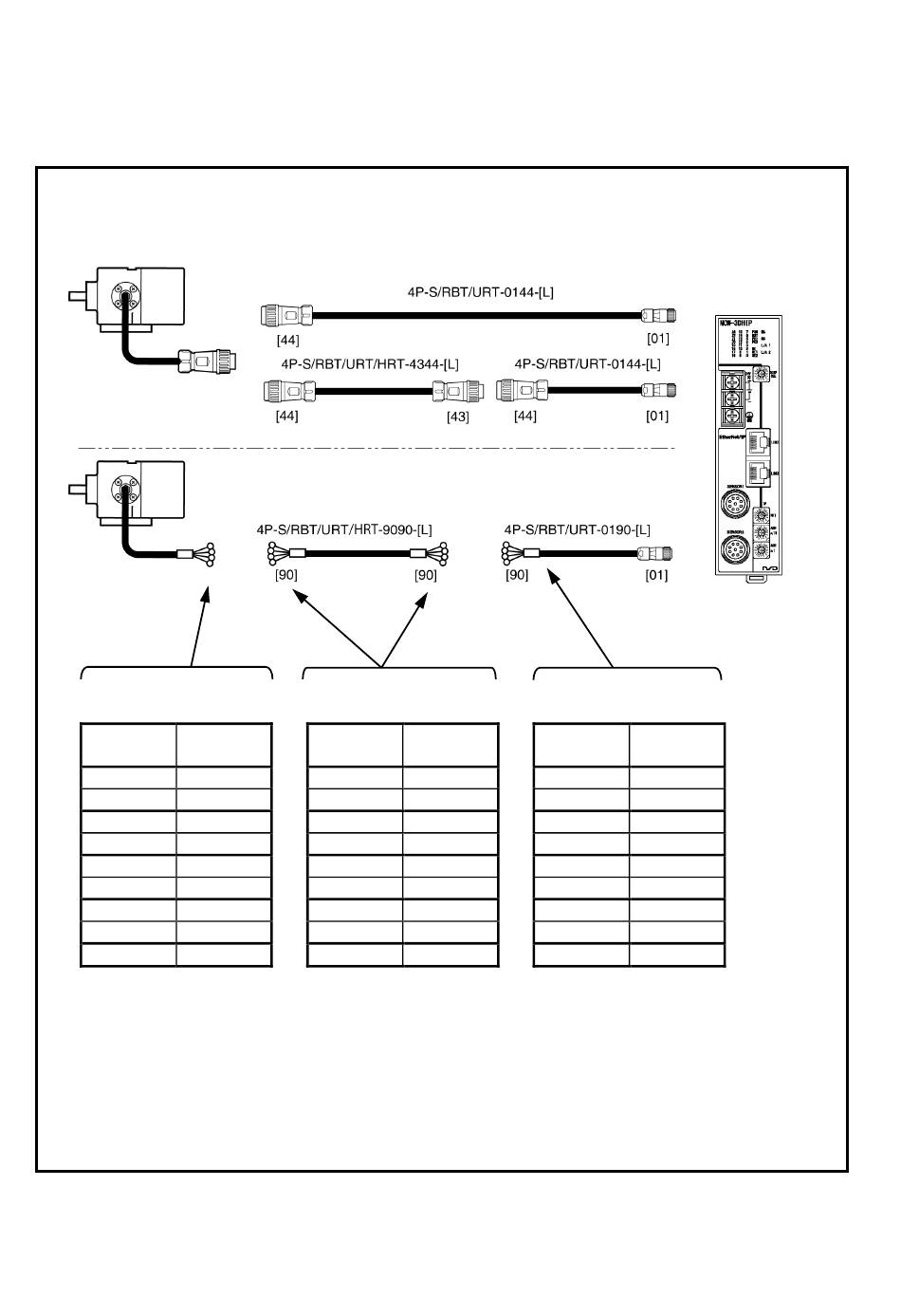

7-1-1. Connection configure example of the sensor cable

● In the case of using the NSD special cable
ABSOCODER sensor
Crimping
terminal
(R1.25-4)
ABSOCODER sensor
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
Orange
－COS＋
Yellow
－COS－
Green OUT1＋
Blue OUT1－
Violet OUT2＋
Gray OUT2－
Shield Shield
Cautions for the connection by the crimping terminal
1: Twist the signal wire for preventing noises.
Combinations of the twist are following:
SIN＋ and SIN－, －COS＋ and －COS－, OUT1＋ and OUT1－, OUT2＋ and OUT2－
2: The shield wire shouldn't be grounded.
Extension sensor cable
Crimping
terminal
Crimping
(R1.25-4)
(R1.25-4)
NSD special cable
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
Orange
－COS＋
Yellow
－COS－
Green OUT1＋
Blue OUT1－
Violet OUT2＋
Gray OUT2－
Shield Shield
24
terminal
NSD special cable
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
Orange
－COS＋
Yellow
－COS－
Green OUT1＋
Blue OUT1－
Violet OUT2＋
Gray OUT2－
Shield Shield
Converter
