8. NOMENCLATURE

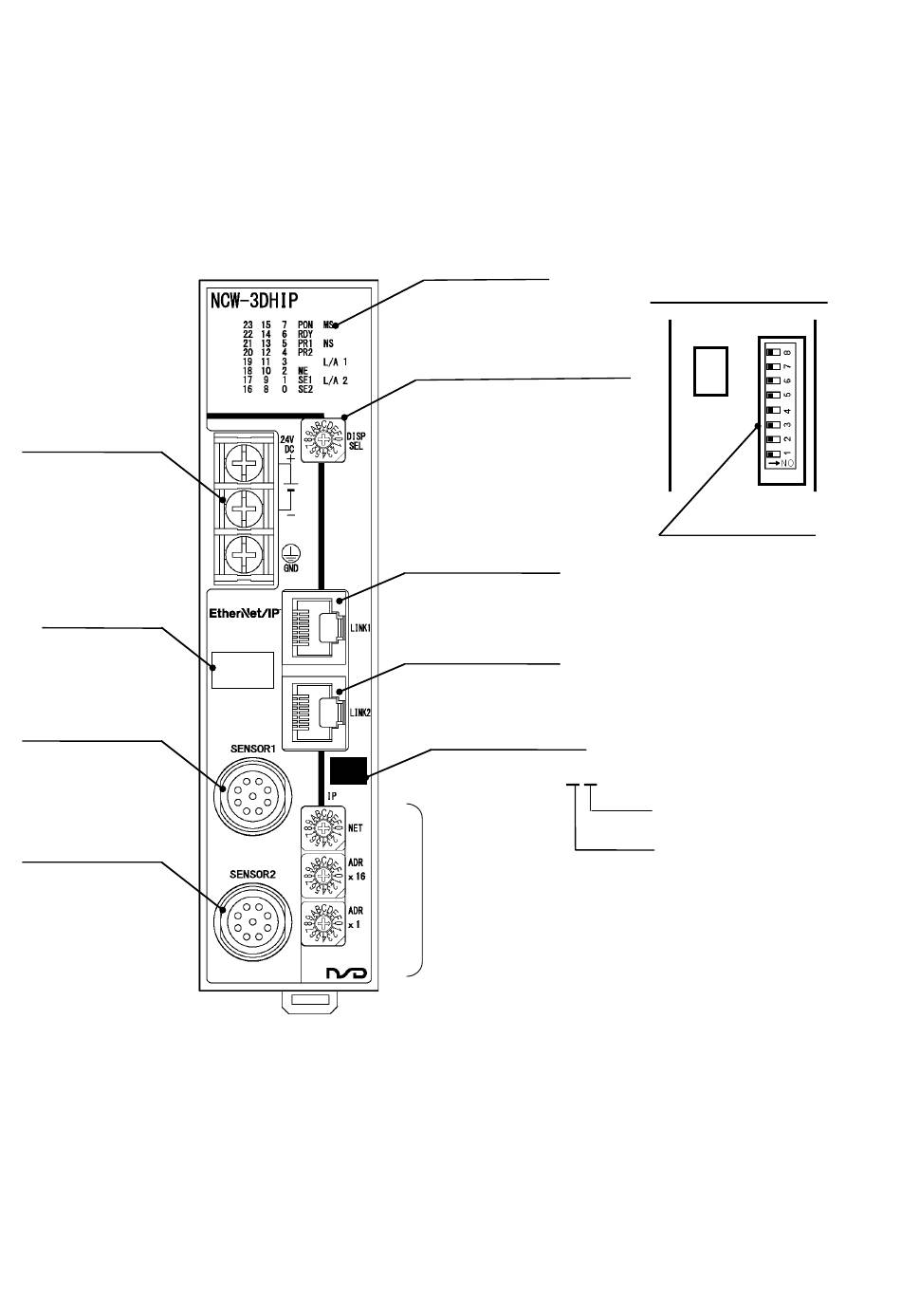

8-1. Part Identification

Power terminal block
(M4 screw)
MAC address
Axis-1 sensor connector
Axis-2 sensor connector
E8:8E:60
xx:xx:xx
A C
Monitor LEDs
Selection switch of the Monitor LED
display contents
Ethernet port 1 (LINK1)
(RJ45)
Ethernet port 2 (LINK2)
(RJ45)
Product version seal
A C
Example:
IP address
setting switch
28
Rear panel of converter
Communication
setting switch
Software version
Hardware version
