Implementation Results
4.1.2.3 Data Rate Configuration

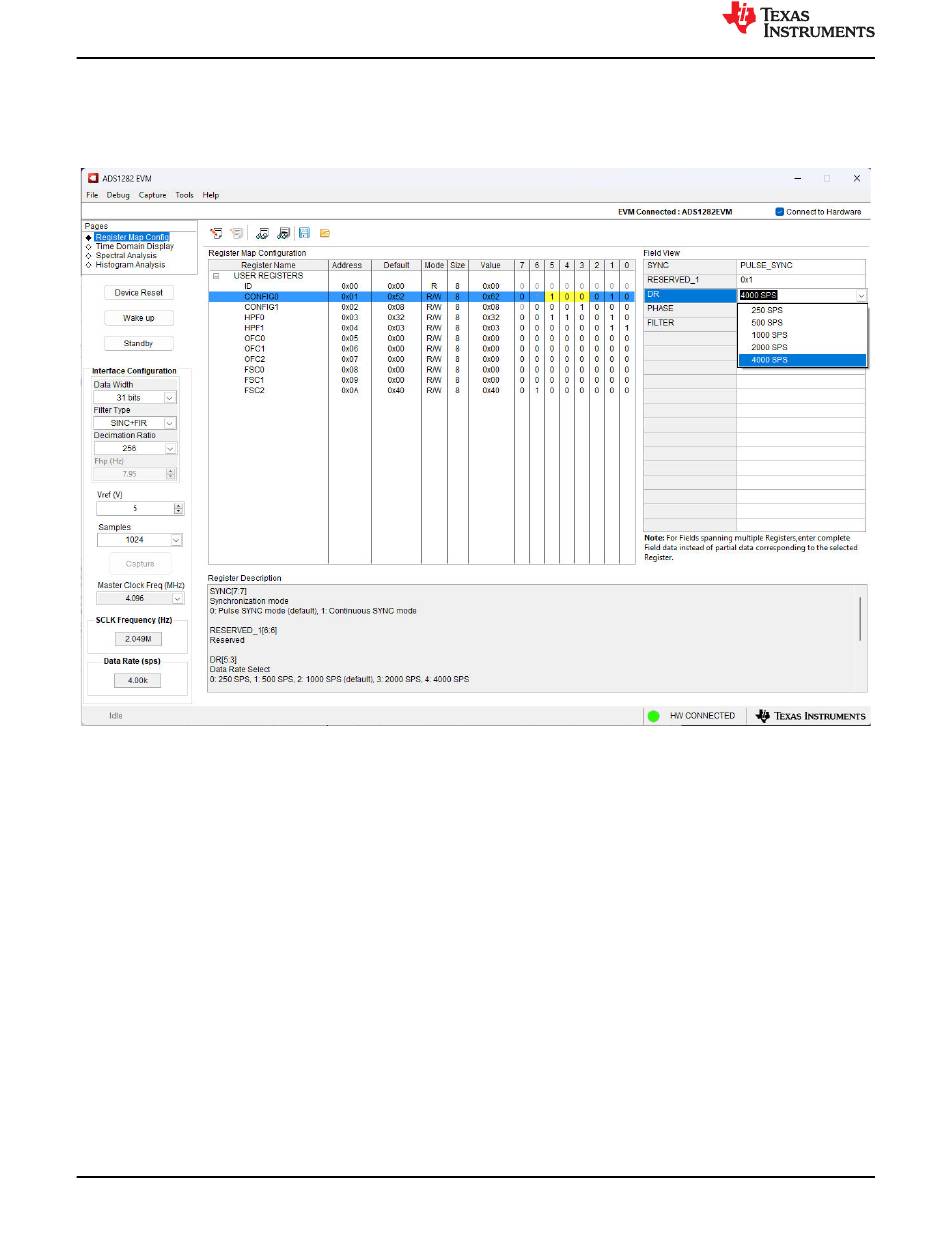

Figure 4-6
shows how to select the data output rate of the ADS1282. The device supports data output speeds of
up to 400 samples per second. Other options available are 250 SPS, 500 SPS, 1000 SPS, 2000 SPS, and 4000
SPS.
18
ADS1282EVM-PDK Evaluation Module
Figure 4-6. Data Rate Configuration
Copyright © 2024 Texas Instruments Incorporated
www.ti.com
SBAU431 – JULY 2024
Submit Document Feedback
