Implementation Results
4.1.2.1 Channel Configuration

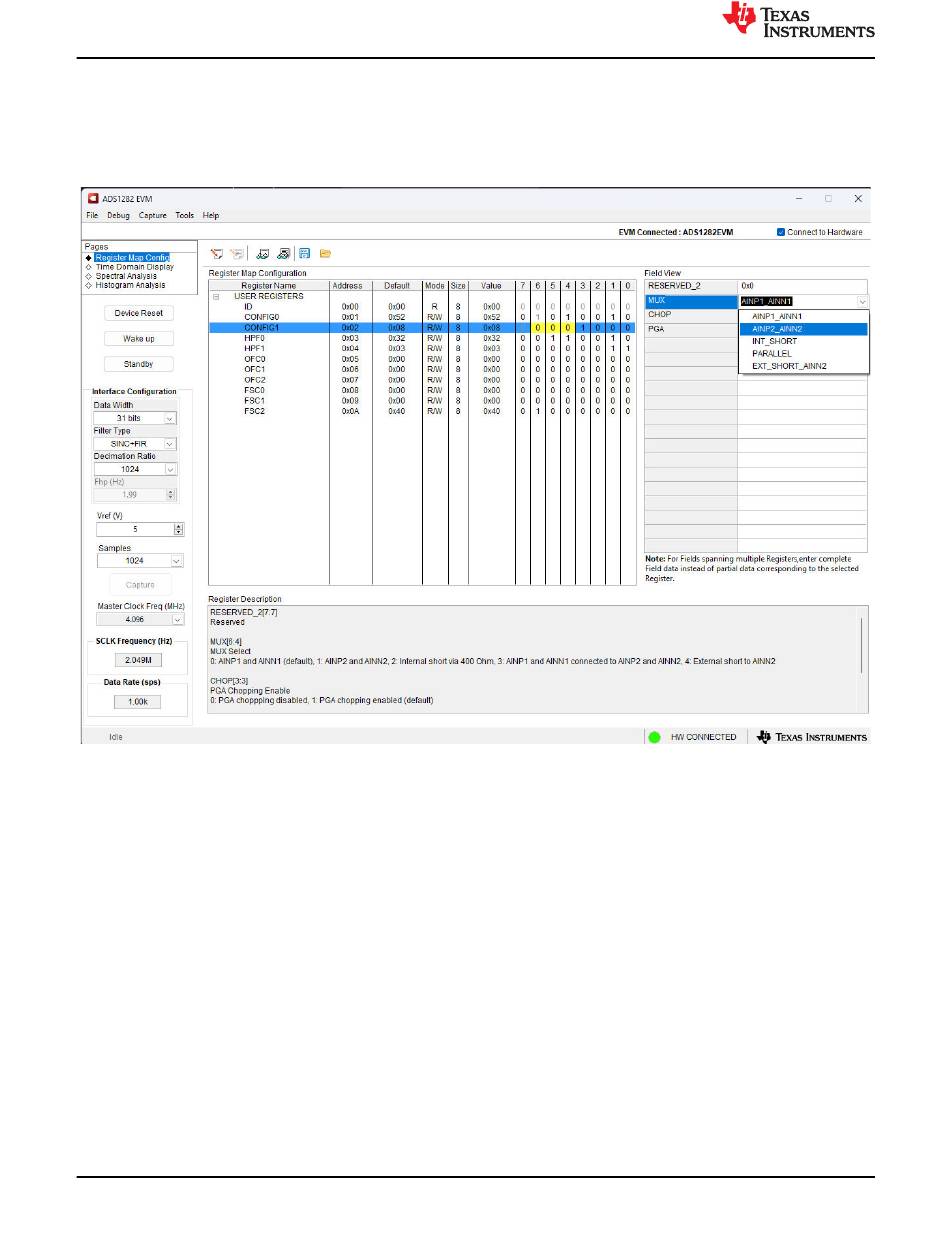

Figure 4-4
shows how the MUX field of the CONFIG1 register can be used to switch between channels
1 and 2. Options available for this field are AINP1_AINN1, AINP1_AINN2, INT_SHORT, PARALLEL, and
EXT_SHORT_AINN2. The Register Description section at the bottom of the Register Map Config page describes
each option.
16
ADS1282EVM-PDK Evaluation Module
Figure 4-4. Channel Selection
Copyright © 2024 Texas Instruments Incorporated
www.ti.com
SBAU431 – JULY 2024
