3.3 Individuation of Parts

VFD replaceable parts are shown in the picture below (Fig. 4).
Dwg Ref
1
2
3
4
5
6
Daikin Applied Europe S.p.A
SERVICE and INSTALLATION MANUAL
Compressor Inverter PE-ADDA200

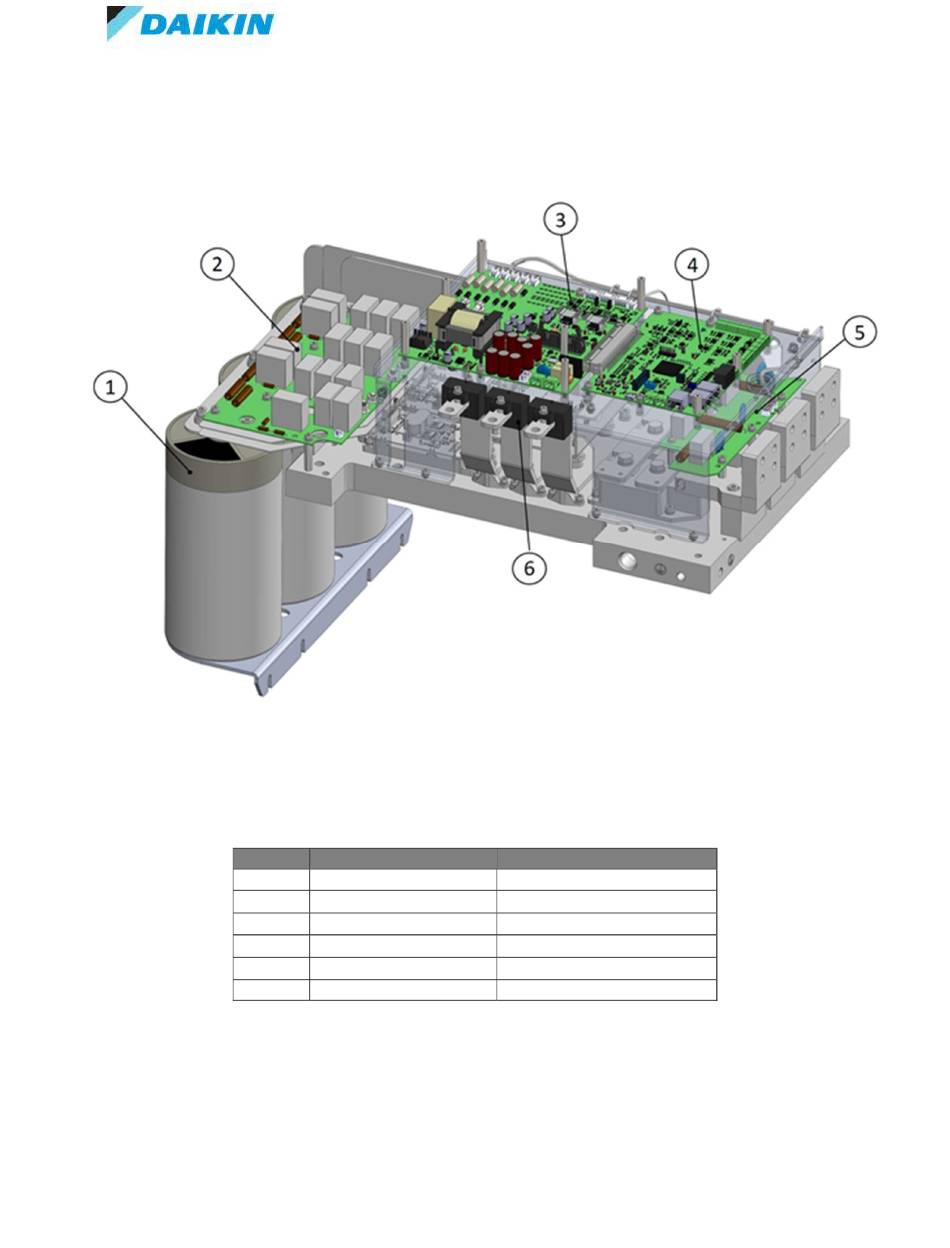

Fig. 4 VFD replaceable parts highlighted
Tab. 1VFD replaceable parts
Part No. (PE-ADDA200)
PE-006E2000-900FT0
PE-2FLT004_00XC
PE-2PWR001_00EC
PE-2REG002_00AC
PE-2FLT005_01AC
PE-006FV0400T01
Page 9 of 51
Description
Capacitor Bank
DC-BUS Filter Card
Power Card
Regulation Card
Line Filter Card
Current Transducer (CT)
Rev. 0.3
