SERVICE and INSTALLATION MANUAL
Compressor Inverter PE-ADDA200

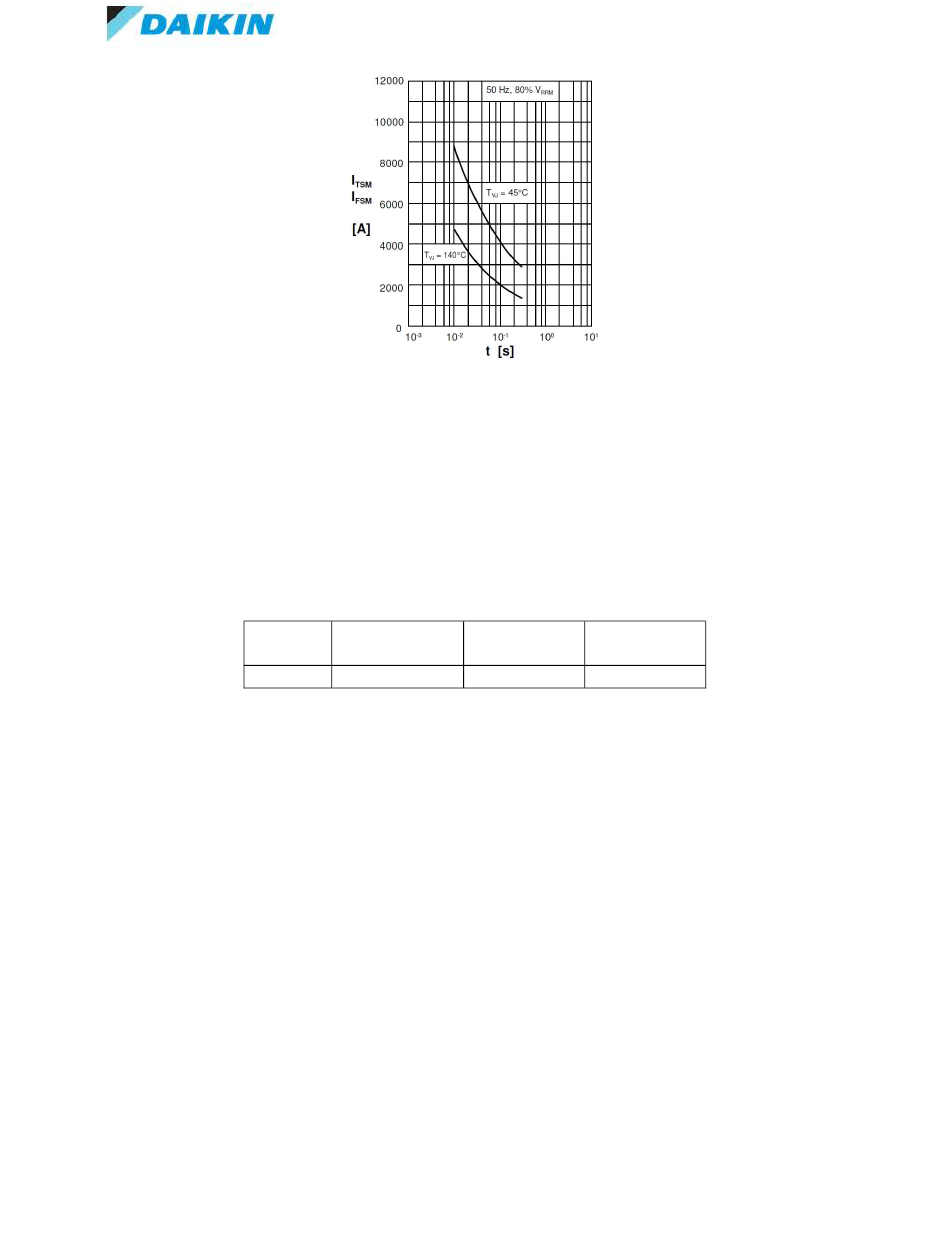

Fig. 8 Surge overload current of the rectifier power modules
Interrupting Capacity: the interrupting (or breaking) capacity must be greater than the prospective symmetrical
short circuit current. This requirement is typically easily met.
7.1.4
Line reactor
The inverter must be supplied through a suitable three-phase reactor.
Tab. 3 summarizes its main characteristics:
Tab. 3 Main characteristics of the three-phase line reactor
Inverter
Nominal
Rated Current
DAE Code
Size
Inductance (µH)
(Arms)
200 kW
59
420A
...
Page 17 of 51
