SERVICE and INSTALLATION MANUAL
Compressor Inverter PE-ADDA200
9.1.1
Physical connection
To connect the PC with the inverter it is necessary to use the USB to RS485 converter kit (DAE cod.: PE-1KIT0013).

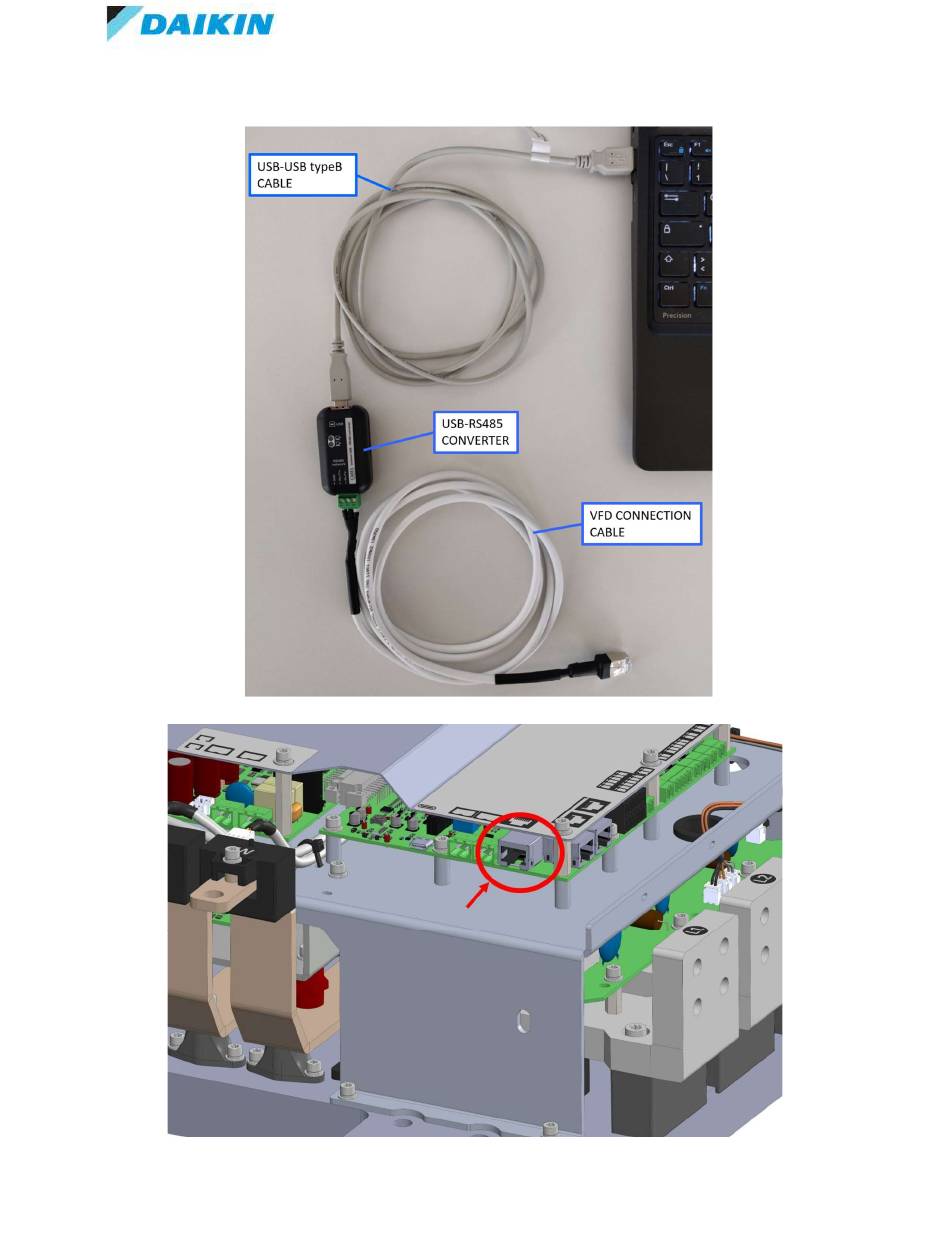

Fig. 15 PC connection kit PE-1KIT0013
Fig. 16 RJ45 connector for wiring PE-1KIT0013 to VFD
