6 INSTALLATION ON THE COMPRESSOR

6.1 Mounting

1. Mount the connection bars to the compressor using the M10x45 screws and the lock washers without
tightening them.
2. Fix the inverter output bars with the compressor connection bars using the M8x25 screws+split and flat
washers and tighten them at 25 Nm as shown in Fig. 5
3. Fasten the M10x45 screws connecting to the compressor at 45 Nm.
Daikin Applied Europe S.p.A
SERVICE and INSTALLATION MANUAL
Compressor Inverter PE-ADDA200

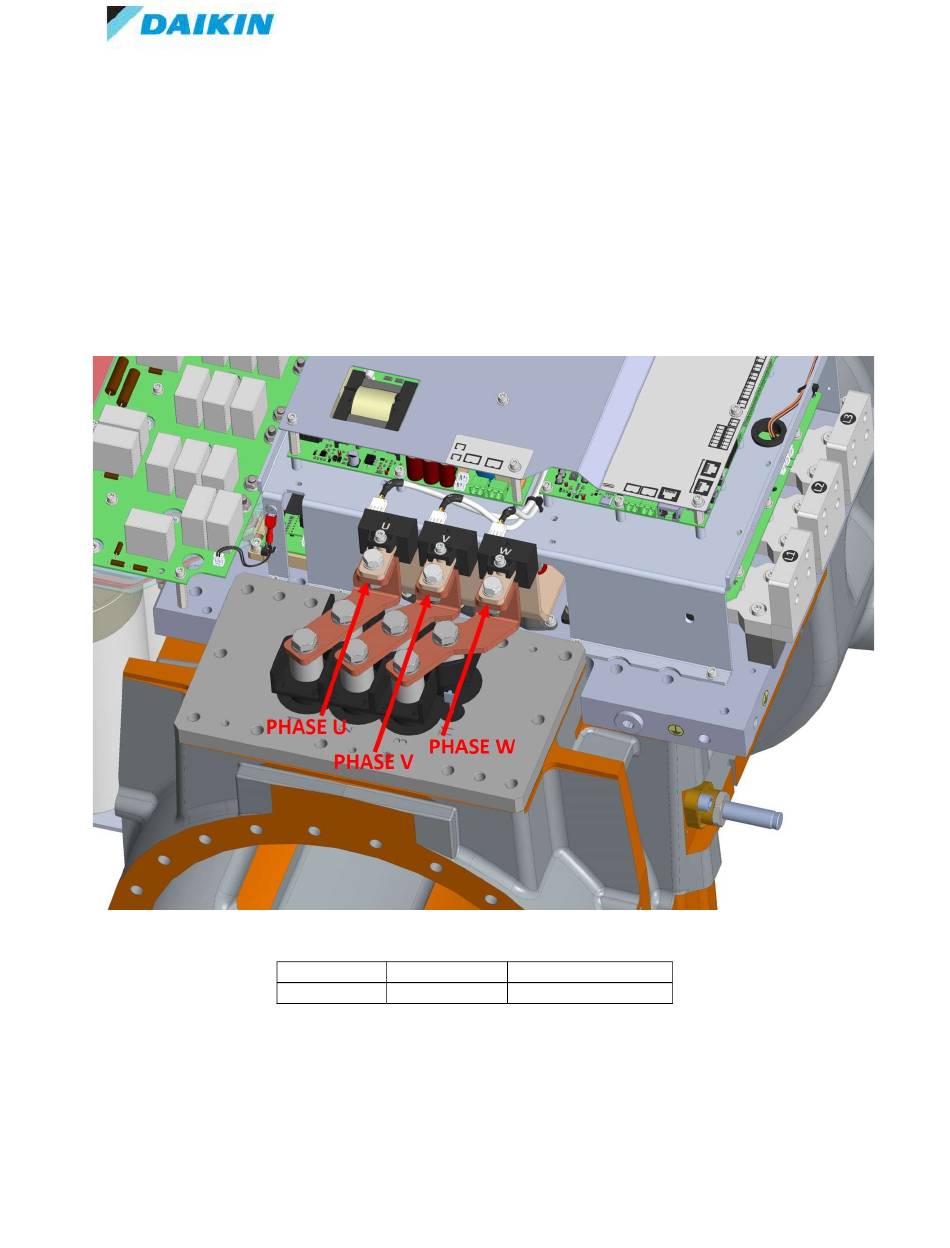

Fig. 5 Output terminal connections and current transducers
Connection Screw size
Inverter Output M8x25
Page 13 of 51
Tightening Torque (Nm)
25
