9.1.6

Connect/disconnect communication

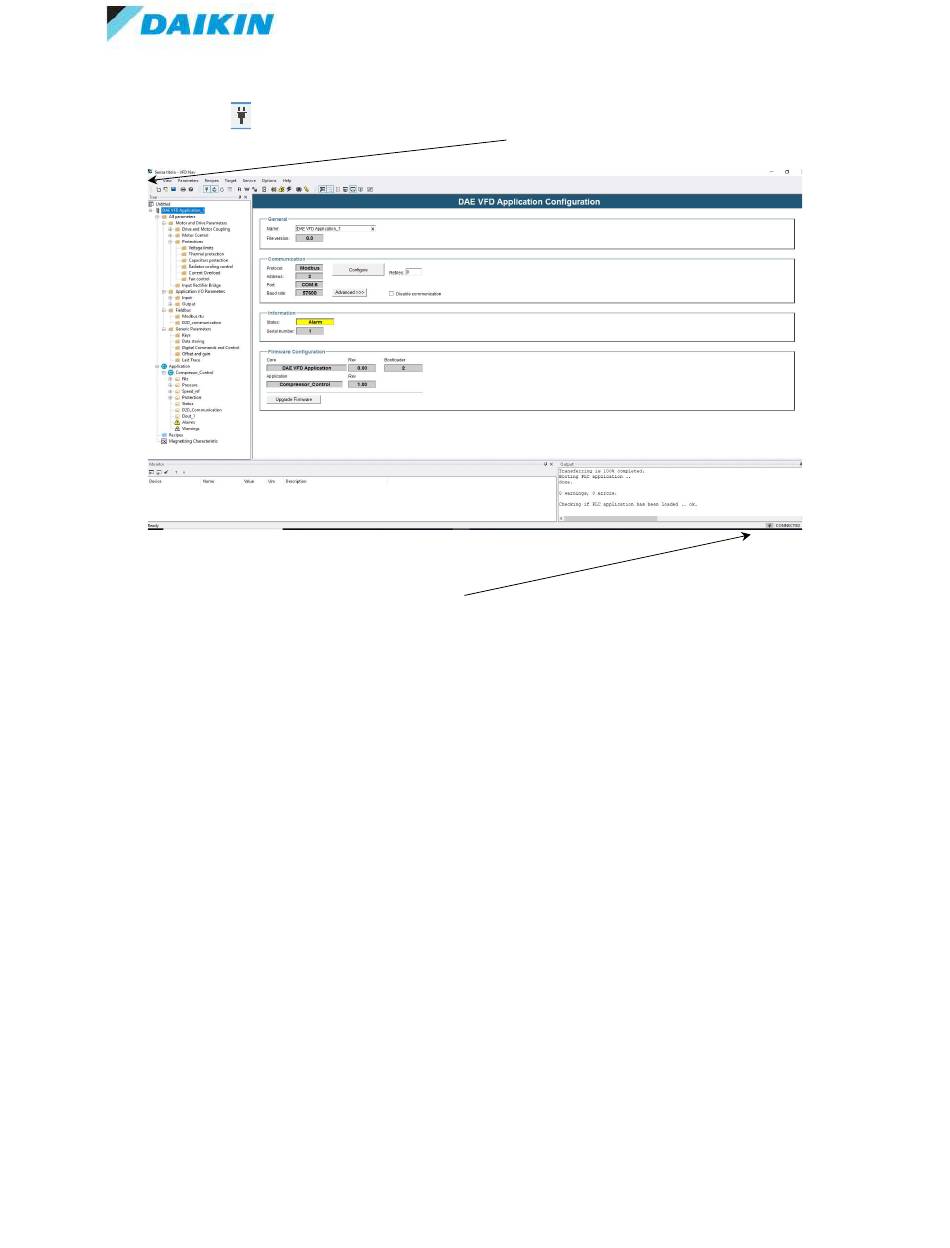

Click on the button
in the toolbar to connect/disconnect communication
The connection status is shown in the bottom right
9.1.7

View instrument

There are two different ways to show the parameters value in continuity:
Toolbar: View/Monitor
It is possible to drag and drop as many parameters the user wants in the Monitor window. The parameters value
will be displayed in digital way.
Toolbar: View/Graph
It is possible to drag and drop as many parameters the user wants in the Graph window. Trace of parameters
value are shown.
Daikin Applied Europe S.p.A
SERVICE and INSTALLATION MANUAL
Compressor Inverter PE-ADDA200
Fig. 26
Page 36 of 51
Rev. 0.3
