Chapter 1 Product Overview

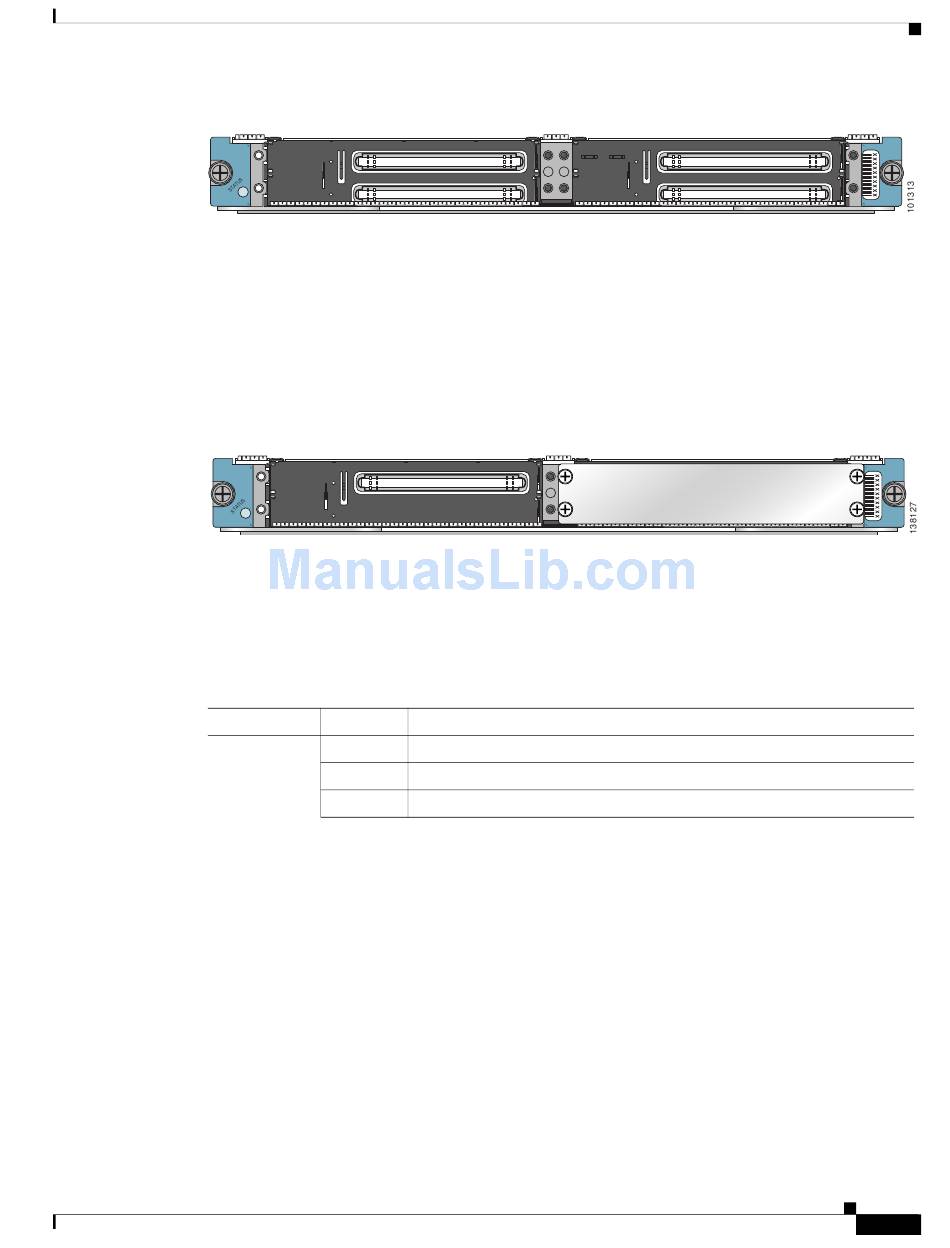

Figure 1-29 7600-SIP-400
7600-SIP-400
SPA INTERFACE
PROCESSOR

7600-SIP-600

The 7600-SIP-600
processor that function as a carrier card for SPAs. For more information, see the Cisco 7600 Series
Router SIP and SPA Hardware Installation Guide.
Figure 1-30 7600-SIP-600
7600-SIP-600
SPA INTERFACE
PROCESSOR

SIP LED Descriptions

The front-panel LED for the SIPs are described in
Table 1-19
LED
STATUS

Ethernet Services 20G Line Cards

The Cisco 7600 Series Ethernet Services 20G (ES20) line cards are a multiple-fabric, fixed-port Ethernet
line card for the Cisco 7600 series routers that are capable of 20 Gbps of traffic forwarding using a fixed
port interface design. The two versions of the Cisco 7600 Series Ethernet Services 20G line card are:
•
•
The difference between the two versions are the link interface daughter cards that accept small
form-factor pluggable (SFP or XFP) optical transceivers. Additionally, each of the two versions has a
packet engine daughter card and a control processor daughter card.
OL-5077-7
(Figure 1-30) is a high-performance, feature-rich shared port adapter (SPA) interface
SIP LED Descriptions
Color Description
Red The SIP has encountered an error.
Green The SIP is online.
Yellow The SIP is loading.
2-port version: 7600-ES20-10G
20-port version: 7600-ES20-GE
Ethernet Services 20G Line Cards
Table 1-19.
