Appendix C Upgrading the Memory on the OSM
R E V I E W D R A F T — C I S C O C O N F I D E N T I A L

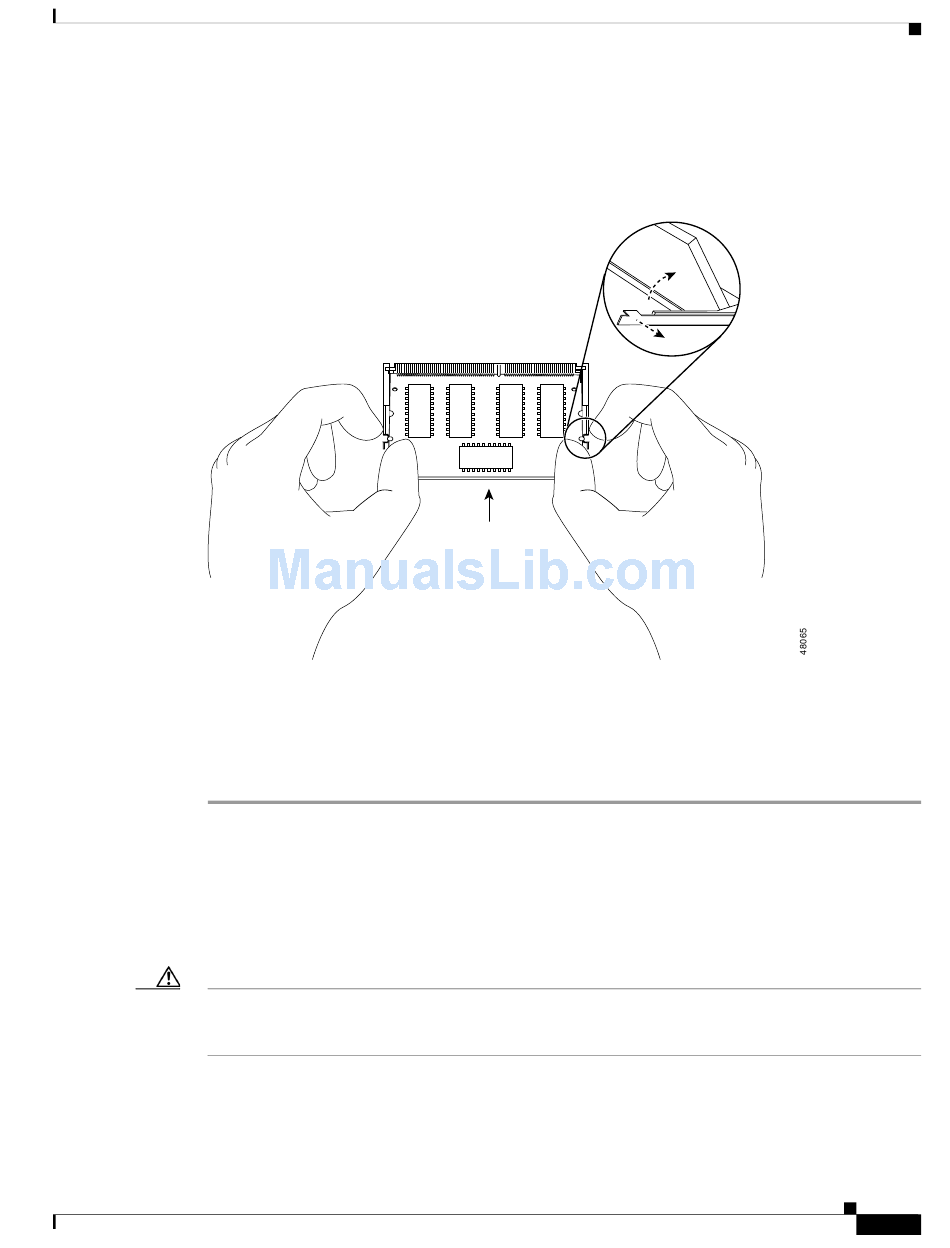

Figure C-2 Releasing the SODIMM Spring Clips
When both ends of the SODIMM are released from the socket, grasp the ends of the SODIMM with your
Step 6
thumb and forefinger and pull the SODIMM completely out of the socket. Handle the edges of the
SODIMM only; avoid touching the memory modules, pins, or traces (the metal fingers along the
connector edge of the SODIMM) along the connector edge.
Step 7 Place the SODIMM in an antistatic container to protect it from ESD damage.
This completes the SODIMM removal procedure. Proceed to the next section to install the new
SODIMM.

Installing the New SODIMM

Caution SODIMMs are sensitive components that are susceptible to ESD damage. Handle SODIMMs by the
edges only; avoid touching the memory modules, pins, or traces (the metal fingers along the connector
edge of the SODIMM). (See
OL-5077-7
Pull the tabs away with
your thumbs, bracing your
forefingers against the
rails. The memory module
will pop loose. Then raise the
memory module to a
vertical position.
Memory module
Figure C-3.)
Upgrading the OSM Memory
Book Title
C-5
