9-5. Configure the EtherNet/IP Driver

Configures an Ethernet communication driver by using RSLinx Classic.
Configure the EtherNet/IP Driver to the programming terminal (Windows PC) in order to set the network between
the controller (1769-L30ERM/A CompactLogix5330ERM) and NCW-3DNIP.

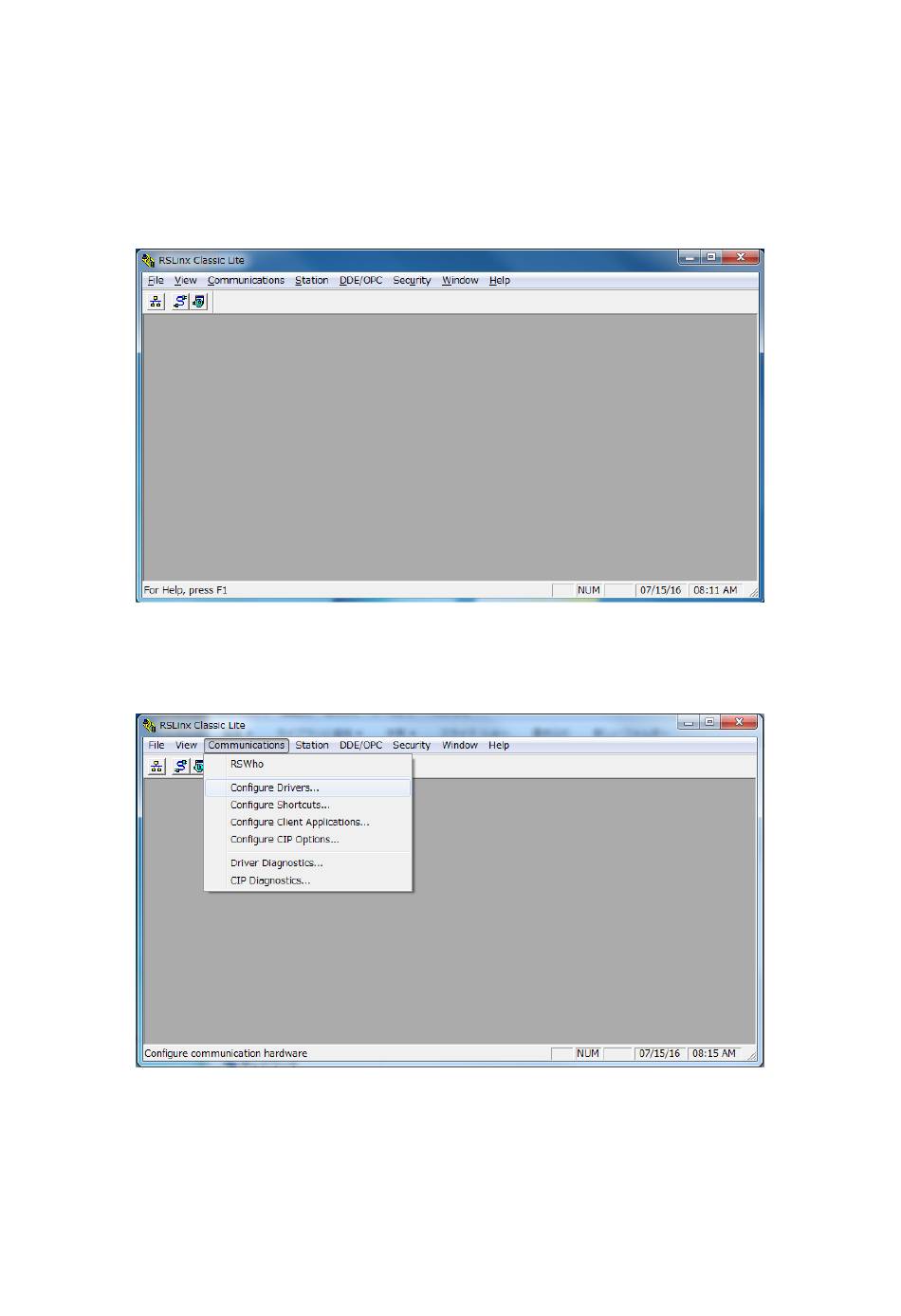

(1) Start the RSLinx Classic Software.
(2) Configure Communication Drivers
From the "Communications" menu, choose "Configure Drivers".
35
