NSD ABSOCODER NCW-3DNIPMP Specifications & Instruction Manual page 23

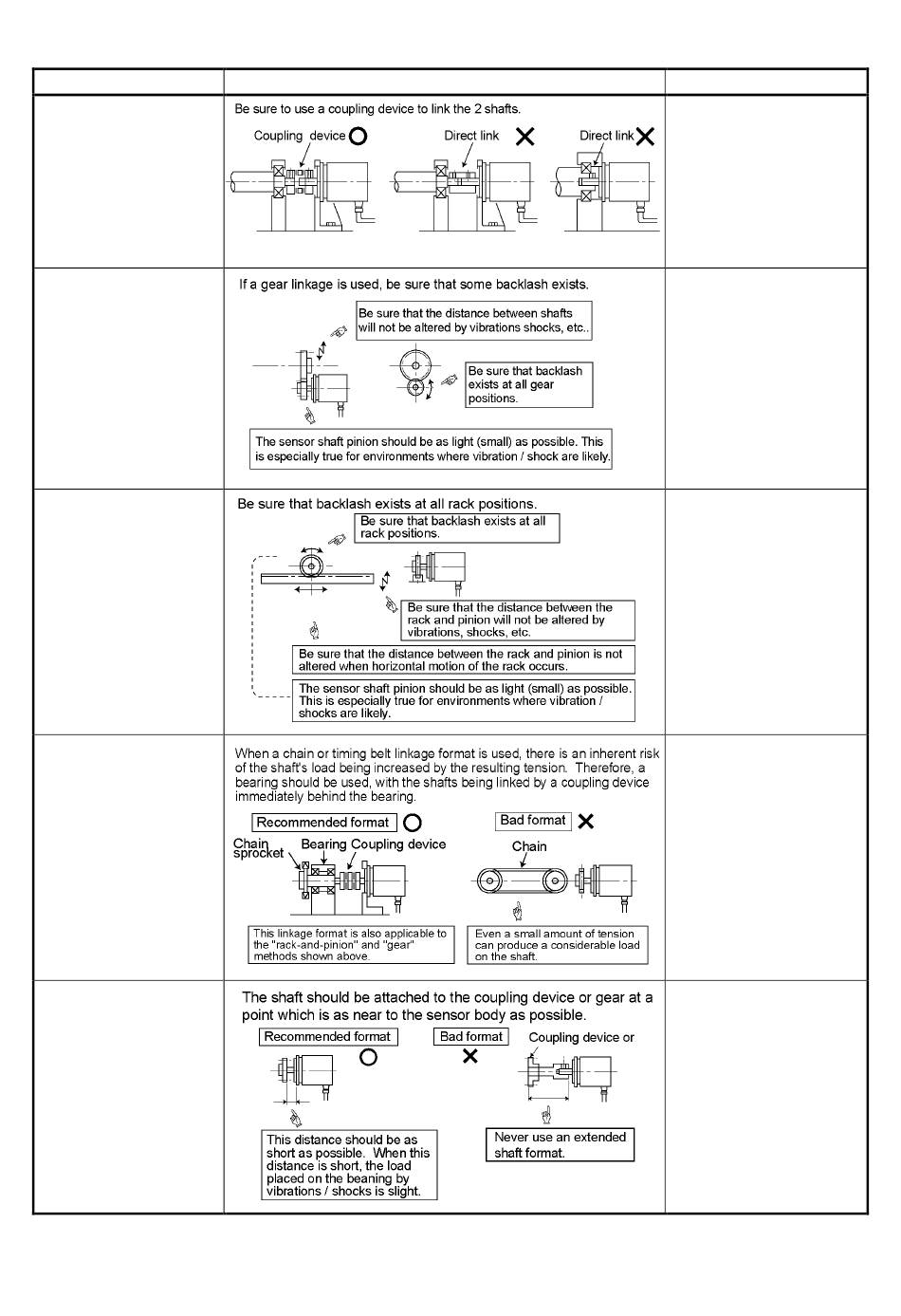

● Mounting of Turn-type ABSOCODER Sensor
Item
(1) Coupling of machine
shaft and sensor
shaft
(2) For gear-type linkage
(3) For rack and pinion
type linkage
(4) Chain or timing belt
linkage
(5) Shaft mounting
position
Explanation
14
Precaution
A "direct-link" format will
result in shaft fatigue
and / or breakage after
long periods.
Therefore, be sure to use a
coupling device to link the
shafts.
Incorrect gear mounting
can result in shaft bending
or breakage.
Incorrect rack and pinion
mounting can result in shaft
bending or breakage.
