2. MODEL SELECTION WHEN ORDERING

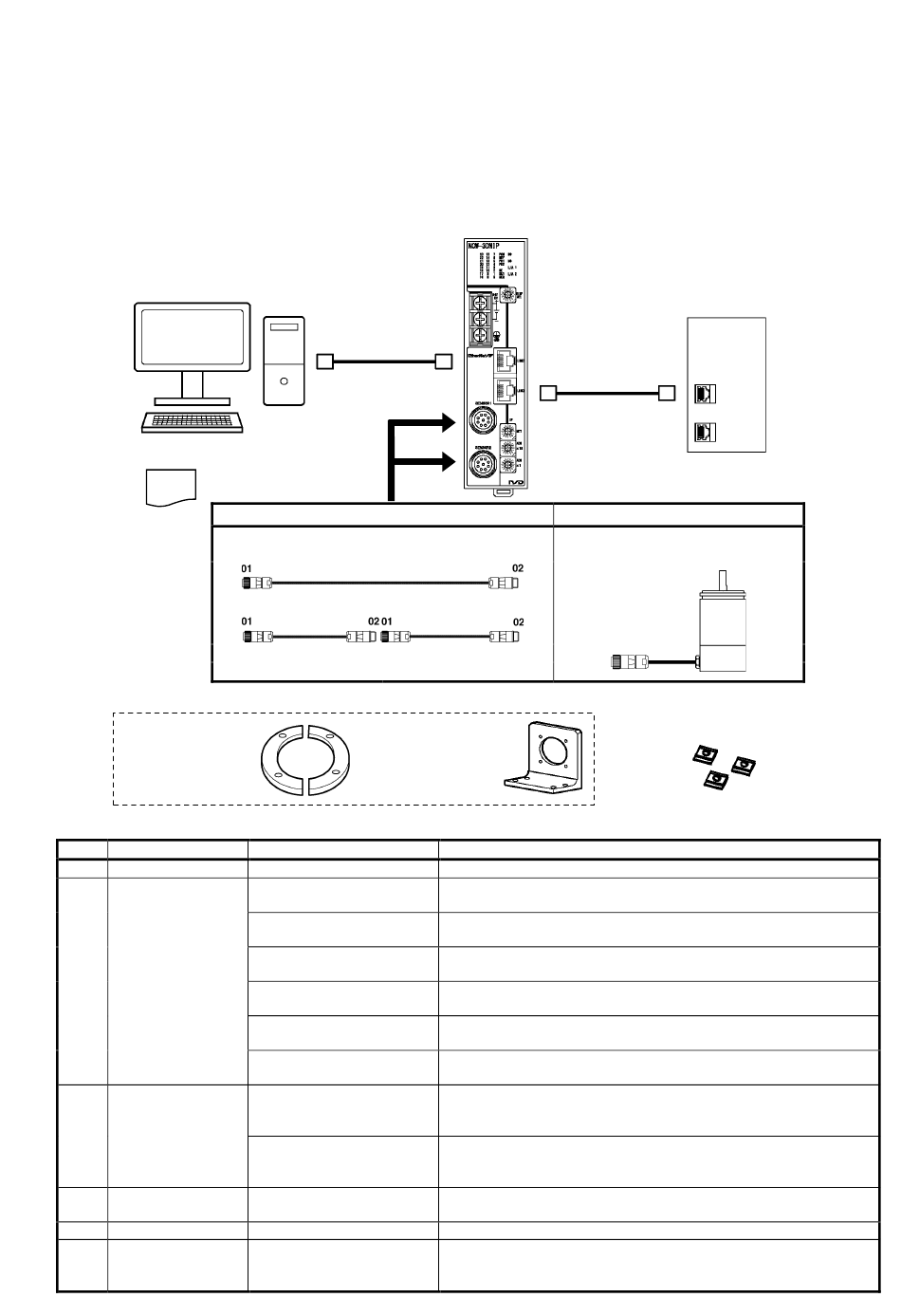

The following figure indicates the connection configuration of NCW-3DNIP.
Before ordering, refer to the connection configuration and model list. Please prepare by customer except (1) to (6) in
the connection configuration.
● Connection configuration
EtherNet/IP master
( PLC, Industrial PC )
Configuration Tool
(6) EDS File
(4) Reinforced
servo-mount
fixture
● Model List
No. Items
(1) Converter
ABSOCODER
(2)
sensor
Extension sensor
(3)
cable
Reinforced
(4)
servo-mount fixture
(5) L type flange
(6) EDS File
(3) Extension sensor cable
4P-S-0102-[L]
4P-RBT-0102-[L]
4P-S-0102-[L]
4P-RBT-0102-[L]
ABSOCODER sensor option
Models
NCW-3DNIPMP
MRE-32SP062SAC
MRE-32SP062SBC
MRE-32SP062FAC
MRE-32SP062FBC
MRE-G[ ]SP062FAC
MRE-G[ ]SP062FBC
4P-S-0102-[L]
4P-RBT-0102-[L]
SH-01
RB-01
File name:
EDS_Rev000000**_NSD_
NCW-3D_IP_********.eds
(1) NCW-3DNIP
( EtherNet/IP slave)
4P-S-0102-[L]
4P-RBT-0102-[L]
(5) L type
flange-mount
fixture
Position data binary code (17-bit)
Total number of turns: 32, Diameter:φ62,
Servo-mount type, Flat shaft shape
Total number of turns: 32, Diameter:φ62,
Servo-mount type, Key way shaft shape
Total number of turns: 32, Diameter:φ62,
Flange-mount type, Flat shaft shape
Total number of turns: 32, Diameter:φ62,
Flange-mount type, Key way shaft shape
[
] :Total number of turns: 64, 128, 160, 256, 320
Diameter:φ62, Flange-mount type, Flat shaft shape
[ ] :Total number of turns: 64, 128, 160, 256, 320
Diameter:φ62, Flange-mount type, Key way shaft shape
Standard cable
[ L ]: Cable length(m) 2, 3, 5, 8, 10, 15, 20, 25, 30, 35, 40, 45, 50
(If a cable length is 50m or more, it can be selected by each 10m.)
Robotic cable
[ L ]: Cable length(m) 2, 3, 5, 8, 10, 15, 20, 25, 30, 35, 40, 45, 50
(If a cable length is 50m or more, it can be selected by each 10m.)
Option for MRE-32SP062SAC, MRE-32SP062SBC
Option for flange-mount and reinforced servo-mount fixture
Download it from NSD website.
3
EtherNet/IP slave
(2) ABSOCODER sensor
MRE-32SP062
MRE-G[ ]SP062
( Accessory )
Servo-mount fixture
Descriptions
