●Setting Method
Assign "Relation List" of the MAC address for NCW-3DNIP to the BOOTP/DHCP server before next procedures
below.

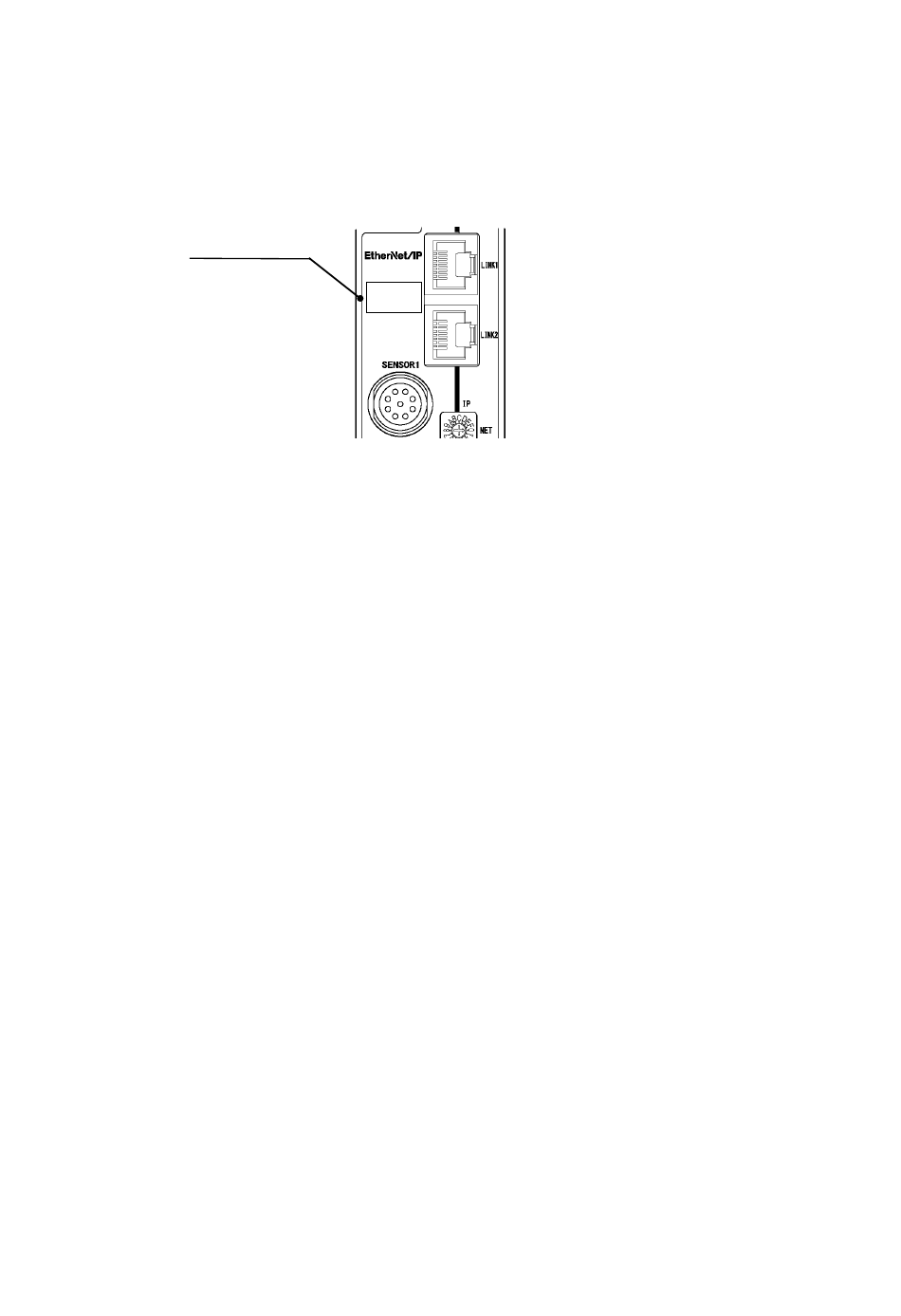

Check the MAC address on the panel side of NCW-3DNIP.
(1) Set the Host Address rotary switch to FF (255), and then supply power to NCW-3DNIP.
(2) Change the Host Address rotary switch to 00 (0), and then supply power to NCW-3DNIP once again.
(3) NCW-3DNIP sends a request to receive an IP address from the BOOTP/DHCP server.
(4) The BOOTP/DHCP server will allocate an IP address to NCW-3DNIP if it is on "Relation List" already.
The operation method of the detailed BOOTP/DHCP server is indicated from next page.
MAC address
E8:8E:60
xx:xx:xx
29
