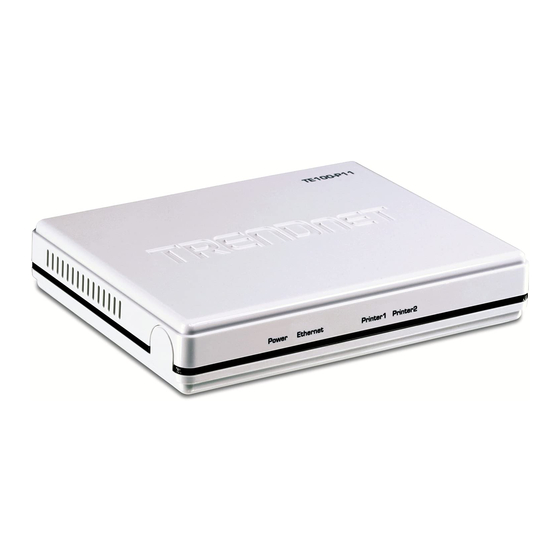

TRENDnet TE100-P11 User Manual

Hide thumbs Also See for TE100-P11:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE100-P11 and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TE100-P11

Summary of Contents for TRENDnet TE100-P11

  • Page 2: Table Of Contents

    Chapter 2 LAN Installation Procedure ........................7     Chapter 3 Print Server Configuration Overview ........................9   Using the Windows Setup Wizard ................9     Chapter 4 Client PC Configuration Overview ........................20   Windows Peer-to-peer Printing .................. 22  ...
  • Page 3   Windows 2000/2003 Server ..................88     Appendix C Unix Systems Overview ........................89   Print Server IP Address Configuration ............... 89   Other Print Server Configuration ................89   LPD Configuration ..................... 90     Appendix D NetWare Overview ........................

  • Page 4: Chapter 1 Introduction

    This chapter provides an overview of your Print Server's features. Features Congratulations on the purchase of your new Print Server. Your Print Server was designed to provide a simple and efficient network printing solution. It is packed with features, including: Wireless stations supporting the IEEE Wireless LAN Support.

  • Page 5: Safety Instructions

    4. This device should only be used with the power supply type specified on the marking label. If you are not sure of type of your local power supply, consult your dealer or the local power company.
  • Page 6 TE100-P11 • Diagnostic • 1 x USB 2.0 Printer Port • 1 Parallel Printer Port • 10/100BaseT LAN connection Page 3...
  • Page 7 TEW-P11G • Diagnostic LEDs • 1 x USB 2.0 Printer Port • 1 Parallel Printer Port • IEEE 802.11b/g Wireless Station • 10/100BaseT LAN connection Page 4...

  • Page 8: Led Indicators

    LED Indicators There are 5 LED indicators on the rear panel. The LED indicator modes are described in the following table. Description Off - No Power. Power On - Normal operation Off - No LAN connection. Ethernet On - LAN connection is available.

  • Page 9: Reset Button

    Reset Button The Print Server is fitted with a Reset Button. The button is recessed; a pin or paper clip can be used to press it. This button has 2 functions: • Restore the factory default settings • Print a test page containing all current settings.

  • Page 10: Chapter 2 Lan Installation

    Ensure the power is OFF. Do not connect the Print Server while power is On. • Find the Default Server Name for your Print Server. The Default Server Name is shown on the back of the unit sticker. The format is TNXXXXX. The XXXXX indicates the last 5 digits of your MAC address.

  • Page 11: Check The Leds

    4. Power Up Plug in the power adapter cable and power up. Start-up will take only a few seconds. Use only the Power Supply unit provided with the device. Power Supply units for different models are not interchangeable. 5. Check the LEDs •...

  • Page 12: Chapter 3 Print Server Configuration

    This is recommended that using this Setup Wizard to configure the Print Server and printer. The default IP address is set as DHCP. If you do not have DHCP Server enable, the back up IP for print server is 192.168.10.40.
  • Page 13 2. On the first screen, shown below, click Install Utility and in the sub-menu click on Setup Wizard. 3. Click Next on the main screen of the Wizard, to view a list of Print Servers on your LAN. If the Router does not have DHCP enable, it will take around 20 seconds to store the backup IP (192.168.10.40) to Print Server.
  • Page 14 Fixed IP Address. The default Fixed IP is set as 192.168.10.40. • For Fixed IP Address, enter an unused address from the range used on your LAN, or click the Suggest New Values Button. Use the same Network Mask and Gateway as PCs on your LAN.
  • Page 15 7. For TEW-P11G, the settings on the Wireless Screens have to match with your other Wireless Stations. For details about each setting, refer to the following section Wireless Configuration. 8. Click Finish to complete the configuration. Page 12...
  • Page 16 9. Select the option to help you setup the network printer into your PC. 10. Select Configure Print Driver Now, then click Finish. You can also configure later by go to Start > Programs > TRENDnet > Print Server Utility, Click Printer Port Setup.
  • Page 17 13. When blew print server port added successfully message display, click OK. 14. You can choose the printers either from the Existing Printers or select Add New Printer. This example shows you how to Add New Printer. 15. Install printer driver from list or click Have Disk. Then click Next.
  • Page 18 16. Browse the path, then click OK. 17. Click Next to install the driver. Page 15...
  • Page 19 18. It is recommend to add Print Server’s name in front of your printer name, then click Next. 19. Click Next to print the test page. 20. Click Finish. 21. A test page message will display. Click OK if the page printed correctly.
  • Page 20 22. The Existing Printers list display the printer has been added successfully. Click Cancel to exit the Utility. 23. After successful added the printer, the start mark “x” will appear right next to the port. Click Refresh if you do not see it. Click Close to exit the setup utility.
  • Page 21 If using the Wireless interface, the Wireless LED should be On. • Check that your PC and the Print Server are on the same LAN segment. (If you don't have a Router or Gateway on your LAN, you only have 1 segment.) •...

  • Page 22: Wireless Mode

    2 modes: • Ad Hoc mode - no Access Point is used, Wireless stations communicate directly with each other. This is the older standard, and requires that each Wireless station is set to use the same Channel. • Infrastructure (Default) - all Wireless stations connect to the Access Point. This allows connection to both other Wireless stations and the wired LAN.

  • Page 23: Chapter 4 Client Pc Configuration

    See the Macintosh section of this chapter for details of client configuration. Which printing method should I use? • If using Windows 98, NT, ME, 2000, XP or Vista, the easiest method to use is Peer-to- peer Printing. • If using Windows, and you need to print from MS-DOS programs, or you don't wish to install additional software, use SMB.
  • Page 24 If using the Peer-to-peer Printing, the installation program will check this for you. • If using other methods, you must check manually, as follows: 1. Select the Settings - Control Panel - Network option on the Start Menu. You should see a screen like the one following: Figure 1: Network Configuration •...

  • Page 25: Windows Peer-To-Peer Printing

    Windows 2000, XP & Vista require no additional software. You can use LPR printing method to setup your printer. If you prefer, there is another option to help you to install the printer by using Print Port Setup Utility. Please refer to Windows 98/ME Setup and PTP Printer Port Setup Section below.
  • Page 26 3. Choose Standard TCP/IP Port, then click New Port. 4. On the Add Standard TCP/IP Printer Port screen above, enter the IP Address of the Print Server in the Printer Name or IP Address field, and then click Next. Page 23...
  • Page 27 6. On the Port Settings screen, shown above: • Select LPR in the Protocol section • Enter a Queue name (L1 for Parallel Port, L2 for USB Port) • Ensure the LPR Byte Counting Enabled setting is Enabled. • Click OK to confirm your changes and close this screen.
  • Page 28 1. Insert the supplied CD-ROM into your drive. If the setup program does not start automatically, run Autorun.exe in the root folder. 2. On the first screen, shown below, click Install Utility and in the sub menu click on Installation.
  • Page 29 In future, you can use Start > Programs > TRENDnet > Print Server Utility - Printer Port Setup to run the program again. PTP Printer Port Setup 1. The Printer Port setup program searches for Printer Servers on the network, and a screen like the following is displayed.
  • Page 30 3. After the printer port created, the following screen will be displayed. Select the printer from Existing Printers list, then click Connect. If the correct printer type is not listed, click "Add New Printer" to run the Windows Add Printer wizard. Step through the Wizard and install the required printer: •...
  • Page 31 • To install additional Printers, repeat steps 4. • Use the Start menu to run this program in future. The default installation is Start > Programs >TRENDnet > Print Server Utility > Printer Port Setup. Note: If using the Epson Spooler Manager, this program must be disabled, as follows: 1.
  • Page 32 • If the printer attached to the Print Server is changed, just run this program again, and select the correct printer. • To delete a port created by this setup program, use the Windows Delete Port facility: • Right-click any printer in the Printers folder, and select Properties.

  • Page 33: Windows Smb Printing

    Print Server, and complete the Wizard. 7. This printer will now appear in your Printers folder (Start - Settings - Printers) and can be used like any other printer. However, SMB printing is not suitable for large complex print jobs - you should use the Peer-to-peer Printing instead.

  • Page 34: Windows With Server-Based Print Queues

    Windows with Server-based Print Queues With a Server-based Print Queue, the Print Server is installed on an existing Network Server (Windows, Unix, or NetWare), rather than on your PC. If your Network Administrator uses this system, each Windows client must be set up as follows: 1.
  • Page 35 4. Select the correct printer Manufacturer and Model, as advised by your Network Administrator, and click Next. 5. Follow the prompts to complete the Wizard. The new printer will be listed with any other installed printers, and may be selected when printing from any Windows application. Page 32...

  • Page 36: Macintosh (Appletalk)

    Macintosh (AppleTalk) The Print Server supports AppleTalk (EtherTalk), PAP, ATP, NBP, ZIP and DDP protocols, enabling Macintosh computers on the network to view and use the Print Server as a regular AppleTalk printer. Normally, no configuration is required. Software Requirements System 9.x OS or newer.

  • Page 37: Macintosh Os X

    2. Click the Add Printer button. 3. Choose LPR Printers Using IP. 4. Enter the IP address of the Print Server in the LPR Printer's Address field, and enter the Queue Name (L1 for Parallel port, L2 for USB port).

  • Page 38: Chapter 5 Biadmin Management Utility

    1. Insert the supplied CD-ROM into your drive. If the setup program does not start automatically, run Autorun.exe in the root folder. 2. On the first screen, shown below, click Install Utility and in the sub menu click on Installation.
  • Page 39 4. Select Administrator to install Bi-Admin Utility, then click Next. 5. Click Next or Browse to different location. Page 36...
  • Page 40 6. Click Next. 7. Following the screen until the following screen shows up. Select “Enable BiAdmin Management Utility Now”. 8. The Bi-Admin Utility will show up. Page 37...

  • Page 41: Operation

    List Device List The left panel displays a list of all Print Servers found on the network. When a Print Server is selected from the list, its details are displayed in the right panel. Note: If the IP address is "Null", please click the Refresh icon to get the value again.
  • Page 42 All of the settings for the current device are displayed in a read-only scrollable list in the left panel. You can use the "Save to File" and "Restore to Device" buttons on this screen to save a copy of the selected device's CONFIG file to your PC, or restore a previously saved file to the selected Print Server.
  • Page 43 Main - Printer Status Menu equivalent: Main - Printer Status or Click the Icon After selecting this icon, a Detail button will be available to show more information about the printer. Select the desired port from the drop-down list to display the current status of the printer attached to the port.
  • Page 44 Menu Equivalent: Main – Upgrade or Click the Icon This option allows you to upgrade the firmware for the selected Print Server. Before using this option, you need to obtain the .BIN file for the firmware upgrade, and copy it to the same directory as BiAdmin.
  • Page 45 Set to Default button on the screen. InitDevice – Attached Remote This is used to connect to a Print Server device on another LAN segment. You need to know the IP address of the remote Print Server. If your LAN does not have a Router, you can ignore this option.

  • Page 46: System Tab

    Configuration When the Configuration icon is clicked, or the Configure option on the Main menu is selected, a tabbed window will open. The tabs available will vary depending on the model selected. For the Print Server, the following tabs are available: •...
  • Page 47 Router). • Gateway - Use the same values as PCs on your LAN (or on the same LAN segment, if you have a Router). The Print Server also supports the Auto-IP function. If the Print Server is set to Dynamic IP Address, but there's no DHCP server found on the network, the Print Server will get an IP from the range of 169.254.1.1 ~ 169.254.254.254 automatically.
  • Page 48 Generally, no configuration of the Print Server is required for using AppleTalk. This screen allows you to: • Set the Zone Name field to determine which Apple systems can gain access to this printer. • The Printer Type field is used to describe the printer driver used for each port.
  • Page 49 • Choose the Domain name for the selected Print Server. • Set how fast jobs are sent to the printer by using the Response Time field. • Set the desired option for the Abort Job if Error Occured setting. •...
  • Page 50 Internet Printing Tab The Internet Printing feature allows you to send print jobs to the Print Server using Internet E- mail. Please see Error! Reference source not found. for details of using this feature. Page 47...

  • Page 51: Port Tab

    Convert LF to LF+CR - If checked, LF (line feed) characters are changed to CR+LF (carriage return + line feed). • Prefix of Job - The printer control string (in hex) to be sent to the printer before each print job. This string cannot exceed 15 characters. •...
  • Page 52 Wireless Tab - WEP Encryption (TEW-P11G only) This tab will be displayed if the selected device has the capability to serve as a Wireless Stations for your LAN. Change the settings to suit your environment. Generally, you must match the settings of other 'Wireless stations.
  • Page 53 The key number (1, 2, 3, 4) is also transmitted. The receiving station will use the key number (1, 2, 3, 4) to determine which key value to use for decryption. If the key value does not match the transmitting station, decryption will fail.
  • Page 54 Wireless Tab - WPA-PSK Encryption (TEW-P11G only) Select the method used on your LAN. WPA Algorithm Enter the Keyword key value. Data is encrypted using a key derived WPA Key from the network key. Other Wireless Stations must use the same network key.
  • Page 55 Wireless Tab - WPA2-PSK Encryption (TEW-P11G only) Select the method used on your LAN. WPA Algorithm Enter the Keyword key value. Data is encrypted using a key derived WPA Key from the network key. Other Wireless Stations must use the same network key.
  • Page 56 Wireless Link Info Screen (TEW-P11G only) After clicking the "Link Info" button on the Wireless Screen, a screen like the example below will be shown. This indicates which access point is currently in use. State The current channel which has been used.

  • Page 57: Snmp Tab

    SNMP Tab Configuration is only required if using the Simple Network Management Protocol to administer your Print Server. Refer to Configuring the Print Server for SNMP in Chapter 7 for details. Page 54...

  • Page 58: Chapter 6 Web-Based Management

    00:c0:02:xx:xx:xx is the hardware address of the Print Server. Example (Unix): arp -s 192.168.0.21 00:c0:02:12:34:56 Example (Windows): arp -s 192.168.0.21 00−c0−02−12−34−56 Note: The hardware address of the Print Server is shown on a sticker on the base of the device. Page 55...

  • Page 59: Connecting To The Print Server

    2. In the Address box, enter HTTP:// followed by the IP Address of the Print Server. e.g. http://192.168.10.40 3. You will then be prompted for the password. If no password has been set, just press NTER 4. Use the menu bar to move from one screen to another. Remember to save each screen before changing to a different screen.
  • Page 60 This field is not case sensitive, so names with different case will be considered to be the same name. Options Set how fast jobs are sent to the printer. The default value of zero Response Time (0) delay should be increased only if your printer cannot cope with (0.1 secs)
  • Page 61 Select the Trap Receiver number (1..4), and click the Get Data button Receiver No. to update the display for the selected item. Enter the IP Address of the Trap Receiver, which will be sent the IP Address Trap message. This is a text field. Enter the name of the community.
  • Page 62 The Print Server will then automatically obtain an IP address from the DHCP Server. Select this to assign a fixed IP address to the Print Server. If selected, Fixed IP you must enter a in the Device IP Address, Subnet Mask, and Address Gateway.
  • Page 63 Wireless Configuration (TEW-P11G only) There are 2 options on the menu for Wireless configuration - Basic and Security. Wireless - Basic The settings on this screen must match the other Wireless stations in order for communication to occur. Configuration Select your region from the drop-down list.
  • Page 64 Click this button will open the sub screen. Link Info Button Wireless Security Screen (TEW-P11G only) This screen is accessed by clicking the "Security" link on the Wireless menu. There are 4 options for Wireless security: • Disabled - no data encryption is used.
  • Page 65 Wireless Security - WPA-PSK If "WPA-PSK" is selected, the screen will look like the following example. Security WPA-PSK System Like WEP, data is encrypted before transmission. WPA is more secure than WEP, and should be used if possible. WPA-PSK is the version of WPA, which does NOT require a Radius Server on your LAN.
  • Page 66 Enter the Keyword key value. Data is encrypted using a key Passphrase derived from the PSK. Other Wireless Stations must use the same PSK. The PSK must be from 8 to 63 characters in length. Select the desired method. Other Wireless Stations must use the Encryption same method.
  • Page 67 Other Screens Server Status This screen shows server system data and the current settings for all of the other screens. It is read-only; no data can be input on this screen. Printer Status This screen displays the current status of each port. For each port, the following data is listed: •...
  • Page 68 Logical Printers Logical Printers (ports) can be used under Unix. For each Logical Printer, the following fields are available: Select the Logical Printer Port you wish to configure. (e.g. L1) Logical Printer Click the Get Data button to update the display with the current data for the selected logical printer.

  • Page 69: Chapter 7 Special Features

    Any Router, Gateway or Firewall linking your LAN to the Internet must NOT block the IPP protocol. • You must advise clients of the correct URL or IP Address of the IPP Server. To use a URL rather than an IP Address, you need to register the domain name for the URL. •...
  • Page 70 Also you can distribute the setup program (IPP_CLIENT.EXE) to users vial E-mail. Installing from Autorun 1. Insert the CD-ROM in your drive. If the program does not start automatically, run the autorun.exe in the root folder. 2. Click Install Utility, then click the submenu Installation 3.
  • Page 71 6. Either select an existing printer to use the new port, and click OK. Click the Add New Printer button to create a new printer to use the IPP port. This will start the Add Printer wizard. Follow the prompts to complete the process. Ensure that the new printer uses the IPP port.
  • Page 72 Changing the IPP Port Settings After the IPP port is created, you can reach the screen shown in Figure 2: IPP Port using the Windows Port Settings button: 1. Open the Printers folder (Start - Settings - Printers) 2. Right-click the IPP Printer, and select Properties.
  • Page 73 Figure 4: Windows 2000 - Locate your Printer 3. Select Connect to a printer on the Internet or on your Intranet, and enter the URL of the IPP Server as follows, where ip_address represents the IP Address of the IPP Server, and 631 is the port number.
  • Page 74 Figure 6: Windows Vista - Choose a local or network Printer 3. If the desired printer is not shown in the list, click The printer I want isn’t listed. 4. Click Select a shared printer by name, and enter the URL of the IPP Server as follows, where ip_address represents the IP Address of the IPP Server, and 631 is the port number.

  • Page 75: Printing Through The Internet

    The IPP printer is now ready for use. Using IPP Printers The IPP Printer can be selected and used like any other Windows printer. If the IPP Server is not on your network, your Internet connection needs to be active.
  • Page 76 Figure 8 InterNet Printing Progress 6. Close the Internet connection if you opened it in Step 3. 7. If the "Notify after print job" option is set, you will receive an E-Mail when your job is printed. Page 73...

  • Page 77: Snmp

    Configuring the Print Server for SNMP Before using a SNMP Management station to manage the Print Server, the following settings should be assigned to it, in addition to the IP Address, Gateway Address, and Subnet Mask. SNMP Settings Text Field - Name of the contact person.

  • Page 78: Chapter 8 Troubleshooting

    This chapter describes some problem which may arise, and the solutions to them. Overview If you encounter printing difficulties, please refer to the appropriate section. If, after following the advice in these documents, the Print Server still does not function properly, please contact your dealer for further advice. Hardware & Connection Problems Problem No.

  • Page 79: Appletalk (Macintosh)

    Print Server. Solution No. 3 If the Print Server is left on, but the DHCP server is turned off, then the Print Server will retain its IP Address without the DHCP Server being aware of it. Simply reset the Print Server so it will obtain a new IP Address.
  • Page 80 Check your monitor to make sure all settings (for example, brightness) are adjusted correctly. Problem No. 7 When I send a print job, I get a PostScript Command error or no print out. Solution No. 7 Check the communication protocols. The computer, Print Server and printer must all be configured to the same communication protocol.(either Binary or ASCII).

  • Page 81: Windows Printing Problems

    To remove an existing printer port installation: 1. Open Start - Settings - Control Panel - Add/Remove Programs 2. Look for an entry with a name like "Shared Port", "Shared Printer Port", "Print Server Driver" or "Print Server Port". 3. Select this item, click "Add/Remove", and confirm the deletion.
  • Page 82 7. Click the Add Port button. On the resulting screen, select Other, then Printer Server, as the port to add, as shown below. 8. Click OK to see the Print Port Configuration screen, as shown below. Page 79...
  • Page 83 9. Click the Browse Device button, select the desired Print Server, and click OK. 10. Click OK to return to the Printers folders, and right-click on the Printer. Ensure that the Work off-line option is NOT checked. The Printer should no longer be grayed out, and is ready for use.
  • Page 84 The Configuration button on the Printer Status screen in BiAdmin is grayed out, even though my printer is bi-directional. Solution No. 6 The button is unavailable if the printer is busy. You must wait until the printer is idle. Page 81...
  • Page 85 Problem No. 7 My old printer cannot print or prints garbage. Solution No. 7 If the printer you used is an old model with low speed, the following steps may solve this problem: • Open the BiAdmin Utility. • Click the Printer Status icon.

  • Page 86: Unix Troubleshooting

    You have used the correct hardware address, as shown on a sticker on the base of the device. • Use the ping command to see if the Print Server is a valid device on the network. Problem No. 2 The Print Server’s IP address is forgotten and it needs to be installed in a new environment.

  • Page 87: Appendix A Specifications

    TEW-P11G External Power Adapter 5V DC, 2A LEDs USB 2.0 Port Parallel Port Ethernet Connecter 10/100BaseT FCC / CE FCC, CE. Class B TE100-P11 External Power Adapter 5V DC LEDs USB 2.0 Port Parallel Port Ethernet Connecter 10/100BaseT FCC / CE FCC, CE.

  • Page 88: Protocol Support

    Protocol Support Model TCP/IP NetBeui AppleTalk TEW-P11G √ √ √ TE100-P11 √ √ √ Feature Support Model HTTP E-mail SNMP AutoIP Setup Printing Support Support TEW-P11G √ √ √ √ √ TE100-P11 √ √ √ √ √ Page 85...

  • Page 89: Regulatory Approvals

    If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna.

  • Page 90: Appendix B Windows Server Configuration

    8. In the Name of printer or print queue on that server dialog box, enter the appropriate logical printer number (e.g. L1) as previously configured on the Print Server. By default, L1 is for Parallel Port, L2 is for USB Port if the Print Server has these 2 printer ports.

  • Page 91: Windows 2000/2003 Server

    Windows 2000/2003 Server 1. Start the Add Printer Wizard, select Network Printer, then click Next to browse for the Print Server. 2. Locate and double-click the Print Server, select the desired port, and click Next. A message like the following will be displayed:...

  • Page 92: Appendix C Unix Systems

    Chapter 6 - Web-based Management. Note: The hardware address of the Print Server is shown on a sticker on the base of the device. Other Print Server Configuration The recommended method to configure the Print Server is to use the Web-based interface, as described in Chapter 6 - Web-based Management.

  • Page 93: Lpd Configuration

    Configuration for the most common platforms is described below. LPD on IBM AIX 4.15 Before proceeding, ensure that the Print Server has been assigned an IP Address. To setup your AIX system for LPD printing, perform the following steps. 1. Add the Print Server to /etc/hosts.lpd, using the name you assigned to the Print Server.
  • Page 94 The remote printer name is the print queue name for the Logical Printer. Logical printers also need to be configured on the Print Server itself. • If your UNIX asks for the LPD type, be sure to identify the service type as BSD. The Print Server’s LPD protocol meets BSD system standards. •...
  • Page 95 Repeat this process for each Logical Printer/Print Queue combination that you wish to create. LPD on Linux If using the command line, the procedure is the same as for System V. (above) On recent Linux distributions, you can use the graphical X-windows interface instead of the command line.
  • Page 96 If asked for the LPD type, enter the service type as BSD. In the sample commands shown, printer_name is the Print Queue serviced by the logical printer on the Print Server, and Spooler_dir is the name of the directory, which is used to spool the print jobs.
  • Page 97 Example: -P Marketing /etc/hosts In the above example, the /etc/hosts file is sent to the printer queue Marketing. It will then be sent to the logical printer associated with this queue. Page 94...

  • Page 98: Appendix D Netware

    Figure 11: Create NDPS Manager Object 5. Type a name in the NDPS Manager Name.(e.g. SerMGR in Figure 1 above) 6. Browse the Resident Server and select where you want the NDPS Manager object to be assigned. (e.g. TECH_50.TeSupp in figure 1 above) 7.

  • Page 99: Creating An Ndps Printer Agent

    To start the NDPS Manager in future, enter the following command at the console: LOAD NDPSM then select the NDPS Manager object. To start the NDPS Manager whenever you bring up the server, add a command like the following to your server's AUTOEXEC.NCF file: LOAD NDPSM SerMGR.TeSupp...
  • Page 100 10. In the Host address IP field, enter the IP Address previously assigned to the Print Server device. 11. In the Printer Name field, enter the Logical Port name on the Print Server. (L1 for Parallel Port 1, L2 for USB port).

  • Page 101: Network Glossary

    Boot - To start a device and cause it to start executing instructions. Broadband - An always-on, fast Internet connection. Browser - An application program that provides a way to look at and interact with all the information on the World Wide Web.
  • Page 102 Gateway - A device that interconnects networks with different, incompatible communications protocols. Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a time. HTTP (HyperText Transport Protocol) - The communications protocol used to connect to servers on the World Wide Web.
  • Page 103 (username and password) in addition to data transport. PPTP (Point-to-Point Tunneling Protocol) - A VPN protocol that allows the Point to Point Protocol (PPP) to be tunneled through an IP network. This protocol is also used as a type of broadband connection in Europe.
  • Page 104 Upload - To transmit a file over a network. URL (Uniform Resource Locator) - The address of a file located on the Internet. VPN (Virtual Private Network) - A security measure to protect data as it leaves one network and goes to another over the Internet.

  • Page 105: Limited Warranty

    TRENDnet pursuant to any warranty. There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.
