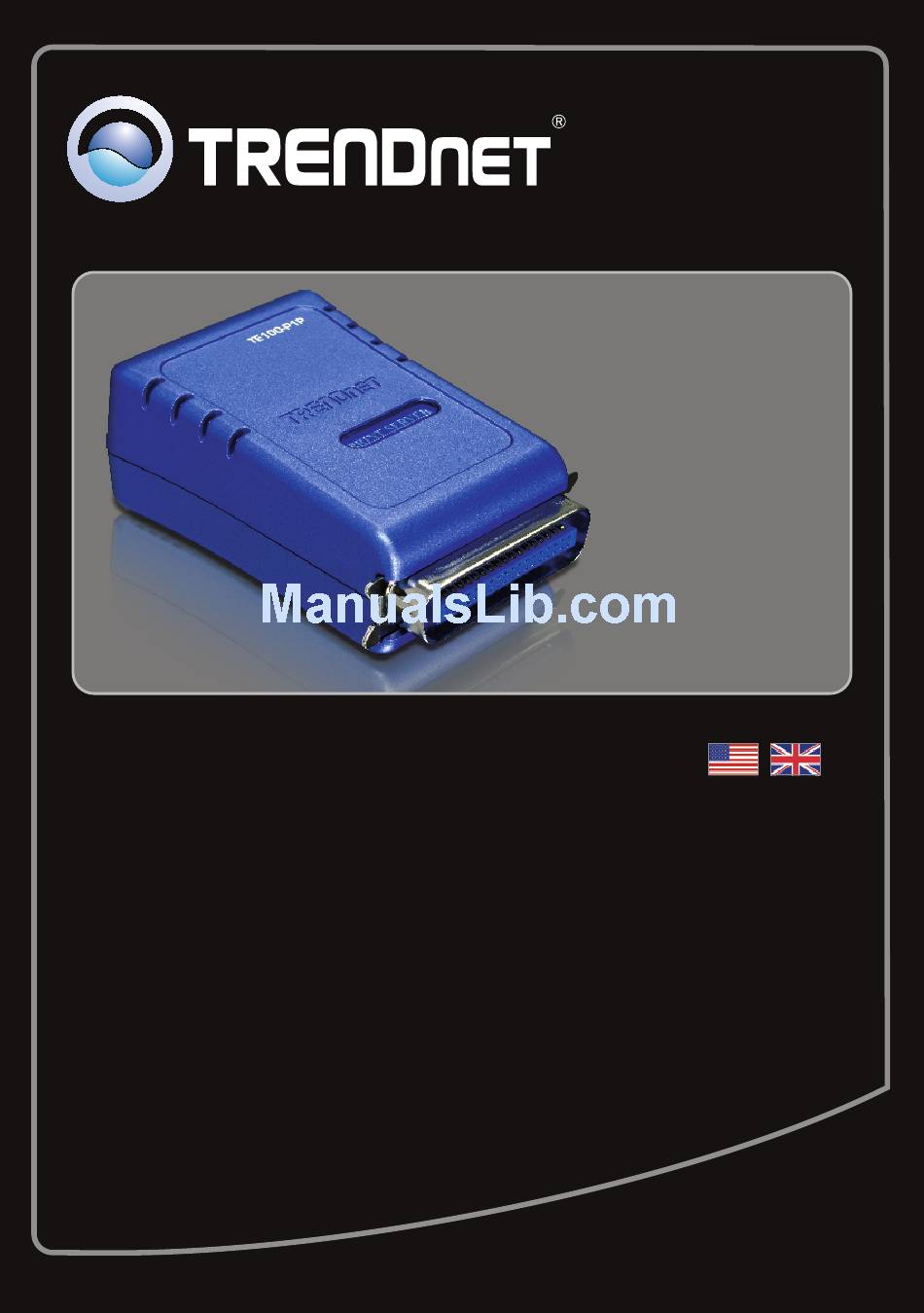

- Page 1 Quick Installation Guide TE100-PIP...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. How to Install Configure the Print Server 4. Add the Printer to your PC Troubleshooting Version 07.21.2010... -
Page 3: English
1. Before You Start Package Contents TE100-P1P Utility CD-ROM Multi-Language Quick Installation Guide AC Power Adapter (5V DC, 2.5A) System Requirements CD-ROM Drive Wired or Wireless Router An available DHCP server – routers usually have a built-in DHCP server Supported Operating Systems Memory Windows 7 (32/64-bit) 1GHz or above... -
Page 4: How To Install
2. How to Installation Note: Please power off all printers before connecting them to the print server. Then turn on each printer after you make your hardware connections. 1. Connect a RJ-45 network cable from a Switch/ Router to the LAN port on the Print Server. 2. -
Page 5: Configure The Print Server
3. Configure the Print Server Note: The Print Server can be managed using the PS Utility or a web browser. For MAC users, change your computers IP address to 192.168.0.X (where X is an available number from 2-254). Since the Print Server's default IP address is 192.168.0.1, make sure no other network devices are assigned an IP address of 192.168.0.1. - Page 6 4. Follow the InstallShield Wizard instructions. Click Finish. 5. Select the Print Server and click Change IP Address. Manually assign the IP Address of the Print Server and then click OK. Note: The IP Address must match the network segment of your network. 6.
-
Page 7: Add The Printer To Your Pc
4. Add the Printer to your PC Note: For printing instructions for Windows ME, 98SE, and Mac OS X, please consult the User's Guide included on the Utility CD-ROM. Windows 7/Vista/2003 Server/XP/2000 1. Click PS Wizard and then click Windows 7/Vista/2003 Server/XP/2000. -
Page 8: Register Your Product
Add Printer is now complete. For detailed information regarding the TE100-P1P configuration and advanced settings, please refer to User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register... -
Page 9: Troubleshooting
Troubleshooting 1. I inserted the Utility CD-ROM into my computer's CD-ROM Drive but the installation menu does not appear automatically. What should I do? 1. For Windows 7, if the installation menu does not appear automatically, click on the Windows Icon on the bottom left hand corner of the screen, click the “Search programs and files”... - Page 10 4. When prompted for a password, enter SYSXXXX, where XXXX represents the last 4 digits of the MAC address. Note: All letters must be uppercase. If you still encounter problems or have any questions regarding the TE100-P1P, please contact TRENDnet's Technical Support Department.
- Page 12 Copyright ©2010. All Rights Reserved. TRENDnet.
