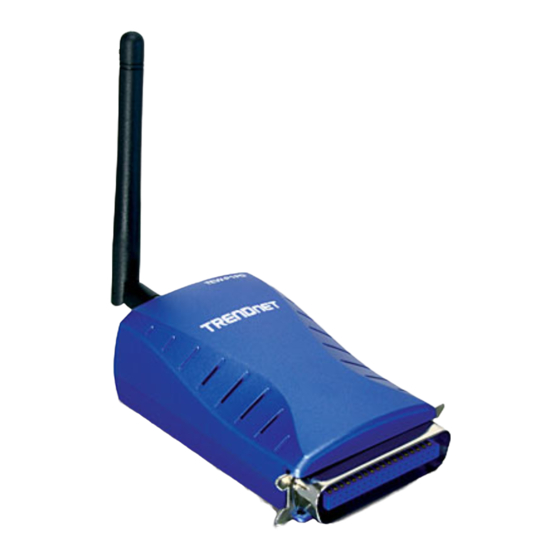

TRENDnet TEW-P1PG - Wireless Parallel Print Server Installation Instructions Manual

Windows setup guide

TE100-P1P/TEW-P1PG Windows 7 Installation Instruction

Hardware Installation

Go to

http://www.trendnet.com/downloads/

your desktop.

Right click on the file and select Extract All. Follow the wizard to uncompress the file.

Connect a RJ-45 Network cable from a switch/router to the LAN port of the Print Server

Connect the detachable antenna (for TEW-P1PG only)

Connect the AC power adapter to the Print Server and then to a power outlet

Connect the Parallel Printer to the Parallel port on the Print Server

Power on the Printer

1. Double click on PSUtilitySetup_v3.13.exe

Follow the steps to configure the Print server

a. Select the Print Server and

click Change IP Address.

Manually assign the IP

Address of the Print

Server and then click OK.

Note: The IP Address must

match the network

segment of your network.

b. Click OK

to download the Windows 7 Utility. Save the file to

Table of Contents

Do you have a question about the TEW-P1PG - Wireless Parallel Print Server and is the answer not in the manual?

Page 1 TE100-P1P/TEW-P1PG Windows 7 Installation Instruction Hardware Installation Go to http://www.trendnet.com/downloads/ to download the Windows 7 Utility. Save the file to your desktop. Right click on the file and select Extract All. Follow the wizard to uncompress the file. Connect a RJ-45 Network cable from a switch/router to the LAN port of the Print Server...
Page 2 c. Click Show Web Setup. d. Click on Configuration, then Wireless. Select the proper SSID and then click Save. (Enable and enter the encryption key if your wireless network is encrypted. Please contact your Network Administrator for the encryption key)(TEW-P1PG only). e.
Page 3 Add the Printer to your computer 1. Double click on PSWizardSetup_v2.20.exe 2. Follow the steps to add the printer to your computer a. Select the print server, select the desired port and then click Add Printer. b. Click Select from manufacturer list.
Page 4 c. Click Next. d. Click Print Test Page. e. Click OK.
Page 5 f. Click Finish. g. Repeat the above steps to add the printer to other computers on the network...
Page 6 Troubleshooting The PS Wizard / PS Utility is unable to see my printer server. What should I do? Double check your hardware connections; make sure that the print server and printer are powered ON and are properly connected. Click Discover. Disable any software firewall programs (e.g.

Te100-p1p Tew-p1pg
