RG-RAP72Pro Installation Guide
7

Appendix

7.1 Connectors and Media
7.1.1 100/1000/2.5GBASE-T Ports
The 2.5GBASE-T/1000BASE-T/100BASE-TX port is 2.5 Gbps/1000 Mbps/100 Mbps port that supports auto
MDI/MDIX Crossover.
Compliant with the IEEE 802.3bz standard, 2500BASE-T requires a Category 6 (Cat 6) or Category 5e (Cat 5e)
100-ohm UTP or STP (recommended) cable with a maximum distance of 100 meters (328 feet).
Compliant with the IEEE 802.3ab standard, the 1000BASE-T port requires a Category 5 (Cat 5) or Category 5e
(Cat 5e) 100-ohm UTP or STP or higher cable with a maximum distance of 100 meters (328 feet).
The 2.5GBASE-T/1000BASE-T port requires four pairs of wires to be connected for data transmission.
7-1 shows the four pairs of wires for the 2.5GBASE-T/1000BASE-T port.

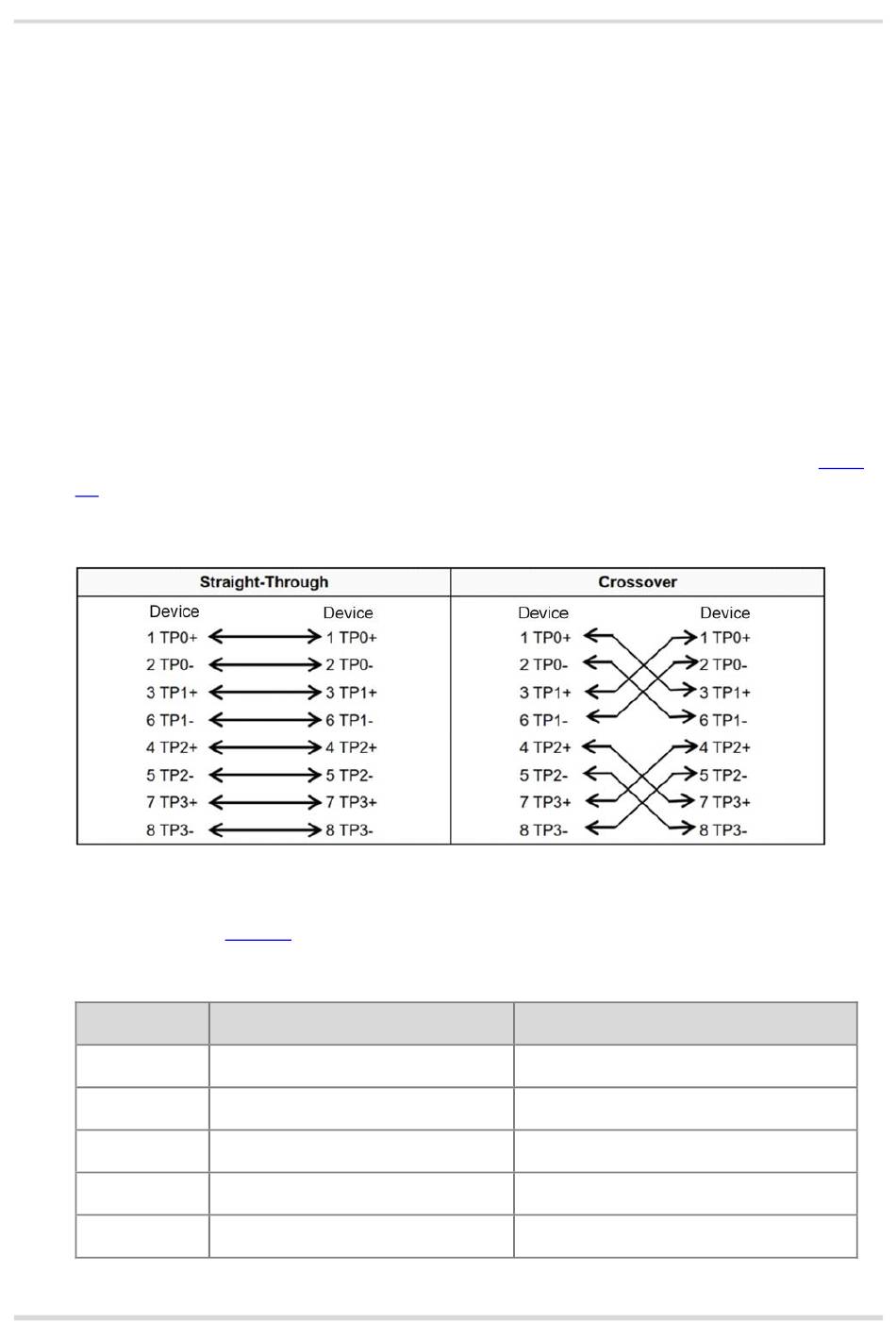

Figure 7-1 2.5GBASE-T/1000BASE-T Twisted Pair Connections
The 100BASE-TX port can be connected using 100-ohm Category 5 (Cat 5) cables with a maximum distance of
100 meters (328 ft.).
Table 7-1 100BASE-TX Pin Assignments
Pin
1
2
3
6
4, 5, 7, 8
Table 7-1 shows 100BASE-TX
Socket
Input Receive Data+
Input Receive Data-
Output Transmit Data+
Output Transmit Data-
Not Used
pin assignments.
Plug
Output Transmit Data+
Output Transmit Data-
Input Receive Data+
Input Receive Data-
Not Used
21
Appendix
Figure
