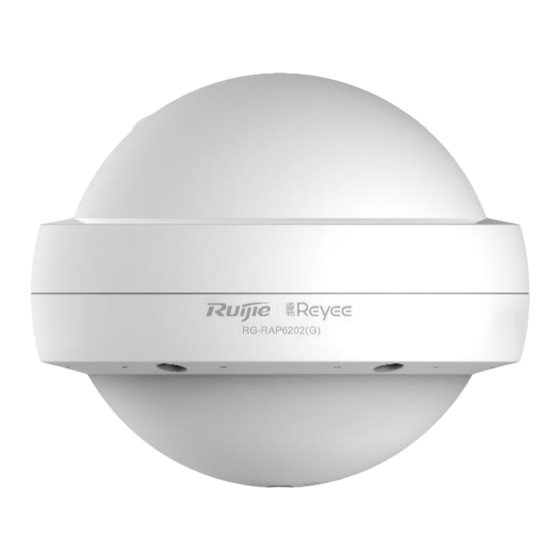

Ruijie Reyee RG-RAP6202(G) Access Point
Hardware Installation and Reference Guide
Document Version: V1.0
Date: 2022-07-20
Copyright © 2022 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reyee RG-RAP6202(G) and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruijie Reyee RG-RAP6202(G)

  • Page 1 Ruijie Reyee RG-RAP6202(G) Access Point Hardware Installation and Reference Guide Document Version: V1.0 Date: 2022-07-20 Copyright © 2022 Ruijie Networks...
  • Page 2 Due to product version upgrades or other reasons, the content of this document will be updated from time to time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder...
  • Page 3: Preface

    This document is intended for: ⚫ Network engineers ⚫ Technical support and servicing engineers ⚫ Network administrators Technical Support ⚫ Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee ⚫ Technical Support Website: https://ruijienetworks.com/support ⚫ Case Portal: https://caseportal.ruijienetworks.com ⚫ Community: https://community.ruijienetworks.com Technical Support Email: service_rj@ruijienetworks.com ⚫...
  • Page 4 Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Product Overview .......................... 3 1.1 Package Contents ......................... 3 1.2 Appearance ........................... 4 1.3 Technical Specifications ....................... 7 1.4 Power Supply ........................8 2 Preparing for Installation ......................9 2.1 Safety Precautions ........................ 9 2.1.1 Grounding and Lightning Protection ..............9 2.2 Preparing the Installation Site .....................
  • Page 6 3.2 Before You Begin ........................ 12 3.3 Choosing a Site ........................12 3.4 Installing the Device ......................13 3.4.1 Wall Mounting ......................13 3.4.2 Vertical Pole Mounting ................... 14 3.4.3 Horizontal Pole Mounting ..................15 3.5 Connecting Ethernet Cables ....................16 4 Appendix Connectors and Media ....................
  • Page 7: Product Overview

    Product Overview Product Overview The RG-RAP6202(G) access point is an outdoor wireless access point designed by Ruijie Networks for high- speed wireless networks. RAP6202(G) features wireless network security, radio frequency (RF) control, mobile access, Quality of Service (QoS) and seamless roaming.
  • Page 8: Appearance

    Hardware Installation Guide and Reference Product Overview Appearance Front View Figure 1-1 Side View Figure 1-2...
  • Page 9 Hardware Installation Guide and Reference Product Overview Ports Figure 1-3 Description Table 1-2 Sign Button/Port Function Ethernet Port 10/100/1000Base-T adaptive Ethernet ports DC power port, 12 V/1.5 A Power port Caution If the power adapter is needed, please purchase it separately. 10/100/1000 Base-T adaptive Ethernet ports, supporting 802.3af/802.3at PoE Ethernet port/PoE power supply...
  • Page 10 Hardware Installation Guide and Reference Product Overview Top View Figure 1-4 Description Table 1-3 Status Meaning Blinking Data is transmitted by Wi-Fi. Wi-Fi (Green) Solid on Wi-Fi is enabled and no data is transmitted. Wi-Fi is disabled. SYS(Blue) Fast blinking The device is being initialized.
  • Page 11: Technical Specifications

    Hardware Installation Guide and Reference Product Overview Status Meaning A long blink and three Other faults occur. short blinks Solid on The device is working properly without alarm. The device is powered off. LAN 1(Green) Blinking The port is up and data is transmitted. Solid on The port is up and no data is transmitted.
  • Page 12: Power Supply

    Hardware Installation Guide and Reference Product Overview Caution If the power adapter is needed, please purchase it separately. Power Consumption < 12.95 W System, Wi-Fi and port status indicators Product Certification ROHS Dimensions (W x D x H) 222 mm × 200 mm × 166 mm (8.74 in. x 7.87 in. x 6.54 in.) Weight <...
  • Page 13: Preparing For Installation

    Hardware Installation Guide and Reference Preparing for Installation Preparing for Installation Safety Precautions Note To prevent device damage and physical injury, please read carefully the safety recommendations described in this chapter. The following safety precautions do not cover all possible dangers. Warning Using this device may cause radio interference in living environment.
  • Page 14: Temperature And Humidity Requirements

    Hardware Installation Guide and Reference Preparing for Installation ⚫ Keep the AP at least 500 meters away from the ocean and do not face it towards the sea breeze. ⚫ The installation site should be protected from water and flooding, seepage, dripping, or condensation. The installation site should be selected according to network planning, communications equipment features ⚫...
  • Page 15: Installation Tools

    Hardware Installation Guide and Reference Preparing for Installation Installation Tools Installation Tools Table 2-1 Marker, Phillips (crosshead) screwdriver, slotted screwdriver, paper knife, diagonal Common Tools pliers, wires, Ethernet cables, binding straps, wrench and hammer Special Tools Hammer drill, ESD tools, stripping pliers and crimping pliers Meter Multimeter, network cable tester Relevant devices...
  • Page 16: Installation

    Hardware Installation Guide and Reference Installation Installation Caution Before installing the AP, make sure you have carefully read the requirements described in Chapter 2. Installation Flowchart Before You Begin ⚫ The installation site meets temperature and humidity requirements. ⚫ The installation site is equipped with a proper power supply. ⚫...
  • Page 17: Installing The Device

    Hardware Installation Guide and Reference Installation the device. ⚫ Before connecting the power supply, make sure the external power supply matches the power module of the ⚫ Before connecting the power cord, make sure the power module is turned off. When connecting the power cord to a binding post, make sure their colors are the same.
  • Page 18: Vertical Pole Mounting

    Hardware Installation Guide and Reference Installation Vertical Pole Mounting 3.4.2 Secure the mounting plate to the vertical pole by threading two clamps through the mounting plate, and fasten the clamps with screws. You are advised to use an electronic screwdriver. Mounting the Plate on a Vertical Pole Figure 3-3 Install the access point and the connecting rod to the mounting plate on the vertical pole, and tighten the M8...
  • Page 19: Horizontal Pole Mounting

    Hardware Installation Guide and Reference Installation Horizontal Pole Mounting 3.4.3 Note The procedures of horizontal pole mounting are the same as those of vertical pole mounting. Mounting the Plate on a Horizontal Pole Figure 3-5 Horizontal Pole Mounting Figure 3-6...
  • Page 20: Connecting Ethernet Cables

    Hardware Installation Guide and Reference Installation Connecting Ethernet Cables Caution The weatherproof materials are customer-supplied. (1) Trim an Ethernet cable according to the distance between the access point and the power supply. (2) Insert the unterminated end of the Ethernet cable through part D, C and B in sequence. Washer RJ-45 (Rubber...
  • Page 21 Hardware Installation Guide and Reference Installation Caution Please ensure that the RJ45 connector is properly inserted. Otherwise, you may damage the RJ45 connector when tightening the cable gland. Before removing the Ethernet cable, please remove the cable gland first and then the RJ45 connector.
  • Page 22: Appendix Connectors And Media

    Hardware Installation Guide and Reference Appendix Connectors and Media Appendix Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T Port The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet).
  • Page 23 Hardware Installation Guide and Reference Appendix Connectors and Media 100BASE-TX/10BASE-T Connection Figure 4-3 Fiber Connection You can choose to use single mode or multimode fibers according to the transceiver module types. Figure 4-4 shows connection of fiber cables. Fiber Connection Figure 4-4...
