RG-RAP72Pro Installation Guide
without sharp corners.

The metal hole traversed by cables should have a smooth and fully rounding surface or an insulated lining.

Use cable ties to bundle up cables properly. Do not connect two or more cable ties to bundle up cables.

After bundling up cables with cable ties, cut off the remaining part. The cut should be smooth and trim, without
sharp corners, as shown in

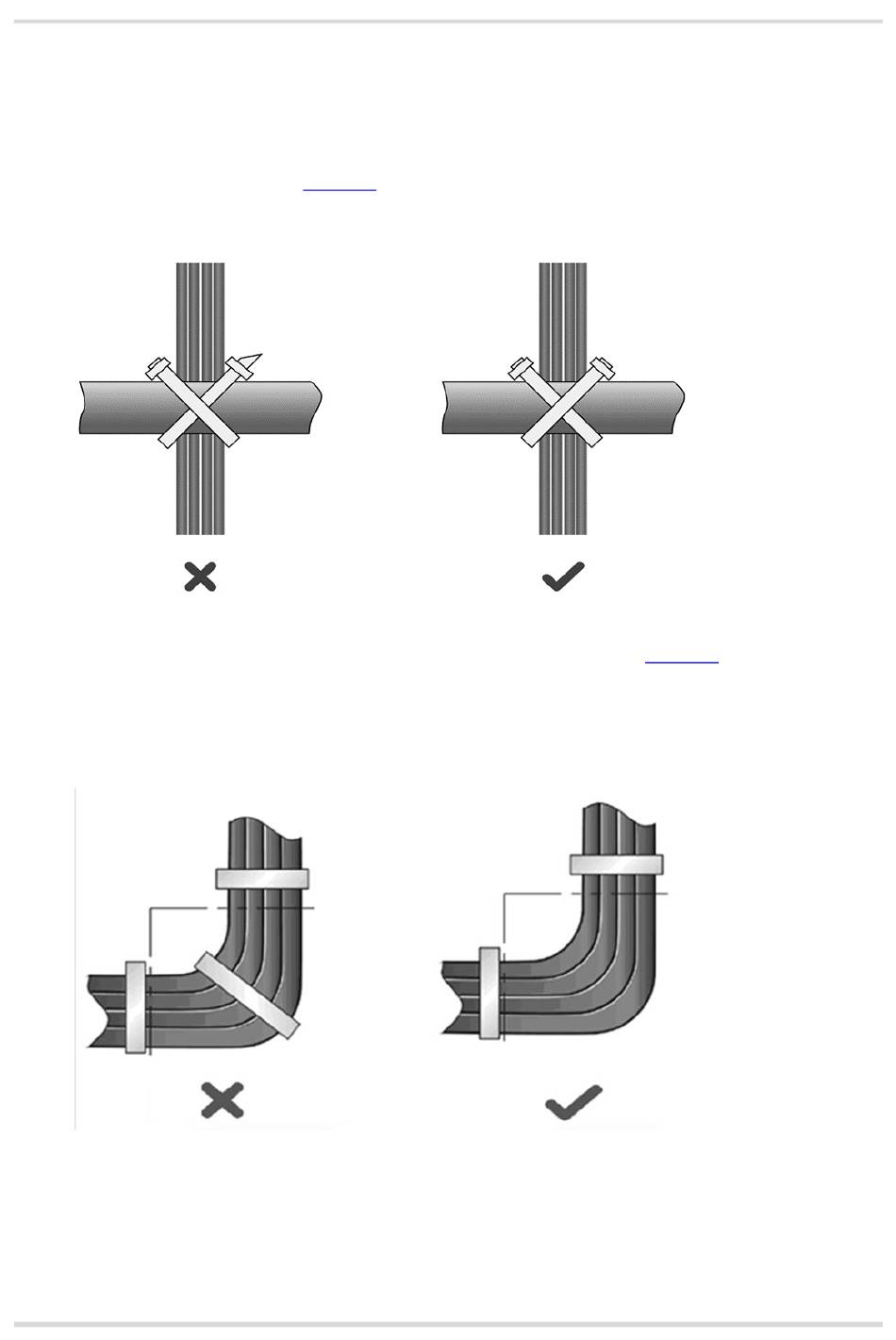

Figure 7-4 Bundling up Cables (2)

When cables need to be bent, you should first bundle them up, as shown in
cannot be bundled within the bend area. Otherwise, considerable stress may be generated in cables,
breaking cable cores.
Figure 7-5 Bundling up Cables (3)

Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of
the rack or cable trough. The proper position refers to a position that does not affect device running or damage
the device or cable.
 220 V and –48 V power cords must not be bundled on the guide rails of moving parts.
Figure 7-4.
24
Appendix
Figure 7-5. However, the buckle
