RG-RAP72Pro Installation Guide
Caution
The plane deviation of the wall in a specific area should be within 2 mm (0.08 in.), and the recommended
torque for installation is 4 kgf.cm. In case of uneven installation site, please mount the AP on a protruding wall.
(3) Connect cables according to the actual networking. The following describes how to connect cables on the
AP side.

Ethernet cable: Connect one end of the Ethernet cable to the LAN1/2.5G/PoE port (supports PoE input) or
the LAN2/1G port on the back of the AP.

DC power cord: When DC power supply is used, connect one end of the power cord to the DC 12 V power
connector on the back of the AP.
Caution

Avoid a small bend radius at the connector.

Ethernet cables with a protective sheath is not recommended as it can hinder the assembly of Ethernet
cables.

When using an optical cable for data transmission, insert and remove the optical cable gently. If you pull
the optical cable too hard, the fiber core may be displaced, affecting the optical communication quality.
Do not bend or coil the optical cable excessively, as this will increase the attenuation of light during
transmission.

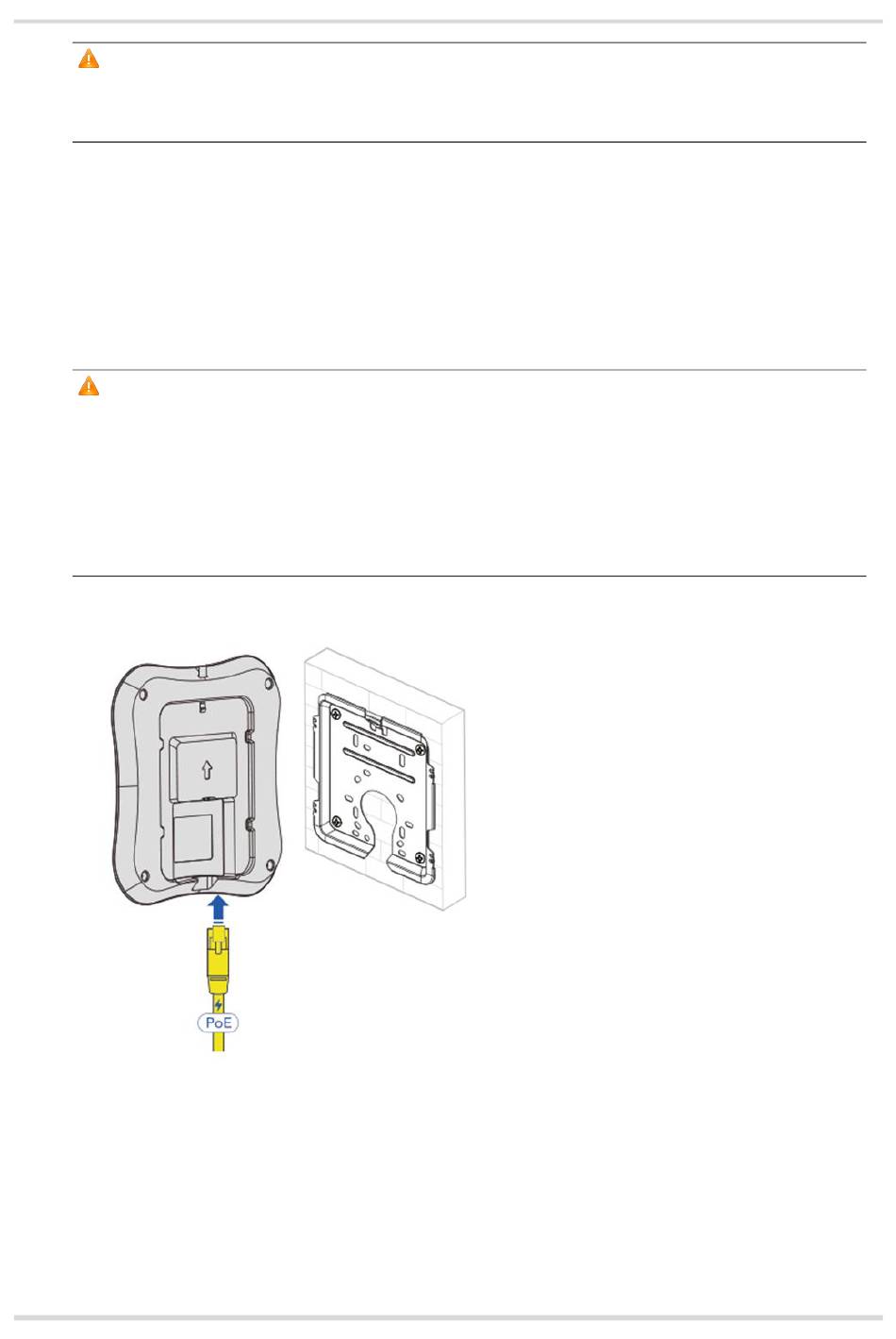

(4) Align the slots on the back of the AP with the square feet on the mounting plate, and slide the AP into the
mounting plate slowly to ensure that the AP is securely fixed.
14
Installing the AP
