RG-RAP72Pro Installation Guide
Appendix
Figure 7-2

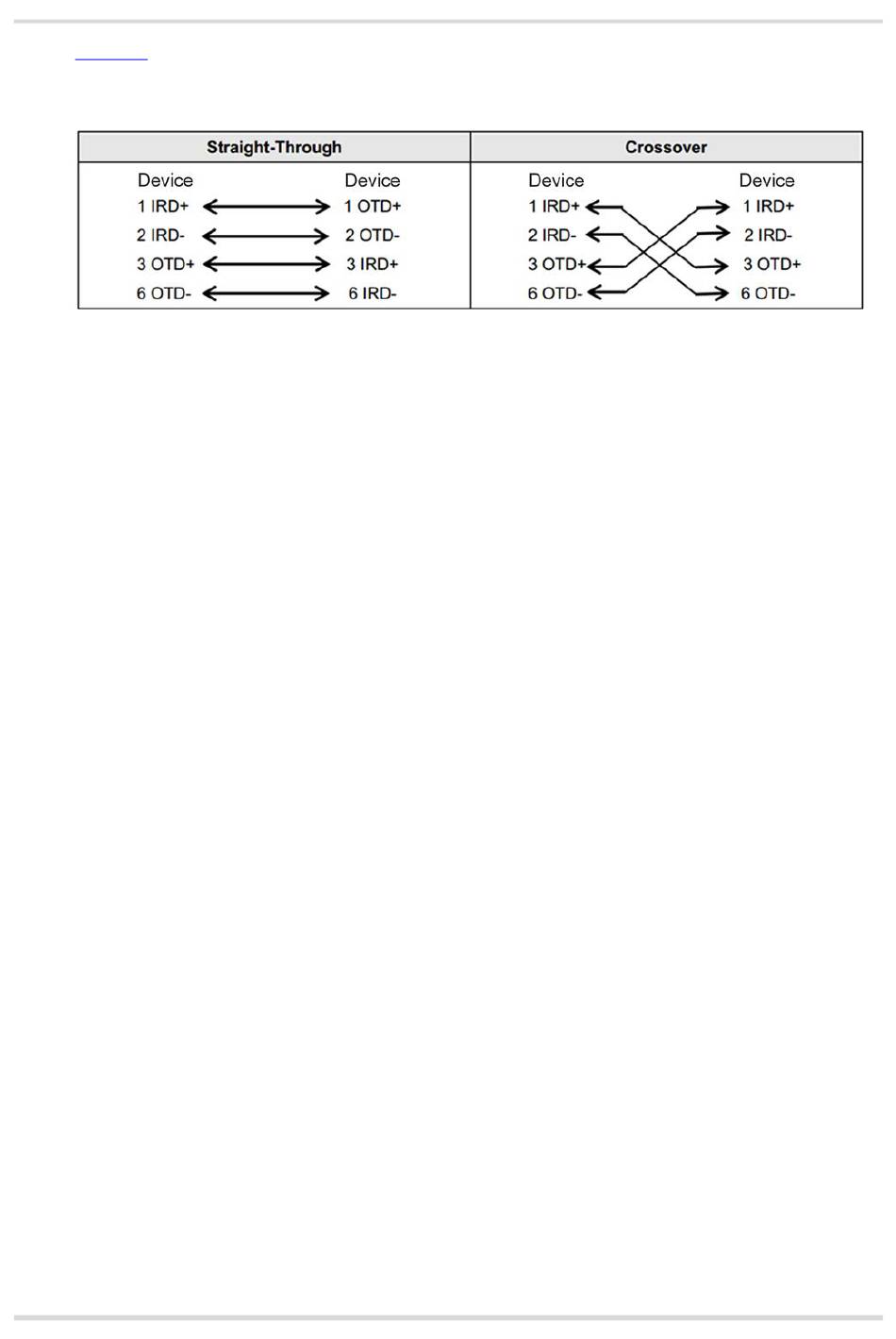

show feasible connections of the straight-through and crossover twisted pairs for a 100BASE-TX port.
Figure 7-2
100BASE-TX Twisted Pair Connection
