Summary of Contents for DFI RPS100-H610EDB

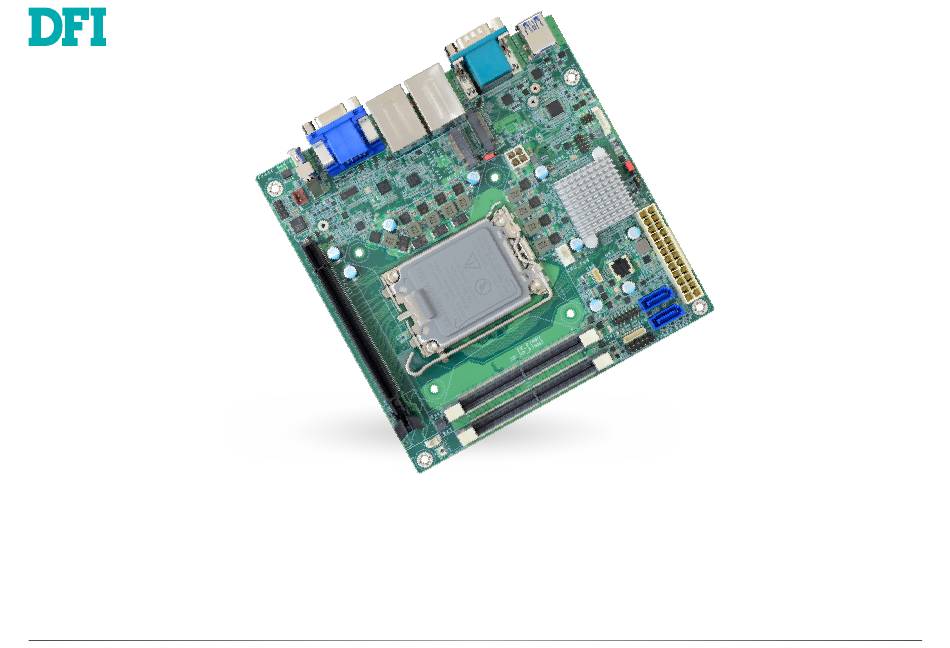

- Page 1 RPS100 Mini-ITX Industrial Motherboard User’s Manual © March 28, 2025 DFI Inc.
-
Page 2: Fcc And Doc Statement On Class B
Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be repro- This equipment has been tested and found to comply with the limits for a Class B digital duced in any form or by any means or used to make any transformation/adaptation without the device, pursuant to Part 15 of the FCC rules. -
Page 3: Table Of Contents
NCT5525D HW Monitor ....................31 NCT5525D HW Monitor ► Smart FAN Function ..........32 Serial Port Console Redirection ...................32 ► Console Redirection Settings ......33 Serial Port Console Redirection ACPI Settings .........................34 Network Stack Configuration..................35 DFI WDT Configuration ....................36 User's Manual | RPS100... -
Page 4: About This Manual
About this Manual Static Electricity Precautions This manual can be downloaded from the website. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer The manual is subject to change and update without notice, and may be based on editions that components without causing any signs of physical damage. -
Page 5: About The Package
About the Package Before Using the System Board The package contains the following items. If any of these items are missing or damaged, When installing the system board in a new system, you will need at least the following internal please contact your dealer or sales representative for assistance. -
Page 6: Chapter 1 - Introduction
Chapter 1 INTRODUCTION Chapter 1 - Introduction X Specifications SYSTEM Processor 14th Generation Intel LGA 1700 Socket Processors, TDP support up to 65W ® Intel Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W ® Intel Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W ®... - Page 7 1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel CNVi) ® 1 x M.2 3060 A Key support DFI M2A-display module (opt. MOQ required) 1 x M.2 2280 M Key (PCIE Gen 3x4 or SATA3, support NVMe) AUDIO...
- Page 8 Chapter 1 INTRODUCTION WATCHDOG TIMER Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds SECURITY dTPM (default) fTPM (option) POWER Type Connector 4-pin ATX 12V power 24-pin ATX power Consumption Idle: Intel i9-13900E 65W: 12V @ 4.475A (53.7W) Max: Intel i9-13900E 65W: 12V @ 22.167A (266.0W) RTC Battery CR2032 Coin Cell...
-
Page 9: Block Diagram
Chapter 1 INTRODUCTION X Block Diagram X Dimension User's Manual | RPS100... -
Page 10: Chapter 2 - Hardware Installation
Chapter 2 HARDWARE INSTALLATION Chapter 2 - Hardware Installation X Board Layout Top View Bottom View 1 2 3 26 27 M.2 E Key User's Manual | RPS100... - Page 11 Chapter 2 HARDWARE INSTALLATION Front Audio DIO (Select by resistor) System Fan1 Front Panel DP++ SATA2 ▲VGA SATA1 ▼HDMI ▲2.5G LAN2 USB2_P7/8 ▼USB3.2 Gen1 ▲2.5G LAN1 M2A-edp LCD Power ▼USB3.2 Gen1 ▲COM1 M2A-edp/lvds Inverter Power ▼COM2 R680E: AT/ATX Mode Select USB 3.2 Gen2 Q670E: USB 3.2 Gen1...
-
Page 12: Installing The Heat Sink
Chapter 2 HARDWARE INSTALLATION X Installing the heat sink Installing the Heat Sink The CPU must be kept cool by using a heat sink, otherwise the CPU will overheat damaging both the CPU and system board. 1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. -
Page 13: Jumper Settings
Chapter 2 HARDWARE INSTALLATION X Jumper Settings M2A-edp LCD Backlight (DPJP2) AT/ATX Mode Select (JP26) „ 1-2 On: AT Mode (Default) „ 2-3 On: ATX Mode „ 1-2 On: 3V3 (Default) „ 2-3 On: 5V User's Manual | RPS100... -
Page 14: M2A-Edp Dimming Power (Dpjp4)
Chapter 2 HARDWARE INSTALLATION M2A-edp LCD Power (DPJP3) M2A-edp Dimming Power (DPJP4) „ 1-2 On: 12V „ 3-4 On: 5V „ 5-6 On: 3V3 (Default) „ 1-2 On: 3V3 (Default) „ 2-3 On: 5V User's Manual | RPS100... -
Page 15: M2Cn3 M2-Mkey Power Select (Jp32)
Chapter 2 HARDWARE INSTALLATION M2CN3 M2-Mkey Power Select (JP32) „ 1-2 On: 3V3 (Default) „ 2-3 On: 3V3DU User's Manual | RPS100... -
Page 16: Pin Assignment
Chapter 2 HARDWARE INSTALLATION X Pin Assignment CPU Fan1 (J8) System Fan1 (J7) Assignment Assignment +12V TACH CTRL User's Manual | RPS100... -
Page 17: Front Panel (J18)
Chapter 2 HARDWARE INSTALLATION SATA1 (J32) Front Panel (J18) Assignment Assignment Assignment V_SUS_LED V_SUS_LED HD_LED# SUS_LED# SYS_RST PWR_BTN User's Manual | RPS100... -
Page 18: Sata2 (J17)
Chapter 2 HARDWARE INSTALLATION DIO (SOJ2) SATA2 (J17) Assignment Assignment User's Manual | RPS100... -
Page 19: Smbus Header (J12)
Chapter 2 HARDWARE INSTALLATION M2A-edp/lvds Inverter Power (DPJ1) SMBus Header (J12) Assignment Assignment Assignment DIMMING 3V3DU VCC_PANEL_PWR SMB_CLK_RESUME SMB_DATA_RESUME LVDS_3V3 SMBALERT_PCH- BLONOFF INVTER_PWR INVTER_PWR User's Manual | RPS100... -
Page 20: Front Audio (Auj2)
Chapter 2 HARDWARE INSTALLATION USB2_P7/8 (UBJ2) Front Audio (AUJ2) Assignment Assignment Assignment Assignment 5VSB 5VSB MIC2-L AUD_GND USBP_C_7N USBP_C_8N MIC2-R LINE2-R MIC2-JD USBP_C_7P USBP_C_8P AUD_GND LINE2-L LINE2-JD User's Manual | RPS100... -
Page 21: Espi Header (J35)
Chapter 2 HARDWARE INSTALLATION COM1/COM2 (CN16) ESPI Header (J35) Upstream : COM1 Downstream: COM2 RS422 Full RS232 RS485 Duplex Assignment Assignment DCD- TXD- Data- 3V3SB ESPI_CLK TXD+ Data+ RXD+ ESPI_RESET# DTR- RXD- ESPI_ALT# ESPI_D0 DSR- RTS- ESPI_D1 ESPI_CS CTS- ESPI_D2 3V3SB ESPI_D3 3V3SB... -
Page 22: System Memory
Chapter 2 HARDWARE INSTALLATION X System Memory Installing the SO-DIMM Module Before installing the memory module, please make sure that the following safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. -
Page 23: Expansion Slots
Chapter 2 HARDWARE INSTALLATION X Expansion Slots Installing the M.2 Module Before installing the M.2 module into the M.2 socket, please make sure that the following safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. - Page 24 Chapter 2 HARDWARE INSTALLATION Please follow the steps below to install the card into the socket. Step 1: Insert the card into the socket at an angle while making sure the notch and key are perfectly aligned. Step 2: Press the end of the card far from the socket down until against the stand-off.
-
Page 25: Chapter 3 - Bios Settings
Chapter 3 BIOS SETTINGS Chapter 3 - BIOS Settings X Overview Legends The BIOS is a program that takes care of the basic level of communication between the CPU Keys Function and peripherals. It contains codes for various advanced features found in this system board. Right / Left arrow Move the highlight left or right to select a menu The BIOS allows you to configure the system and save the configuration in a battery-backed... -
Page 26: Main
Chapter 3 BIOS SETTINGS X Main X Advanced The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. -
Page 27: Cpu Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced CPU Configuration Power & Performance Intel (VMX) Virtualization Technology When this field is set to Enabled, the VMM can utilize the additional hardware capabilities pro- vided by Vanderpool Technology. Hyper-threading Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy. -
Page 28: Power & Performance ► Cpu- Power Management Control
Chapter 3 BIOS SETTINGS Advanced Advanced Power & Performance Power & Performance ► GT- Power Management Control ► CPU- Power Management Control RC6 (Render Standby) Turbo Mode Check to enable render standby support. Enable or disable turbo mode of the processor. This field will only be displayed when EIST is enabled. -
Page 29: Pch-Fw Configuration
Chapter 3 BIOS SETTINGS Advanced PCH-FW Configuration ME State When this field is set to Disabled, ME will be put into ME Temporarily Disabled Mode. Manageability Features State Enable or disable Intel(R) Manageability features. This option disables/enables Manageability Features support in FW. To disable, support platform must be in an unprovisioned state first. AMT BIOS Features When disabled, AMT BIOS features are no longer supported and user is no longer able to ac- cess MEBx Setup. -
Page 30: Trusted Computing
Chapter 3 BIOS SETTINGS Advanced Advanced Trusted Computing NCT5525D Super IO Configuration Security Device Support This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear"... -
Page 31: Nct5525D Super Io Configuration ► Serial Port 1, 2 Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced NCT5525D HW Monitor NCT5525D Super IO Configuration ► Serial Port 1, 2 Configuration This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting. -
Page 32: Nct5525D Hw Monitor ► Smart Fan Function
Chapter 3 BIOS SETTINGS Advanced Advanced NCT5525D HW Monitor ► Smart FAN Function Serial Port Console Redirection ▼ CPU/SYS Smart Fan Mode = [Smart Fan] Console Redirection Boundary 1 to Boundary 4 By enabling Console Redirection of a COM port, the sub-menu of console redirection settings Set the boundary temperatures that determine the fan speeds accordingly, the value rang- will become available for configuration as detailed in the following. -
Page 33: Serial Port Console Redirection ► Console Redirection Settings
Chapter 3 BIOS SETTINGS Advanced Serial Port Console Redirection ► Console Redirection Settings Terminal Type Select terminal type: VT100, VT100+, VT-UTF8 or ANSI. Bits per second Select serial port transmission speed: 9600, 19200, 38400, 57600 or 115200. Data Bits Select data bits: 7 bits or 8 bits. Parity Select parity bits: None, Even, Odd, Mark or Space. -
Page 34: Acpi Settings
Chapter 3 BIOS SETTINGS Advanced ACPI Settings Wake system from S5 via RTC When Enabled, the system will automatically power up at a designated time every day. Once it’s switched to [Enabled], please set up the time of day — hour, minute, and second — for the system to wake up. -
Page 35: Network Stack Configuration
Chapter 3 BIOS SETTINGS Advanced Network Stack Configuration Network Stack Enable or disable UEFI network stack. The following fields will appear when this field is en- abled. Ipv4 PXE Support Enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be avail- able. -
Page 36: Dfi Wdt Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced USB Power Control DFI WDT Configuration Server CA Configuration Watchdog Timer 5_Dual: Support system wake up from S3/S4 by USB KB&MS Enable or disable Watchdog Timer. 5V: No support system wake up from S3/S4 by USB KB&MS... -
Page 37: Tls Auth Configuration
Chapter 3 BIOS SETTINGS Advanced Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. User's Manual | RPS100... -
Page 38: Chipset
Chapter 3 BIOS SETTINGS X Chipset Chipset System Agent (SA) Configuration Please select a submenu and press Enter. The submenus are detailed in the following pages. Graphics Configuration Graphics Configuration VMD setup menu VMD Configuration Settings PCI Express Configuration : VT-d VT-d capability. -
Page 39: Pch-Io Configuration
Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► PCI Express Configuration PCI Express Configuration Select one of the PCI Express channels and press enter to configure the following settings. PCI Express Configuration Settings LAN1, LAN2, M.2-A, M.2-E, M.2-M SATA Configuration Control the PCI Express Root Port. -
Page 40: Configuration► Sata Configuration
Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► HD Audio Configuration ► SATA Configuration SATA Controller(s) HD Audio This field is used to enable or disable the Serial ATA controller. Control the detection of the HD Audio device. SATA Speed •... -
Page 41: Security
Chapter 3 BIOS SETTINGS X Security Security Secure Boot Secure Boot Administrator Password The Secure Boot store a database of certificates in the firmware and only allows the OSes with Set the administrator password. To clear the password, input nothing and press enter when a authorized signatures to boot on the system. -
Page 42: Boot
Chapter 3 BIOS SETTINGS X Boot X Save & Exit Save Changes and Reset Setup Prompt Timeout To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Set the number of seconds to wait for the setup activation key. 65535 (0xFFFF) denotes indefi- Yes to reset the system after saving all changes made. -
Page 43: Mebx
Chapter 3 BIOS SETTINGS X Updating the BIOS X MEBx To update the BIOS, you will need the new BIOS file and a flash utility. Please contact techni- cal support or your sales representative for the files and specific instructions about how to update BIOS with the flash utility. -
Page 44: Chapter 4 - Raid Settings
Chapter 4 RAID SETTINGS Chapter 4 - RAID Settings X Setup Procedure The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, To enable the RAID function, the following settings are required. RAID 5 and RAID 10. 1. -
Page 45: How To Enable Intel(R) Rapid Storage Technology In Bios
Chapter 4 RAID SETTINGS X How to enable Intel(R) Rapid Storage Technology in BIOS System Agent (SA) Configuration ► VMD Setup Menu Enable VMD Controller for more options. Save the changes and exit. Locate Intel(R) Rapid Storage Technology option on Advanced menu. User's Manual | RPS100...
