DFI RPS631-H610E User Manual

Atx industrial motherboard
Hide thumbs

Advertisement

Quick Links

Download this manual

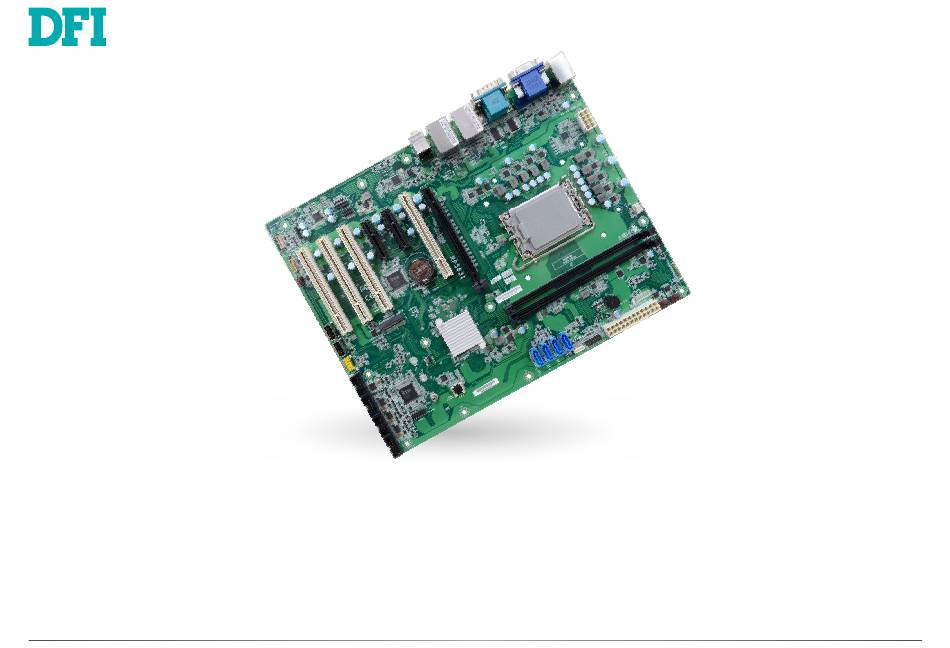

RPS631-H610
ATX Industrial Motherboard
User's Manual
© April 29, 2025 DFI Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RPS631-H610E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DFI RPS631-H610E

Summary of Contents for DFI RPS631-H610E

  • Page 1 RPS631-H610 ATX Industrial Motherboard User’s Manual © April 29, 2025 DFI Inc.
  • Page 2 Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be repro- This equipment has been tested and found to comply with the limits for a Class B digital duced in any form or by any means or used to make any transformation/adaptation without the device, pursuant to Part 15 of the FCC rules.
  • Page 3 USB Configuration ......................38 Specifications ......................... 6 Network Stack Configuration..................39 Block Diagram ........................9 NVMe Configuration ......................40 Dimension ..........................9 DFI WDT Configuration ....................40 USB Power Control ......................41 Chapter 2 - Hardware Installation ....................10 Tls Auth Configuration ....................41 Board Layout .........................10 Chipset ..........................42 Installing the heat sink ......................11...
  • Page 4 About this Manual Static Electricity Precautions This manual can be downloaded from the website. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer The manual is subject to change and update without notice, and may be based on editions that components without causing any signs of physical damage.
  • Page 5 About the Package Before Using the System Board The package contains the following items. If any of these items are missing or damaged, When installing the system board in a new system, you will need at least the following internal please contact your dealer or sales representative for assistance.
  • Page 6 Chapter 1 INTRODUCTION Chapter 1 - Introduction X Specifications SYSTEM Processor 14th Generation Intel LGA 1700 Socket Processors, TDP support up to 125W ® Intel Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W ® Intel Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W ®...
  • Page 7 Chapter 1 INTRODUCTION Chipset Intel H610 Chipset ® Memory Two 288-pin UDIMM up to 96GB (Non-ECC) Dual Channel DDR5 up to 5600 MHz *only R680E support ECC memory BIOS AMI SPI 256Mbit GRAPHICS Controller Intel UHD Graphics 700 series ® Feature OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9...
  • Page 8 Chapter 1 INTRODUCTION WATCHDOG TIMER Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds SECURITY TPM2.0 POWER Type Connector 8-pin ATX 12V power 24-pin ATX power Consumption Typical: i9-12900K: 3.3V @ 0.4A (1.32W); 5V @ 0.85A (4.25W); 12V @ 1.09A (13.08W) Max.: i9-12900K: 3.3V @ 0.63A (2.08W);...
  • Page 9 Chapter 1 INTRODUCTION X Block Diagram X Dimension User's Manual | RPS631-H610...
  • Page 10 Chapter 2 HARDWARE INSTALLATION Chapter 2 - Hardware Installation ▲2.5G LAN1 DIO1 X Board Layout ▼USB 3.2 Gen1 DIO2 ▲1G LAN2 ▼USB 3.2 Gen1 System Fan1 ▲COM1 ▼COM2 USB2_14 ▲VGA ▼HDMI USB2_9 ▲PS/2 (mini-DIN-6) ▼USB2.0 USB2_3/4 eSPI COM3 Case Open COM4 COM5 DIMM1...
  • Page 11 Chapter 2 HARDWARE INSTALLATION X Installing the heat sink Installing the Heat Sink The CPU must be kept cool by using a heat sink, otherwise the CPU will overheat damaging both the CPU and system board. 1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU.
  • Page 12 Chapter 2 HARDWARE INSTALLATION X Jumper Settings CLKREQ/PRSNT Select (CLKREQ_SEL1) Battery Clear CMOS M.2 M Key „ 2-3 On: PRSNT(default) „ 1-2 On: CLKREQ User's Manual | RPS631-H610...
  • Page 13 Chapter 2 HARDWARE INSTALLATION X Pin Assignment Case Open (C_INTRUSION1) System Fan1 (SYS_FAN1) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Case Open- TACH User's Manual | RPS631-H610...
  • Page 14 Chapter 2 HARDWARE INSTALLATION System Fan2 (SYS_FAN2) System Fan3 (SYS_FAN3) Battery Battery Clear CMOS M.2 M Key Clear CMOS M.2 M Key Assignment Assignment TACH TACH User's Manual | RPS631-H610...
  • Page 15 Chapter 2 HARDWARE INSTALLATION S/PDIF (SPDIF_HEADER1) CPU Fan (CPU_FAN1) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment SPDIF OUT CTRL SPDIF IN User's Manual | RPS631-H610...
  • Page 16 Chapter 2 HARDWARE INSTALLATION DIO_Connector2 (J2) DIO_Connector1 (J1) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment DI_3 DI_2 DI_1 DI_0 DO_7 DO_3 DO_6 DO_2 DO_5 DO_1 DO_4 DO_0 User's Manual | RPS631-H610...
  • Page 17 Chapter 2 HARDWARE INSTALLATION SMBus (SMBUS1) LAN LED Header (JP2) Battery Battery Clear CMOS M.2 M Key Clear CMOS M.2 M Key Assignment Assignment Assignment Assignment 3.3V Standby LAN2 SPEED 2.5G LAN2 SPEED 1G SMB CLOCK SMB DATA LAN2 ACTIVE 3.3V_LAN2 SMB ALERT_L I2C CLOCK...
  • Page 18 Chapter 2 HARDWARE INSTALLATION COM3 (COM3) COM4 (COM4) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Assignment Assignment MDCD- MSIN- MDCD- MSIN- MSO- MDTR- MSO- MDTR- MDSR- MDSR- MRTS- MCTS- MRTS- MCTS- MRI-/5V/12V ---- MRI-/5V/12V ---- User's Manual | RPS631-H610...
  • Page 19 Chapter 2 HARDWARE INSTALLATION COM6 (COM6) COM5 (COM5) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Assignment Assignment MSIN- MSIN- MDCD- MDCD- MSO- MDTR- MSO- MDTR- MDSR- MDSR- MRTS- MCTS- MRTS- MCTS- MRI-/5V/12V ---- MRI-/5V/12V ---- User's Manual | RPS631-H610...
  • Page 20 Chapter 2 HARDWARE INSTALLATION Front Audio (F_AUDIO1) Front Panel (F_PANEL1) Battery Battery Clear CMOS M.2 M Key Clear CMOS M.2 M Key Assignment Assignment Assignment Assignment V_SUS_LED MIC2_L A_GND V_SUS_LED MIC2_R HP_MIC_COMBO HDD_LED SUS_LED LINE2_R MIC2_JD A_GND SYS_RST- PWR_BTN- LINE2_L LINE2_JD User's Manual | RPS631-H610...
  • Page 21 Chapter 2 HARDWARE INSTALLATION eSPI (ESPI_DEBUG1) USB2_3/4 (JP12) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Assignment Assignment USB_VCC 3V3SB ESPI_CLK USB_VCC USB_N3 USB_N4 ESPI_RESET# USB_P3 USB_P4 ESPI_ALT# UART_TX ESPI_D0 ESPI_D1 ESPI_CS ---- ESPI_D2 UART_RX ESPI_D3 3V3SB...
  • Page 22 Chapter 2 HARDWARE INSTALLATION SATA1 (SATA0-R7) SATA2 (SATA1-R6) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment User's Manual | RPS631-H610...
  • Page 23 Chapter 2 HARDWARE INSTALLATION SATA3 (SATA2-R5) SATA4 (SATA3-R4) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment User's Manual | RPS631-H610...
  • Page 24 Chapter 2 HARDWARE INSTALLATION COM1/COM2 Battery Clear CMOS M.2 M Key Assignment Assignment MDCD1-/RS422_RX+ / MSIN1-/RS422_RX- / RS485_D- RS485_D+ MSO1 RS422_TX MDTR1-/RS422_TX- MDSR1- MRTS- MCTS1- MRI- ---- User's Manual | RPS631-H610...
  • Page 25 Chapter 2 HARDWARE INSTALLATION X System Memory Installing the DIMM Module Before installing the memory module, please make sure that the following safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down.
  • Page 26 Chapter 2 HARDWARE INSTALLATION X Expansion Slots Installing the M.2 Module Before installing the M.2 module into the M.2 socket, please make sure that the following safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down.
  • Page 27 Chapter 2 HARDWARE INSTALLATION Please follow the steps below to install the card into the socket. Step 1: Insert the card into the socket at an angle while making sure the notch and key are perfectly aligned. Step 2: Press the end of the card far from the socket down until against the stand-off.
  • Page 28 Chapter 3 BIOS SETTINGS Chapter 3 - BIOS Settings X Overview Legends The BIOS is a program that takes care of the basic level of communication between the CPU Keys Function and peripherals. It contains codes for various advanced features found in this system board. Right / Left arrow Move the highlight left or right to select a menu The BIOS allows you to configure the system and save the configuration in a battery-backed...
  • Page 29 Chapter 3 BIOS SETTINGS X Main X Advanced The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
  • Page 30 Chapter 3 BIOS SETTINGS Advanced Advanced CPU Configuration Power & Performance Intel (VMX) Virtualization Technology When this field is set to Enabled, the VMM can utilize the additional hardware capabilities pro- vided by Vanderpool Technology. Hyper-threading Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy.
  • Page 31 Chapter 3 BIOS SETTINGS Advanced Advanced Power & Performance Power & Performance ► GT- Power Management Control ► CPU- Power Management Control Turbo Mode RC6 (Render Standby) Check to enable render standby support. Enable or disable turbo mode of the processor. This field will only be displayed when EIST is enabled.
  • Page 32 Chapter 3 BIOS SETTINGS Advanced PCH-FW Configuration ME State When this field is set to Disabled, ME will be put into ME Temporarily Disabled Mode. Manageability Features State Enable or disable Intel(R) Manageability features. This option disables/enables Manageability Features support in FW. To disable, support platform must be in an unprovisioned state first. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear.
  • Page 33 Chapter 3 BIOS SETTINGS Advanced Advanced Trusted Computing IT8786 Super IO Configuration Security Device Support This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending Operation To clear the existing TPM encryption, select "TPM Clear"...
  • Page 34 Chapter 3 BIOS SETTINGS Advanced Advanced IT8786 Super IO Configuration IT8786 Super IO Configuration ► Serial Port 1, 2 Configuration ► Serial Port 3, 4 Configuration Serial Port Serial Port Enable or disable serial port. Enable or disable serial port. Electrical Interface Mode COM3, 4 Power Control Select an optimal settings for Super IO Device.
  • Page 35 Chapter 3 BIOS SETTINGS Advanced Advanced IT8786 Super IO Configuration IT8786 HW Monitor ► Serial Port 5, 6 Configuration This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting.
  • Page 36 Chapter 3 BIOS SETTINGS Advanced Advanced IT8786 HW Monitor ► DDR5 HW Monitor Serial Port Console Redirection Console Redirection By enabling Console Redirection of a COM port, the sub-menu of console redirection settings will become available for configuration as detailed in the following. User's Manual | RPS631-H610...
  • Page 37 Chapter 3 BIOS SETTINGS Advanced Serial Port Console Redirection ► Console Redirection Settings Configure the serial settings of the current COM port. Terminal Type Select terminal type: VT100, VT100+, VT-UTF8 or ANSI. Bits per second Select serial port transmission speed: 9600, 19200, 38400, 57600 or 115200. Data Bits Select data bits: 7 bits or 8 bits.
  • Page 38 Chapter 3 BIOS SETTINGS Advanced Advanced USB Configuration ACPI Settings Wake system from S5 via RTC USB Mass Storage Driver Support When Enabled, the system will automatically power up at a designated time every day. Once Enable or disable USB Mass Storage Driver Support. it’s switched to [Enabled], please set up the time of day —...
  • Page 39 Chapter 3 BIOS SETTINGS Advanced Network Stack Configuration Network Stack Enable or disable UEFI network stack. The following fields will appear when this field is en- abled. Ipv4 PXE Support Enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be avail- able.
  • Page 40 Chapter 3 BIOS SETTINGS Advanced Advanced NVMe Configuration DFI WDT Configuration Watchdog Timer Enable or disable Watchdog Timer. User's Manual | RPS631-H610...
  • Page 41 Chapter 3 BIOS SETTINGS Advanced Advanced Tls Auth Configuration USB Power Control Server CA Configuration Press <Enter> to configure Server CA. Server CA Configuration 5_Dual: Support system wake up from S3/S4 by USB KB&MS 5V: No support system wake up from S3/S4 by USB KB&MS User's Manual | RPS631-H610...
  • Page 42 Chapter 3 BIOS SETTINGS X Chipset Chipset System Agent (SA) Configuration Please select a submenu and press Enter. The submenus are detailed in the following pages. Graphics Configuration Graphics Configuration VMD setup menu VMD Configuration Settings PCI Express Configuration : VT-d VT-d capability.
  • Page 43 Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► PCI Express Configuration PCI Express Configuration Select one of the PCI Express channels and press enter to configure the following settings. PCI Express Configuration Settings PCIEx4 slot_1, PCIEx4 slot_2, M.2-M SSD, PCI Bridge, LAN1 I226, LAN2 I219 SATA Configuration Control the PCI Express Root Port.
  • Page 44 Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► HD Audio Configuration ► SATA Configuration SATA Controller(s) HD Audio This field is used to enable or disable the Serial ATA controller. Control the detection of the HD Audio device. SATA Speed •...
  • Page 45 Chapter 3 BIOS SETTINGS X Security Security Secure Boot Secure Boot Administrator Password The Secure Boot store a database of certificates in the firmware and only allows the OSes with Set the administrator password. To clear the password, input nothing and press enter when a new password is asked.
  • Page 46 Chapter 3 BIOS SETTINGS X Boot X Save & Exit Save Changes and Reset Setup Prompt Timeout To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Set the number of seconds to wait for the setup activation key. 65535 (0xFFFF) denotes indefi- Yes to reset the system after saving all changes made.
  • Page 47 Chapter 3 BIOS SETTINGS X Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility. Please contact techni- cal support or your sales representative for the files and specific instructions about how to update BIOS with the flash utility.
