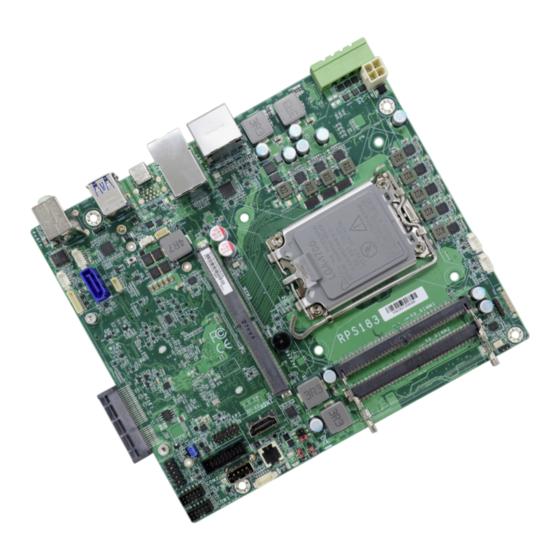

- Page 1 RPS183 Mini-ITX Industrial Motherboard User’s Manual © April 16, 2025 DFI Inc.
-
Page 2: Fcc And Doc Statement On Class B
Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be repro- This equipment has been tested and found to comply with the limits for a Class B digital duced in any form or by any means or used to make any transformation/adaptation without the device, pursuant to Part 15 of the FCC rules. -
Page 3: Table Of Contents
► Console Redirection Settings ......40 Block Diagram ........................10 ACPI Settings .........................41 Dimension ..........................10 Network Stack Configuration..................42 DFI WDT Configuration ....................43 Chapter 2 - Hardware Installation ....................11 USB Power Control ......................43 Board Layout .........................11 Tls Auth Configuration ....................44 Top View .........................11 Chipset ..........................44... -
Page 4: About This Manual
About this Manual Static Electricity Precautions This manual can be downloaded from the website. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer The manual is subject to change and update without notice, and may be based on editions that components without causing any signs of physical damage. -
Page 5: About The Package
About the Package Before Using the System Board The package contains the following items. If any of these items are missing or damaged, When installing the system board in a new system, you will need at least the following internal please contact your dealer or sales representative for assistance. -
Page 6: Chapter 1 - Introduction
Chapter 1 INTRODUCTION Chapter 1 - Introduction X Specifications Specifications RPS183-Q670E RPS183-H610E SYSTEM Processor 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W ® Intel Core™... - Page 7 Chapter 1 INTRODUCTION Specifications RPS183-Q670E RPS183-H610E SYSTEM Processor 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W ® Intel Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W ®...
- Page 8 Chapter 1 INTRODUCTION Specifications RPS183-Q670E RPS183-H610E EXPANSION Interface 1 x PCIe Gen 3 x4 (Locate at board side) 1 x M.2 2280 M Key (PCIE Gen3x4, SATA3) 1 x M.2 2230 E Key (PCIE Gen3x, USB 2.0, support Intel® CNVi) 1 x MXM Type-A/B/B+ 1x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB 3.2 Gen2, USB 2.0) 1x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB 3.2 Gen1, USB 2.0) AUDIO...
- Page 9 Chapter 1 INTRODUCTION Specifications RPS183-Q670E RPS183-H610E POWER Type DC IN Connector 4-pin Terminal 19~24V DC-In Consumption Idle: i9-13900E 65W with MXM A4500: Idle: i9-13900E 65W with MXM A4500: 24V @ 2.03A (48.72W), 19V @ 2.50A (47.50W) 24V @ 2.03A (48.72W), 19V @ 2.50A (47.50W) Max: i9-13900E 65W with MXM A4500: 24V @ 11.66A (279.84W), Max: i9-13900E 65W with MXM A4500: 24V @ 11.66A (279.84W), 19V @ 14.73A (279.87W)
-
Page 10: Block Diagram
Chapter 1 INTRODUCTION X Dimension X Block Diagram User's Manual | RPS183... -
Page 11: Chapter 2 - Hardware Installation
Chapter 2 HARDWARE INSTALLATION Chapter 2 - Hardware Installation X Board Layout Top View Bottom View Q8017 Q8016 Q8021 Q8019 U8000 Q8011 Q8010 Q8015 Q8014 DPD18 DPD2 DPD17 UBD13 UBD14 UBD9 M2CN2-G4 UBD7 Q8003 UBU4 DPQ39 ETD4 ETD5 U165 ETD2 ETD1 ETX1 M2CN2-G3... - Page 12 Chapter 2 HARDWARE INSTALLATION ▲Line-out USB2.0 Type A (Vertical) ▼Mic-in USB3.2 Panel Driver Power Q670E: 1 x USB 3.2 Gen2+ 1 x USB Type C Front Panel or 2 x USB 3.2 Gen2 H610E: 2 x USB 2.0 or 1 x USB Type C ▲2.5G LAN - I219LM(1G) OOB SPI Connector ▼2.5G LAN - I226V(2.5G)
-
Page 13: Installing The Heat Sink
Chapter 2 HARDWARE INSTALLATION X Installing the heat sink Mounting holes Installing the Heat Sink The CPU must be kept cool by using a heat sink, otherwise the CPU will overheat damaging both the CPU and system board. 1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. -
Page 14: Jumper Settings
Chapter 2 HARDWARE INSTALLATION X Jumper Settings Panel Dimming Level (DPJP1) AT/ATX Mode Select (JP2) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 „ 1-2 On: ATX Mode (Default) „... -
Page 15: Panel Backlight Power (Dpjp2)
Chapter 2 HARDWARE INSTALLATION Panel Driver Power (DPJP3) Panel Backlight Power (DPJP2) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 „ 1-2 On: +12V „ 2-3 On: +5V (Default) „... -
Page 16: Pin Assignment
Chapter 2 HARDWARE INSTALLATION X Pin Assignment System Fan2 (J7) System Fan1 (J6) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 Assignment Assignment TACH TACH User's Manual | RPS183... -
Page 17: Jtag (J22)
Chapter 2 HARDWARE INSTALLATION Debug (JP3) JTAG (J22) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 Assignment Assignment 3V3SB Debug_TX M_SWDIO Debug_RX M_SWCLK NRST User's Manual | RPS183... -
Page 18: Cpu Fan (J5) Dc-In (Cn8)
Chapter 2 HARDWARE INSTALLATION DC-in (CN8) CPU Fan (J5) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 Assignment Assignment Power Power TACH User's Manual | RPS183... -
Page 19: Dc-In (Cn9)
Chapter 2 HARDWARE INSTALLATION SATA0 (J12) DC-in (CN9) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 Assignment Assignment SATA_TX4P Power SATA_TX4N Power SATA_RX4N SATA_RX4P User's Manual | RPS183... -
Page 20: Sata Power (Cn6)
Chapter 2 HARDWARE INSTALLATION I2C Header (J1) SATA Power (CN6) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 Assignment Assignment 3V3SB 5V_SATA 5V_SATA I2C2_SCL 12V_SATA I2C2_SDA I2C2_INT User's Manual | RPS183... -
Page 21: Oob I2C Connector (J39)
Chapter 2 HARDWARE INSTALLATION OOB SPI Connector (J3) OOB I2C Connector (J39) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 Assignment Assignment EXT_SPI_SW EXT_MOSI EXT_MISO SIO_SCL EXT_CLK EXT_CS0 SIO_SDA 3V3SB User's Manual | RPS183... -
Page 22: Front Audio (Auj2)
Chapter 2 HARDWARE INSTALLATION DIO (J14) Front Audio (AUJ2) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 Assignment Assignment Assignment FRONT-R MIC1-R MIC1-JD FRONT-JD MIC1-L FRONT-L 5VSB User's Manual | RPS183... -
Page 23: Front Panel (J8)
Chapter 2 HARDWARE INSTALLATION COM1 (J10) Front Panel (J8) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 9 10 Assignment Assignment Assignment Assignment MDCD- N.C. V_SUS_LED V_PWR_LED MDTR- HDD_LED SUS_LED MDSR-... -
Page 24: Com2 (J11)
Chapter 2 HARDWARE INSTALLATION COM2 (J11) Case Open (SOJ1) DDR5_1 SODIMM (Top) DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DDR5_2 SODIMM (Bottom) 9 10 9 10 9 10 9 10 9 10 Assignment Assignment Assignment CASEOPEN- MDCD- MDTR- MDSR- MRTS- MCTS- 5V/ 12V/ MRI- ---- User's Manual | RPS183... -
Page 25: Espi Header (J9)
Chapter 2 HARDWARE INSTALLATION eSPI Header (J9) Assignment 3V3SB ESPI_RST ESPI_ALERT1 ESPI_IO_0 ESPI_IO_1 ESPI_IO_2 ESPI_IO_3 ESPI_CLK ESPI_CS0 DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) DEBUG_UART_RX 9 10 DEBUG_UART_TX 9 10 User's Manual | RPS183... -
Page 26: Usb3.2 Gen1 Header (Ubj1)
Chapter 2 HARDWARE INSTALLATION USB3.2 Gen1 Header (UBJ1) Assignment Assignment ---- USB3_2_RXN USB3_2_RXP USB3_3_RXN USB3_3_RXP USB3_2_TXN USB3_2_TXP USB3_3_TXN USB3_3_TXP DDR5_1 SODIMM (Top) DDR5_2 SODIMM (Bottom) U2DM1_C_N 9 10 U2DP1_C_P U2DM2_C_N 9 10 U2DP2_C_P User's Manual | RPS183... -
Page 27: Edp (Dpcn1)
Chapter 2 HARDWARE INSTALLATION eDP (DPCN1) Assignment Assignment eDP Panel PWR Interter Power eDP Panel PWR Interter Power eDP Panel PWR Interter Power Q8017 Q8016 Q8021 Q8019 U8000 Q8011 Q8010 Q8015 Q8014 DPD18 DPD2 DPD17 UBD13 UBD14 M2CN2-G4 Interter Power eDP_AUX- UBD9 UBD7... -
Page 28: Expansion Slots
Chapter 2 HARDWARE INSTALLATION X Expansion Slots Installing the M.2 Module Before installing the M.2 module into the M.2 socket, please make sure that the following Q8017 Q8016 Q8021 Q8019 safety cautions are well-attended. U8000 Q8011 Q8010 Q8015 Q8014 1. Make sure the PC and all other peripheral devices connected to it has been powered DPD18 DPD2 DPD17... - Page 29 Chapter 2 HARDWARE INSTALLATION Please follow the steps below to install the card into the socket. Step 1: Insert the card into the socket at an angle while making sure the notch and key are perfectly aligned. Step 2: Press the end of the card far from the socket down until against the stand-off.
-
Page 30: Installing The So-Dimm Module
Chapter 2 HARDWARE INSTALLATION Installing the SO-DIMM Module Before installing the memory module, please make sure that the following safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. 2. - Page 31 Retention Clip Chapter 2 HARDWARE INSTALLATION Socket Top View Please follow the steps below to install the memory card into the socket. Step 1: Insert the memory card into the slot while making sure 1) the notch and the key are aligned, and 2) the non-connec- tor end rises approximately 45 degrees horizontally.
-
Page 32: Chapter 3 - Bios Settings
Chapter 3 BIOS SETTINGS Chapter 3 - BIOS Settings X Overview Legends The BIOS is a program that takes care of the basic level of communication between the CPU Keys Function and peripherals. It contains codes for various advanced features found in this system board. Right / Left arrow Move the highlight left or right to select a menu The BIOS allows you to configure the system and save the configuration in a battery-backed... -
Page 33: Main
Chapter 3 BIOS SETTINGS X Main X Advanced The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. -
Page 34: Cpu Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced CPU Configuration Power & Performance Intel (VMX) Virtualization Technology When this field is set to Enabled, the VMM can utilize the additional hardware capabilities pro- vided by Vanderpool Technology. Hyper-threading Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy. -
Page 35: Power & Performance ► Cpu- Power Management Control
Chapter 3 BIOS SETTINGS Advanced Advanced Power & Performance Power & Performance ► CPU- Power Management Control ► GT- Power Management Control RC6 (Render Standby) Turbo Mode Check to enable render standby support. Enable/Disable processor Turbo Mode (requires EMTTM enabled too). AUTO means enabled. C states Enable or disable CPU Power Management. -
Page 36: Pch-Fw Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced Trusted Computing PCH-FW Configuration Security Device Support ME State This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 When this field is set to Disabled, ME will be put into ME Temporarily Disabled Mode. to achieve hardware-level security via cryptographic keys. -
Page 37: It8786 Super Io Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced IT8786 Super IO Configuration IT8786 Super IO Configuration ► Serial Port 1, 2 Configuration Serial Port Enable or disable serial port. User's Manual | RPS183... -
Page 38: It8786 Hardware Monitor
Chapter 3 BIOS SETTINGS Advanced Advanced IT8786 Hardware Monitor IT8786 HW Monitor ► Smart FAN Function This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting. Case Open Enable or disable the case open detection function. -
Page 39: It8786 Hw Monitor ► Smart Fan Function ► Cpu Fan Setting
Chapter 3 BIOS SETTINGS Advanced IT8786 HW Monitor ► Smart FAN Function ► SYS_FAN2 Setting IT8786 HW Monitor ► Smart FAN Function ► CPU FAN Setting CPU / System Smart Fan Mode Smart Fan Mode Select. IT8786 HW Monitor ► Smart FAN Function ► SYS_FAN1 Setting Fan off temperature limit Fan will be turned off when the temperature is lower than this limit. -
Page 40: Serial Port Console Redirection
Chapter 3 BIOS SETTINGS Advanced Advanced Serial Port Console Redirection Serial Port Console Redirection ► Console Redirection Settings Console Redirection By enabling Console Redirection of a COM port, the sub-menu of console redirection settings will become available for configuration as detailed in the following. User's Manual | RPS183... -
Page 41: Serial Port Console Redirection Acpi Settings
Chapter 3 BIOS SETTINGS Advanced ACPI Settings Configure the serial settings of the current COM port. Terminal Type Select terminal type: VT100, VT100+, VT-UTF8 or ANSI. Bits per second Select serial port transmission speed: 9600, 19200, 38400, 57600 or 115200. Data Bits Select data bits: 7 bits or 8 bits. -
Page 42: Network Stack Configuration
Chapter 3 BIOS SETTINGS Advanced Network Stack Configuration Network Stack Enable or disable UEFI network stack. The following fields will appear when this field is enabled. Ipv4 PXE Support Enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available. Ipv4 HTTP Support Enable or disable IPv4 HTTP boot support. -
Page 43: Dfi Wdt Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced USB Power Control DFI WDT Configuration Server CA Configuration Watchdog Timer 5_Dual: Support system wake up from S3/S4 by USB KB&MS. Enable or disable Watchdog Timer. 5V: No support system wake up from S3/S4 by USB KB&MS. -
Page 44: Tls Auth Configuration
Chapter 3 BIOS SETTINGS Advanced X Chipset Tls Auth Configuration Server CA Configuration Please select a submenu and press Enter. The submenus are detailed in the following pages. Press <Enter> to configure Server CA. User's Manual | RPS183... -
Page 45: System Agent (Sa) Configuration
Chapter 3 BIOS SETTINGS Chipset Chipset System Agent (SA) Configuration ► Graphics Configuration System Agent (SA) Configuration Primary Display Graphics Configuration Settings about graphic. Select which graphics device should be primary display. Internal Graphics VMD setup menu Keep IGFX enabled based on the setup options. VMD Configuration Settings. -
Page 46: Vmd Setup Menu
Chapter 3 BIOS SETTINGS Chipset Chipset System Agent (SA) Configuration ► PCI Express Configuration System Agent (SA) Configuration ► VMD setup menu Compliance Test Mode Enable VMD Controller Enable/Disable to VMD controller. Enable when using compliance Load Board. PCIE1 PCI Express Root Port Settings. MXM3.1-A/B PCI Express Root Port Settings. -
Page 47: System Agent (Sa) Configuration Pch-Io Configuration
Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► PCI Express Configuration PCI Express Configuration Select one of the PCI Express channels and press enter to configure the following settings. PCI Express Configuration Settings. PCIE TO USB3, LAN1, M.2-E, M.2-B, M.2-M SATA Configuration Control the PCI Express Root Port. -
Page 48: Configuration► Sata Configuration
Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► SATA Configuration ► HD Audio Configuration SATA Controller(s) HD Audio This field is used to enable or disable the Serial ATA controller. Control the detection of the HD Audio device. SATA Speed •... -
Page 49: Security
Chapter 3 BIOS SETTINGS X Security Security Secure Boot Secure Boot Administrator Password The Secure Boot store a database of certificates in the firmware and only allows the OSes with Set the administrator password. To clear the password, input nothing and press enter when a new password is asked. -
Page 50: Boot
Chapter 3 BIOS SETTINGS X Boot X Save & Exit Save Changes and Reset Setup Prompt Timeout To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Set the number of seconds to wait for the setup activation key. 65535 (0xFFFF) denotes indefi- Yes to reset the system after saving all changes made. -
Page 51: Updating The Bios
Chapter 3 BIOS SETTINGS X Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility. Please contact techni- cal support or your sales representative for the files and specific instructions about how to update BIOS with the flash utility.
