6 Operation
6. Connect the rotary cable.
a. Uncover the rotary aviation socket.
b. Connect one of the rotary cables to the
socket.
You will need to pull back its outer sheath
while aligning the 4 holes to their pins.
c. Connect the other end of the cable to the
motor of the rotary you will be using.

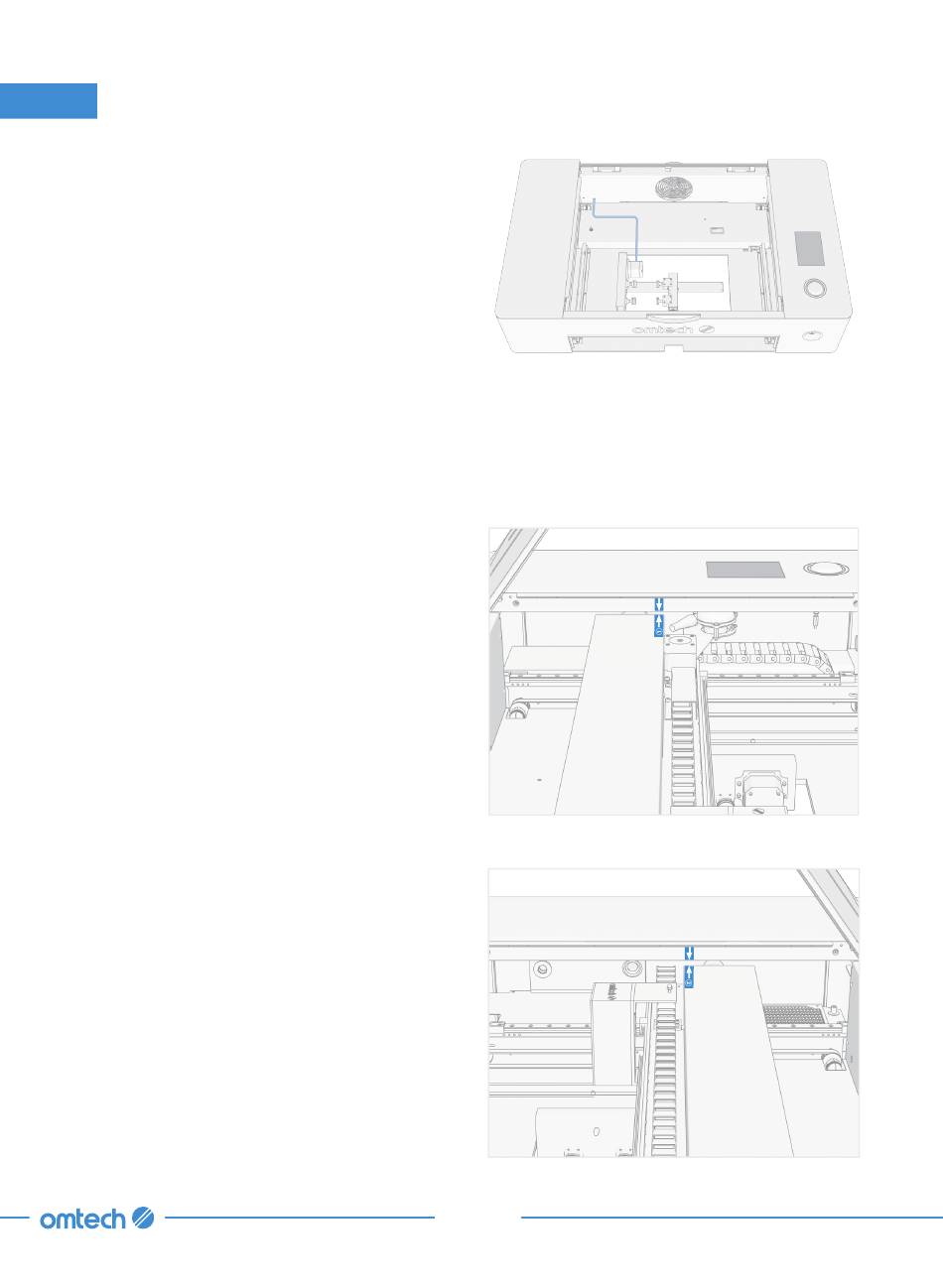

7. Place your rotary axis in the bottom left corner of the open bay so that its number label is in the
front left corner and its support frame is flush with the left side of the open bay.
8. Gently move the laser tube and X-axis rail back to align the arrow labels properly.
When you are using Rotary Axis 1, align the
① arrow label on the laser tube casing with
the arrow label on the RIGHT side of the bay.
When you are using Rotary Axis 2, align
the ② arrow label on the laser tube casing
with the arrow label on the LEFT side of
the bay.
67
