Using the System

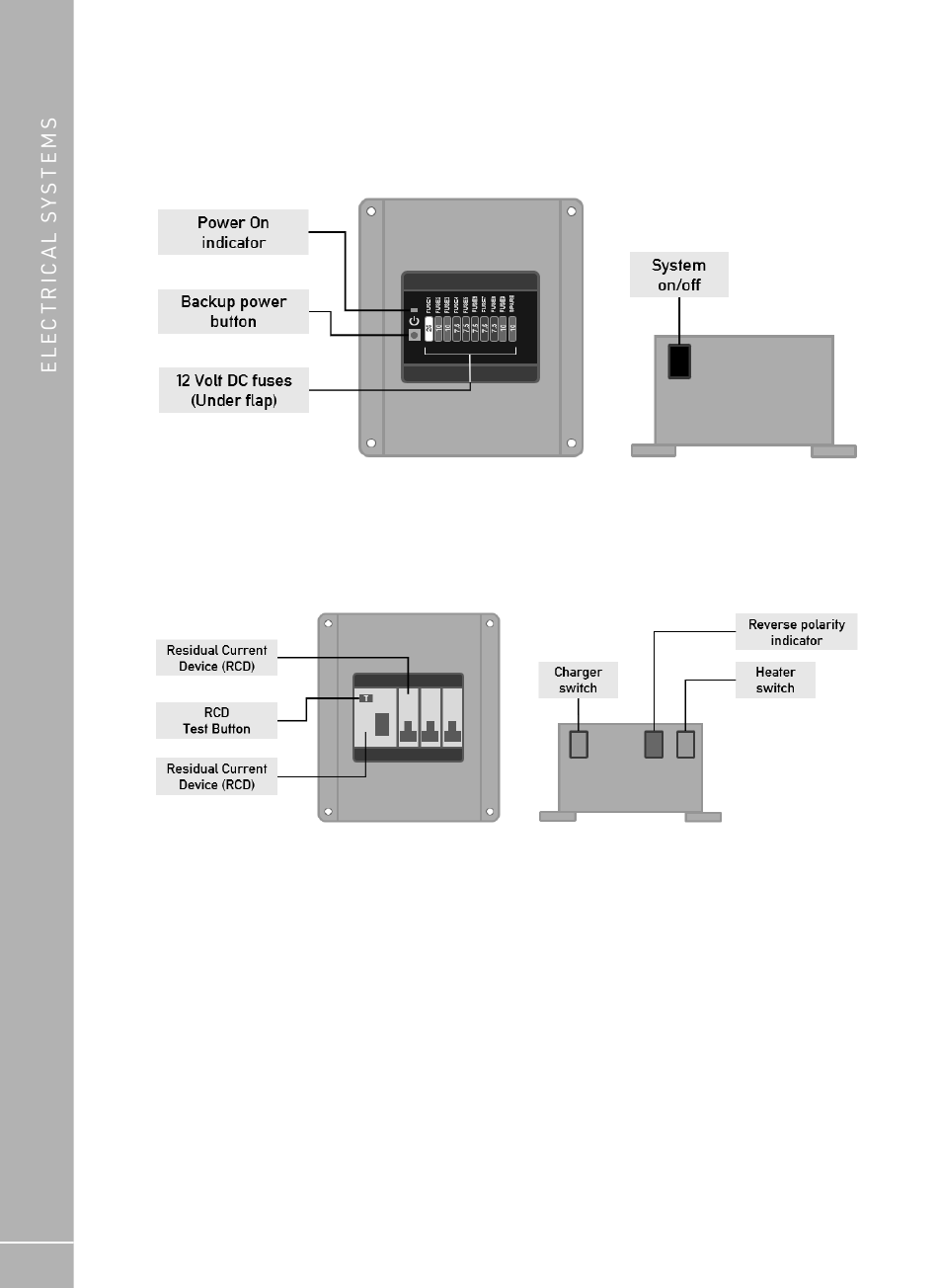

Modular Control Unit (MC100) - Component Layout
The MC100 provides protection, monitoring and control for the 12-volt electrical system in the
vehicle. The system on/off switch can be used to isolate all 12-volt circuits (except permanent
circuits
Modular Consumer Unit (MC200) - Component Layout
The MC200 provides protection and switching control for the 230-volt electrical systems in the
vehicle. The RCD switch can be used to isolate power all 230-volt circuits.
Activating the System
The system has a shutdown feature that can be
used when the vehicle is in storage. This allows
the leisure electronics to be turned off when
not required to avoid flattening of the leisure
and / or vehicle battery. When in the off state
only circuits supplied by the permanent 12-volt
output are still active, all other supplies are
turned off.
Before using the system, please ensure the
system shutdown button is in the on position
(button in) the system is now active and the
Power On indicator will illuminate. The circuits
can now be switched on using the control panel.
64
Connecting to the Mains 230V supply and
Safety checks
For your safety it is IMPORTANT that you follow
these connections instructions each time
your Leisure Vehicle is connected to a mains
supply. This section assumes that the system
is complete and that a Leisure battery has been
installed.
a. Ensure suitability of the Mains Supply
Your Leisure Vehicle should only be connected
to an approved supply that meets the
requirements of BS7671 or relevant harmonised
standards. In most cases the site warden will
hold information regarding suitability of supply.
If using a generator, you also need to comply
with the requirements / instructions supplied
