8.2 Modular Control System

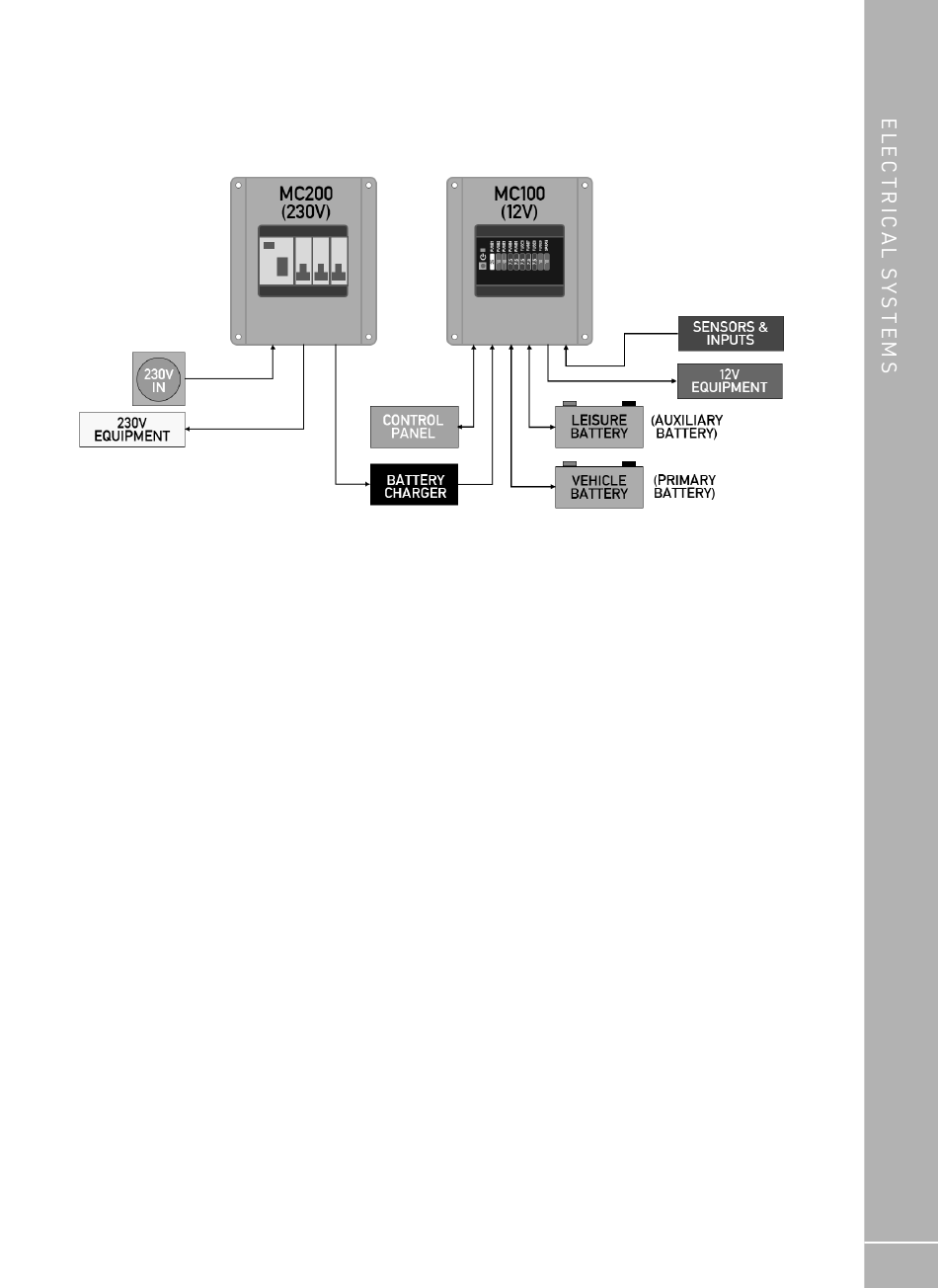

The following diagram shows the typical configuration of the modular system which provides
connectivity to the ancillary components in the vehicle.
The system has a number of key components
that you will need to be familiar with before
attempting to use the system, these are:
• The MC100 Modular Control Unit - a 12V
controller unit for monitoring, control
and supply of power to battery powered
equipment
• The MC200 Modular Consumer Unit - a 230V
consumer unit for supplying power to mains
powered electrical equipment
• The EC940 Control Panel - a remotely located
user control panel used to turn circuits on
and off and to display battery, water tank and
other system information. This panel uses a
graphical touchscreen with straightforward
controls and reliable data communication to
the Modular Control Unit
• The PX300 (300 Watt) Battery charger
