One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
AD4114
FEATURES
Fully featured evaluation board for the
PC software for control and data analysis (time domain)
EVALUATION KIT CONTENTS
EVAL-AD4114SDZ evaluation board
AD411x Eval+
evaluation software
Plastic screw and washer set
SOFTWARE NEEDED
AD411x Eval+
EQUIPMENT NEEDED
Any of the following
SDP
hardware:
or
EVAL-SDP-CK1Z
(SDP-K1)
DC signal source
PC running Windows with USB 2.0 port
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Single Supply, 24-Bit, Sigma-Delta ADC with ±10 V Inputs
AD4114
EVAL-SDP-CB1Z
(SDP-B)

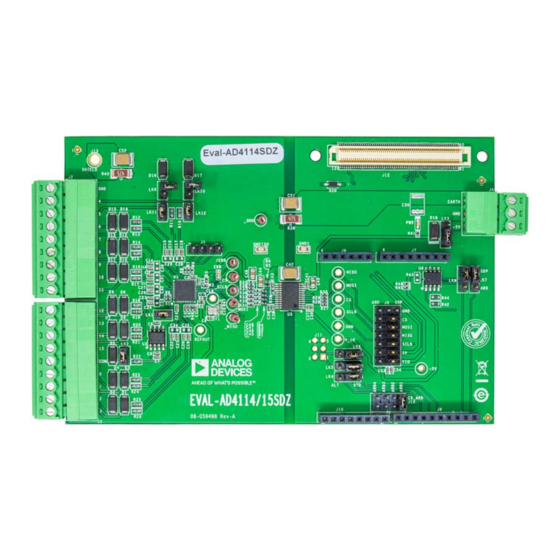

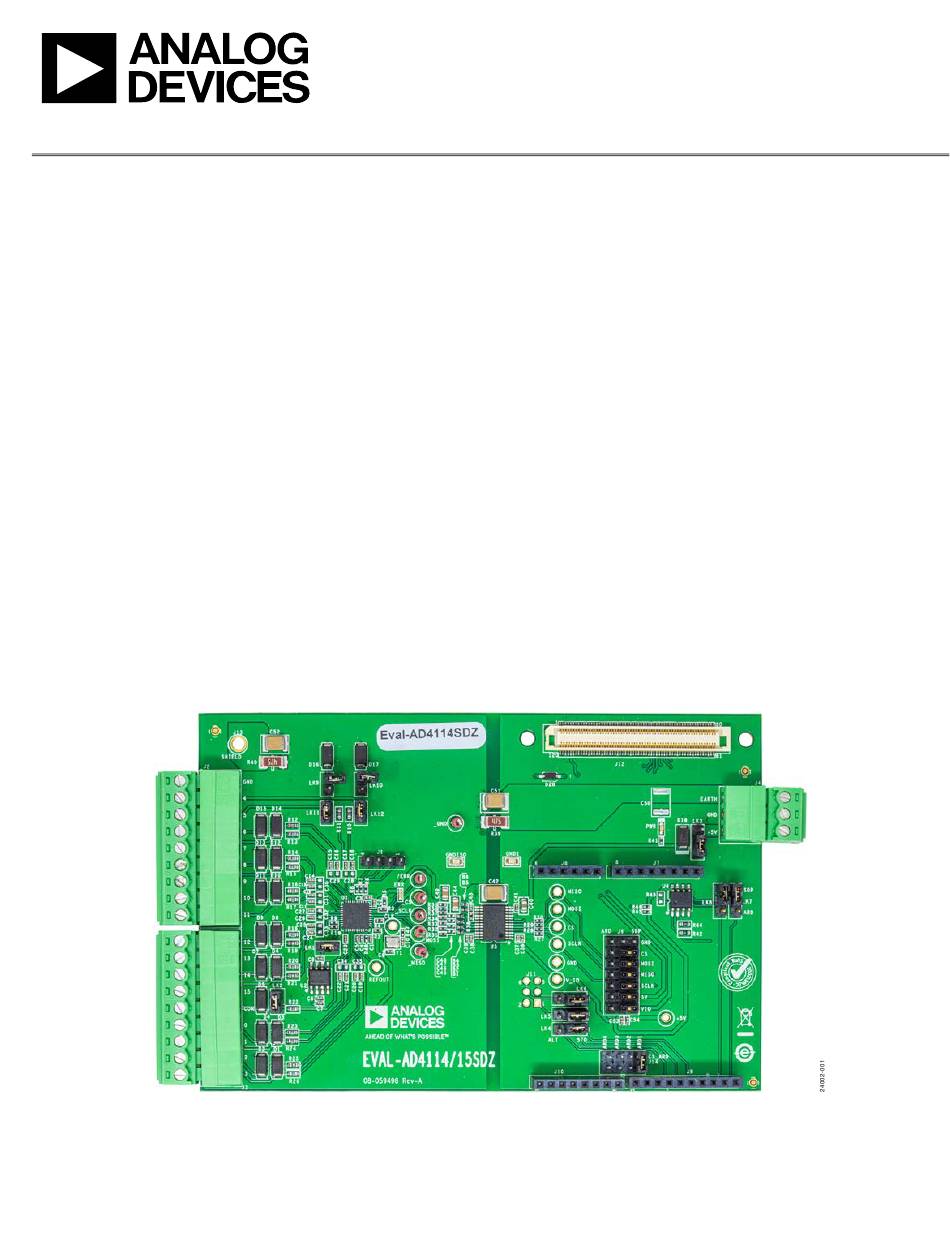

EVALUATION BOARD PHOTOGRAPH
Figure 1.
Rev. 0 | Page 1 of 24
EVAL-AD4114SDZ
GENERAL DESCRIPTION
The EVAL-AD4114SDZ is a full featured evaluation board that
can evaluate all the features of the AD4114. The
24-bit, 31.25 kSPS, Σ-Δ analog-to-digital converter (ADC) with
a ±10 V input voltage range (16 single-ended channels or eight
fully differential channels). All channels have on-board
overvoltage and overcurrent protection.
The EVAL-AD4114SDZ includes voltage references and power
and data insulation and can be connected to the Analog Devices,
Inc., system demonstration platform (SDP) hardware. The
board provides connection to a PC via a universal serial bus
(USB) port and can provide power for the EVAL-AD4114SDZ
from the PC USB port.
The
AD411x Eval+
evaluation software configures the
functionality and provides dc time domain analysis in the form
of waveform graphs, histograms, and associated noise analysis
for ADC performance evaluation.
Full specifications for the
AD4114
data sheet, which must be consulted in conjunction with this
user guide when working with the EVAL-AD4114SDZ.
User Guide
UG-1819
AD4114
is a
SDP
AD4114
are available in the
AD4114
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD4114
Summary of Contents for Analog Devices EVAL-AD4114
-
Page 1: Features
Plastic screw and washer set The EVAL-AD4114SDZ includes voltage references and power SOFTWARE NEEDED and data insulation and can be connected to the Analog Devices, Inc., system demonstration platform (SDP) hardware. The AD411x Eval+ board provides connection to a PC via a universal serial bus... -
Page 2: Table Of Contents
UG-1819 EVAL-AD4114SDZ User Guide TABLE OF CONTENTS Features ....................1 Power Supplies ................6 Evaluation Kit Contents ..............1 Analog Inputs ................6 Software Needed ................1 Reference Options .................6 Equipment Needed ................1 Evaluation Board Software ...............7 General Description ................. 1 Software Installation Procedures..........7 Evaluation Board Photograph ............ -
Page 3: Evaluation Board Block Diagram
EVAL-AD4114SDZ User Guide UG-1819 EVALUATION BOARD BLOCK DIAGRAM Figure 2. EVAL-AD4114SDZ Block Diagram Rev. 0 | Page 3 of 24... -
Page 4: Eval-Ad4114Sdz Quick Start Guide
UG-1819 EVAL-AD4114SDZ User Guide EVAL-AD4114SDZ QUICK START GUIDE RECOMMENDED QUICK START GUIDE QUICK START MEASUREMENT Use the following procedure to set up the EVAL-AD4114SDZ: Use the following procedure to capture data quickly: Disconnect the SDP (SDP-B or SDP-K1) board from the Connect the dc signal source to a selected voltage input (for USB port of the PC. -
Page 5: Evaluation Board Hardware
EVAL-AD4114SDZ User Guide UG-1819 EVALUATION BOARD HARDWARE DEVICE DESCRIPTION EVALUATION BOARD SETUP PROCEDURE AD4114 is a highly accurate, high resolution, multiplexed, After following the instructions in the Software Installation Σ-Δ ADC with 16 single-ended or 8 differential voltage inputs, Procedures section, set up the EVAL-AD4114SDZ and and a voltage range of −10 V to +10 V. -
Page 6: Serial Interface
UG-1819 EVAL-AD4114SDZ User Guide SERIAL INTERFACE ADuM5411 isoPower® digital isolator is used to isolate power and data lines up to 2.5 kV rms. The EVAL-AD4114SDZ connects via the SPI to either the ANALOG INPUTS connector or Arduino header. There are four primary signals, three inputs ( CS , SCLK, and DIN), and one output from the Sixteen voltage inputs are available on J2 and J3. -
Page 7: Evaluation Board Software
Double-click the setup.exe file to begin the evaluation board software installation. The software then installs to the following default location: C:\Program Files (x86)\Analog Devices\AD411x Eval+\. A dialog box appears asking for permission to allow the program to make changes to the PC. Click Yes (see Figure 3). - Page 8 UG-1819 EVAL-AD4114SDZ User Guide The message in Figure 7 appears when the installation is With the board still disconnected from the USB port complete. Click Next. of the PC, ensure that all other applications are closed, and then click Install. Figure 7.
- Page 9 Advanced mode can be used when more configurability of the inputs is required. In this mode, the input GUI is not From the Start menu, click Programs > Analog Devices > available. However, the user has access to the Registers tab, AD411x Eval+ >...
- Page 10 UG-1819 EVAL-AD4114SDZ User Guide Figure 16. Configuration Tab in Quick Start Mode Rev. 0 | Page 10 of 24...
-
Page 11: Software Operation
EVAL-AD4114SDZ User Guide UG-1819 Figure 17. Configuration Tab in Advanced Mode SOFTWARE OPERATION The voltage range can also be set per input to −10 V to +10 V, −5 V to +5 V, 0 V to +10 V, or 0 V to +5 V. Changing the appropriate Overview of the Main Window voltage range provides more realistic values for P - P Resolution After selecting AD4114 Evaluation Board, shown in Figure 13,... - Page 12 UG-1819 EVAL-AD4114SDZ User Guide The device only supports a certain number of ODRs. Therefore, Configuration Pop-Up Button the software rounds up to the closest available value. ODR values Each + configuration button (Label 7 in Figure 16) opens a depend on if a single channel or multiple channels are enabled. different window to configure the relevant functional block.
-
Page 13: Waveform Tabs
EVAL-AD4114SDZ User Guide UG-1819 Figure 18. Voltage Waveform Tab WAVEFORM TABS amount of samples to be shown on the data graph. Samples is unrelated to the ADC mode. AD411x Eval+ software has two different waveform tabs: Sample Voltage Waveform and Ch Waveform (in advanced mode only). The waveform tabs graph the conversions gathered and processes Click Sample (Label 18 in Figure 18) to start gathering ADC the data, calculating the P-P Noise, RMS Noise, and resolutions... - Page 14 UG-1819 EVAL-AD4114SDZ User Guide Device Error Noise Analysis The Device Error indicator (Label 21 in Figure 18) illuminates The noise analysis area (Label 23 in Figure 18) displays the in the Voltage Waveform tab and Ch Waveform tab when a results of the noise analysis for the selected analysis input, cyclic redundancy check (CRC) error or an error in the ADC is including both noise and resolution measurements.
-
Page 15: Histogram Tab
EVAL-AD4114SDZ User Guide UG-1819 Figure 19. Histogram Tab of the AD411x Eval+ Software HISTOGRAM TAB Display Units and Axis Controls Click the Units: V/mV/A/mA box in the Graph Configuration The Histogram tab generates a histogram using the gathered area (Label 29 in Figure 19) to select whether the data graph samples and processes the data to calculate the P-P Noise, RMS displays in units of voltages, amps, or codes. -
Page 16: Register Map Tab (Advanced Mode Only)
UG-1819 EVAL-AD4114SDZ User Guide Figure 20. Registers Tab REGISTER MAP TAB (ADVANCED MODE ONLY) Documentation Register Maps List The Documentation area (Label 38 in Figure 20) contains the documentation for the register or the bit field selected. This field Click the Register Maps nested list (Label 31 in Figure 20) to can be updated by selecting a register or bit field in the register show each register. -
Page 17: Evaluation Board Schematics And Artwork
EVAL-AD4114SDZ User Guide UG-1819 EVALUATION BOARD SCHEMATICS AND ARTWORK +VA_ISO 0.1UF 0.1UF VOLTAGE REF GND_ISO GND_ISO REFOUT ADR4525BRZ GND_ISO AVDD IOVDD +VA_ISO REF- REFOUT VOUT REF+ REGCAPA VIN0 VIN0 REGCAPD VIN1 VIN1 0.1UF VIN2 VIN2 0.1UF VIN3 VIN3 VIN4 VIN4 VIN5 GND_ISO GND_ISO... - Page 18 UG-1819 EVAL-AD4114SDZ User Guide Figure 22. Voltage Input Front End Schematic Rev. 0 | Page 18 of 24...
- Page 19 EVAL-AD4114SDZ User Guide UG-1819 Figure 23. and Arduino Connector Schematic Rev. 0 | Page 19 of 24...
- Page 20 UG-1819 EVAL-AD4114SDZ User Guide +VA_ISO _GND _SCLK _MOSI _MISO ISOLATION GNDISO 10UF ISOLATION AND POWER SUPPLY CIRCUTY ARE BASED OF AN EMC DESIGN. MORE DETAILS CAN BE FOUND IN AN-1572 GND_ISO GND_ISO V_IO ADUM5411BRSZ GND1 SCLK_ISO VDD1 VDD2 0.1UF 0.1UF GND1 GNDISO SCLK...
- Page 21 EVAL-AD4114SDZ User Guide UG-1819 Figure 25. Top Printed Circuit Board (PCB) Figure 26. Component Side Silkscreen Top Rev. 0 | Page 21 of 24...
- Page 22 UG-1819 EVAL-AD4114SDZ User Guide Figure 27. Layer 1, Component Side Figure 28. Layer 2, Solder Side Rev. 0 | Page 22 of 24...
-
Page 23: Ordering Information
Resistor, 1 kΩ, 0.063 W, 5%, 0402 Yageo RC0402JR-071KL R42, R44 Resistors, 100 kΩ, 0.063 W, 1%, 0603 Multicomp MC0063W06031100K Resistor, DNI, 0402 Bourns CHV2010-JW-475ELF Single supply, 24-bit, sigma-delta ADC with ±10 V Analog Devices AD4114SDZ inputs Rev. 0 | Page 23 of 24... - Page 24 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
