FEATURES

Full featured evaluation board for the
Analysis | Control | Evaluation (ACE) Software
able for device configuration, data capture, and performance
evaluation
Flexible analog front end
On-board power solution and precision reference
On-board clock generation circuitry with sampling frequency
control via the ACE Software
FMC compatible

EVALUATION BOARD KIT CONTENTS

EVAL-AD4080-FMCZ evaluation board
Micro-SD memory card with SD adapter, containing system
board boot software and Linux OS

EQUIPMENT NEEDED

®
PC running Windows
10 operating system or higher
Digilent ZedBoard with 12 V wall adapter power supply
Precision signal source
SMA cables to connect a signal source to the EVAL-AD4080-
FMCZ

EVALUATION BOARD PHOTOGRAPH

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluating the AD4080 20-Bit, 40 MSPS, Differential SAR ADC
AD4080
plug-in avail-

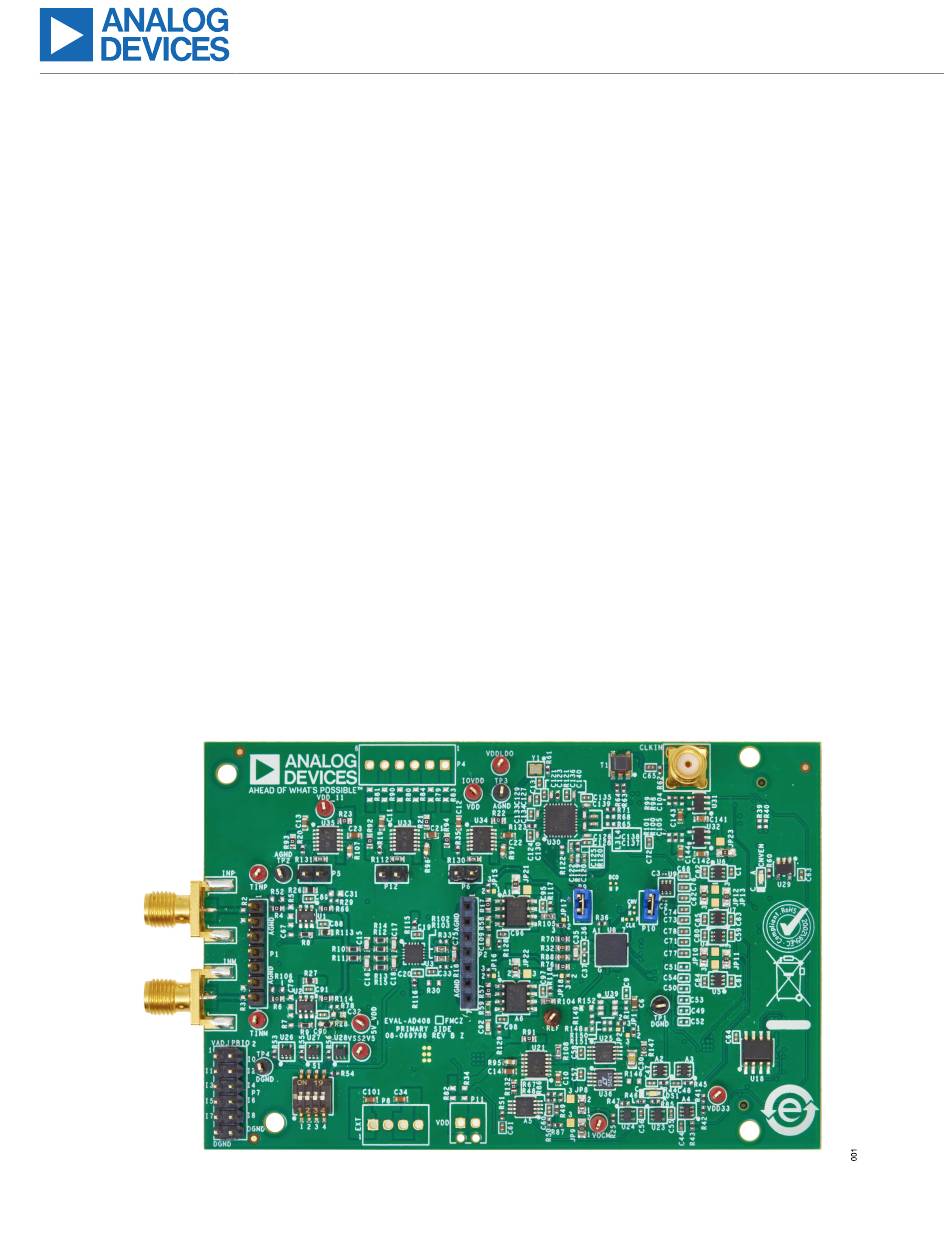

Figure 1. EVAL-AD4080-FMCZ Photograph
User Guide | EVAL-AD4080

GENERAL DESCRIPTION

The EVAL-AD4080-FMCZ is designed to demonstrate the AD4080
performance and provide access to a limited set of AD4080 fea-
tures in the ACE Software environment. The EVAL-AD4080-FMCZ
evaluation kit supports the following AD4080 features:
Low voltage digital signaling (LVDS) data output interface
Analog-to-digital converter (ADC) configuration via serial periph-
eral interface (SPI)
Internal or external generation of 1.1 V regulated supply rails
Sampling rate capability between 1.25 MSPS and 40 MSPS
The EVAL-AD4080-FMCZ evaluation board was designed for use
with the Digilent ZedBoard via the field programmable gate array
(FPGA) mezzanine card (FMC) connector. The ZedBoard uses a
Xilinx Zynq7000 system on chip (SoC) that runs Analog Devices,
Inc., Kuiper Linux and LIBIIO included on the SD card supplied in
the evaluation board kit to facilitate communication with the EVAL-
AD4080-FMCZ, enabling ADC configuration and data capture. The
ZedBoard also provides the communication link to the host PC and
the ACE Software plug-in.
UG-2214
Rev. 0 | 1 of 19
