One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the
FEATURES
Full-featured evaluation board for the
Various test circuits
Various ac/dc input signals
PC control via a separately purchased system demonstration
platform (SDP-B)
PC software for control
PACKAGE CONTENTS
EVAL-AD5162SDZ
board
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the
Electronic version of the UG-348 user guide

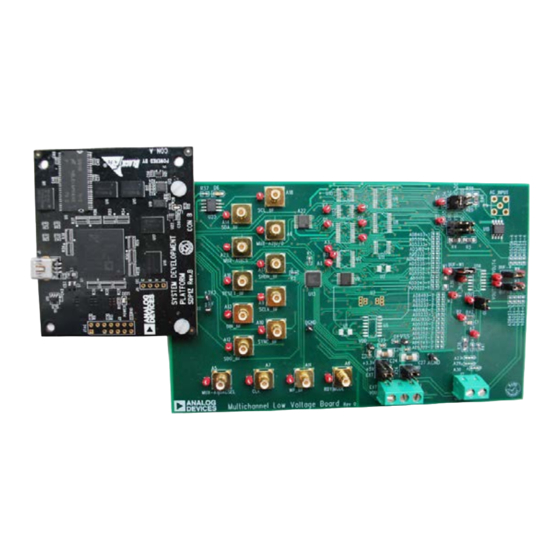

DIGITAL PICTURE OF EVALUATION BOARD WITH SYSTEM DEMONSTRATION PLATFORM
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD5162
AD5162
data sheet
SYSTEM DEMONSTRATION
PLATFORM
EVAL-AD5162SDZ User Guide
AD5162
Digital Potentiometer
GENERAL DESCRIPTION
This user guide describes the evaluation board for evaluating the
AD5162, a dual-channel, 256-position digital potentiometer.
The
AD5162
supports a single-supply 2.7 V to 5.5 V operation,
making the device suitable for battery-powered applications and
many other applications. In addition, the
tile SPI-compatible serial interface, allowing speeds of up
to 25 MHz.
The
EVAL-AD5162SDZ
incorporates an internal power supply from the USB.
Complete specifications for the
the
AD5162
data sheet, which is available from Analog Devices,
Inc., and should be consulted in conjunction with this user
guide when using the evaluation board.
EVAL-AD5162SDZ
Figure 1.
Rev. 0 | Page 1 of 16
UG-348
AD5162
uses a versa-
can operate in single-supply mode and
AD5162
part can be found in
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD5162SDZ
Summary of Contents for Analog Devices EVAL-AD5162SDZ
-
Page 1: Features
AD5162 part can be found in board and exercise all functions of the device AD5162 data sheet, which is available from Analog Devices, Electronic version of the AD5162 data sheet Inc., and should be consulted in conjunction with this user Electronic version of the UG-348 user guide guide when using the evaluation board. -
Page 2: Table Of Contents
UG-348 EVAL-AD5162SDZ User Guide TABLE OF CONTENTS Features ....................1 Test Circuits ...................4 Package Contents ................1 Evaluation Board Software ...............6 General Description ................. 1 Installing the Software ..............6 Digital Picture of Evaluation Board with System Running the Software ..............6 Demonstration Platform.............. -
Page 3: Evaluation Board Hardware
EVAL-AD5162SDZ User Guide UG-348 EVALUATION BOARD HARDWARE POWER SUPPLIES LINK OPTIONS EVAL-AD5162SDZ supports using single power supplies. Several link and switch options are incorporated in the evaluation board and should be set up before using the board. The evaluation board can be powered either from the... -
Page 4: Test Circuits
UG-348 EVAL-AD5162SDZ User Guide TEST CIRCUITS AC Signal Attenuation RDAC1 can be used to attenuate an ac signal, which must be EVAL-AD5162SDZ incorporates several test circuits to provided externally using the AC_INPUT connector, as shown evaluate the AD5162 performance. in Figure 3. - Page 5 EVAL-AD5162SDZ User Guide UG-348 Signal Amplifier The inverting amplifier with linear gain is shown in Figure 5, and the gain is defined in Equation 4. RDAC2 can be operated as an inverting or noninverting signal amplifier supporting linear or pseudologarithmic gains. Table 6 Note that the input signal, V , must be negative.
-
Page 6: Evaluation Board Software
EVAL-AD5162SDZ evaluation kit includes evaluation board software provided on a CD. The software is compatible Click Start > All Programs > Analog Devices > AD5162 > with Windows® XP, Windows Vista, and Windows 7 (both AD5162 Eval Board. 32 bits and 64 bits). -
Page 7: Software Operation
EVAL-AD5162SDZ User Guide UG-348 SOFTWARE OPERATION REGISTER ACCESS has the following options: The main window of the EVAL-AD5162SDZ software is • SEND DATA is a customized I C data-word that can be divided into the following sections: RDAC1, RDAC2, and sent by manually switching the scroll bars from 0 to 1 or REGISTER ACCESS. -
Page 8: Evaluation Board Schematics And Artwork
UG-348 EVAL-AD5162SDZ User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 8. Schematic of Multiboard Digital Potentiometers Rev. 0 | Page 8 of 16... - Page 9 EVAL-AD5162SDZ User Guide UG-348 U15-C AC_INPUT U15-A AC + DC AD8652AR DAC + FLOATING DAC + BW AD8403-1 W1-1 W1_BUF BUF-W1 AD5204-1 W1-2 AD5233-1 W1-3 U14-A AD8618ARZ AD5162-1 W1-4 AD5232-1 W1-5 ADN2850-1 W1-6 AD5235-1 W1-7 AD5254-1 W1-8 PSEUDOLOG ATTENUATOR AD5252-1...
- Page 10 UG-348 EVAL-AD5162SDZ User Guide Figure 11. Schematic of AD5162 Power Supplies and Other Channels Rev. 0 | Page 10 of 16...
- Page 11 EVAL-AD5162SDZ User Guide UG-348 Figure 12. Schematic of SDP-B Connector Rev. 0 | Page 11 of 16...
- Page 12 UG-348 EVAL-AD5162SDZ User Guide Figure 13. Component Side View Figure 14. Component Placement Drawing Figure 15. Layer 2 Side PCB Drawing Rev. 0 | Page 12 of 16...
- Page 13 EVAL-AD5162SDZ User Guide UG-348 Figure 16. Layer 3 Side PCB Drawing Figure 17. Solder Side PCB Drawing Rev. 0 | Page 13 of 16...
-
Page 14: Ordering Information
UG-348 EVAL-AD5162SDZ User Guide ORDERING INFORMATION BILL OF MATERIALS Table 7. Reference Designator Description Supplier /Part Number 10 nF capacitor, 0805 FEC 1692285 C2, C4, C25, C26 0.1 µF capacitor, 0603 FEC 138-2224 1 µF capacitor, 0402 FEC 1288253 C24, C27 10 µF capacitor, 1206... -
Page 15: Related Links
EVAL-AD5162SDZ User Guide UG-348 RELATED LINKS Resource Description AD5162 Product Page, 256-Position Dual-Channel SPI Compatible Digital Potentiometer AD5233 Product Page, Nonvolatile, Quad, 64-Position Digital Potentiometer AD5222 Product Page, Dual, Increment/Decrement Digital Potentiometer AD5254 Product Page, Quad 256-Position I C Nonvolatile Memory, Digital Potentiometer... - Page 16 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
