2 Description

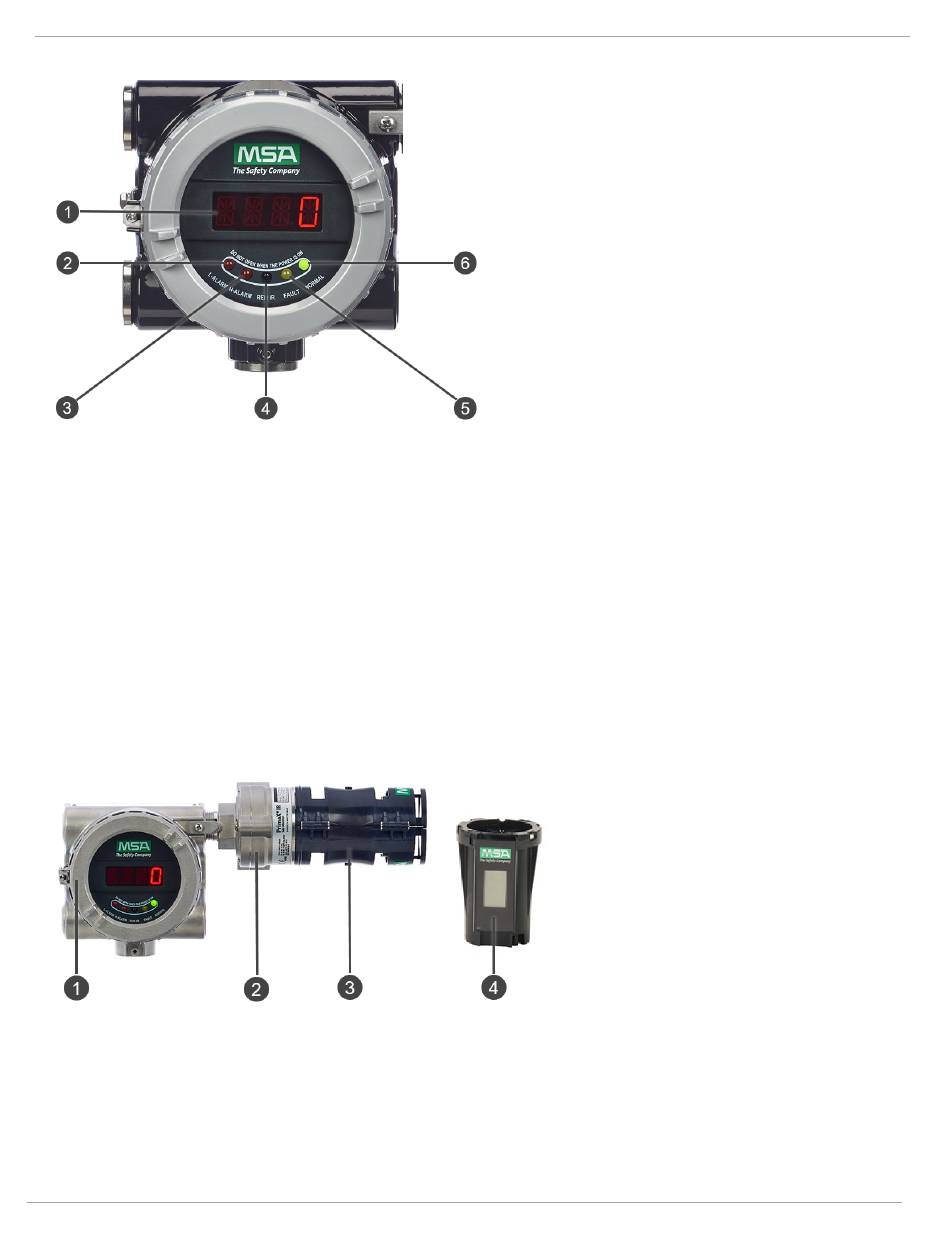

Figure 1 Device LED and Display
1 Display 4
2 Warning LED 5
3 Alarm LED 6
2.2

Package Contents

The device will be delivered with the following items in the shipping carton:
• PrimaX IR+ Gas Detector or PrimaX IR+ Display Housing and PrimaX IR Sensor or PrimaX IR+ Display Housing
(Aluminum or 316 Stainless Steel) and PrimaX IR Sensor (316 Stainless Steel)
• Environmental guard
• Quick Start Guide
• This instruction manual, HART specification and installation drawing
• Mounting kit
Figure 2 Overview
1 Housing (aluminum or stainless) 3
2 Sensor (316 stainless steel)
Accessories to be used with this product may be packaged separately. Check the enclosed shipping papers to identify
all PrimaX IR+ accessories that have been ordered.
8
Remote controller IR LED
Fault LED
Normal status LED
Environmental guard
4 Calibration cap (optional)
