Hart Information For Troubleshooting; Cleaning - MSA PrimaX IR+ Operating Manual

Indication Action
fail, verify adequate span gas and flow. Verify that the Span gas is applied within the 30 second
window. Check the o-ring integrity to ensure a good seal between the sensor and the calibration
cap. Check the cap for damage.
Calibration cap
rapidly flashes all The calibration cap battery is nearing the end of its useful life. The calibration cap will continue to
icons during start- operate until the battery is consumed.
up
Known gas Calibrate. If calibration fails, remove power and reapply. Verify span gas flow rate and cylinder
concentration accuracy. Verify environmental guard and/or flow cap are not obstructed. Verify line load is
response is according to electrical installation chapter
incorrect range is appropriate for the device rating.
The PrimaX IR+ is designed to meet all specifications with only one source. Source status is
One source not
available through HART communication. See HART manual for details. Perform standard
flashing
calibration. No further action required.
6.3

HART Information for Troubleshooting

The HART digital signal can provide additional information on the unit's health and status. Some of the information
includes specific fault, calibration and obscuration status.
See the PrimaX IR HART specification document (10125187), which can be found on the product page
https://msasafety.info/PrimaXIRPlus, for more information. Use the HART digital interface to query the unit to provide
additional troubleshooting information.
6.4

Cleaning

The presence of particulate matter, oil films, liquid water, or the residue from water drops on the device optics can
adversely affect its performance. The environmental guard is designed to prevent solids or liquids from reaching the
monitor's optical system. Heating elements are also incorporated into the unit to prevent water condensation. Under
severe conditions, however, some material may collect on these surfaces and it may be necessary to occasionally
check and clean the windows.

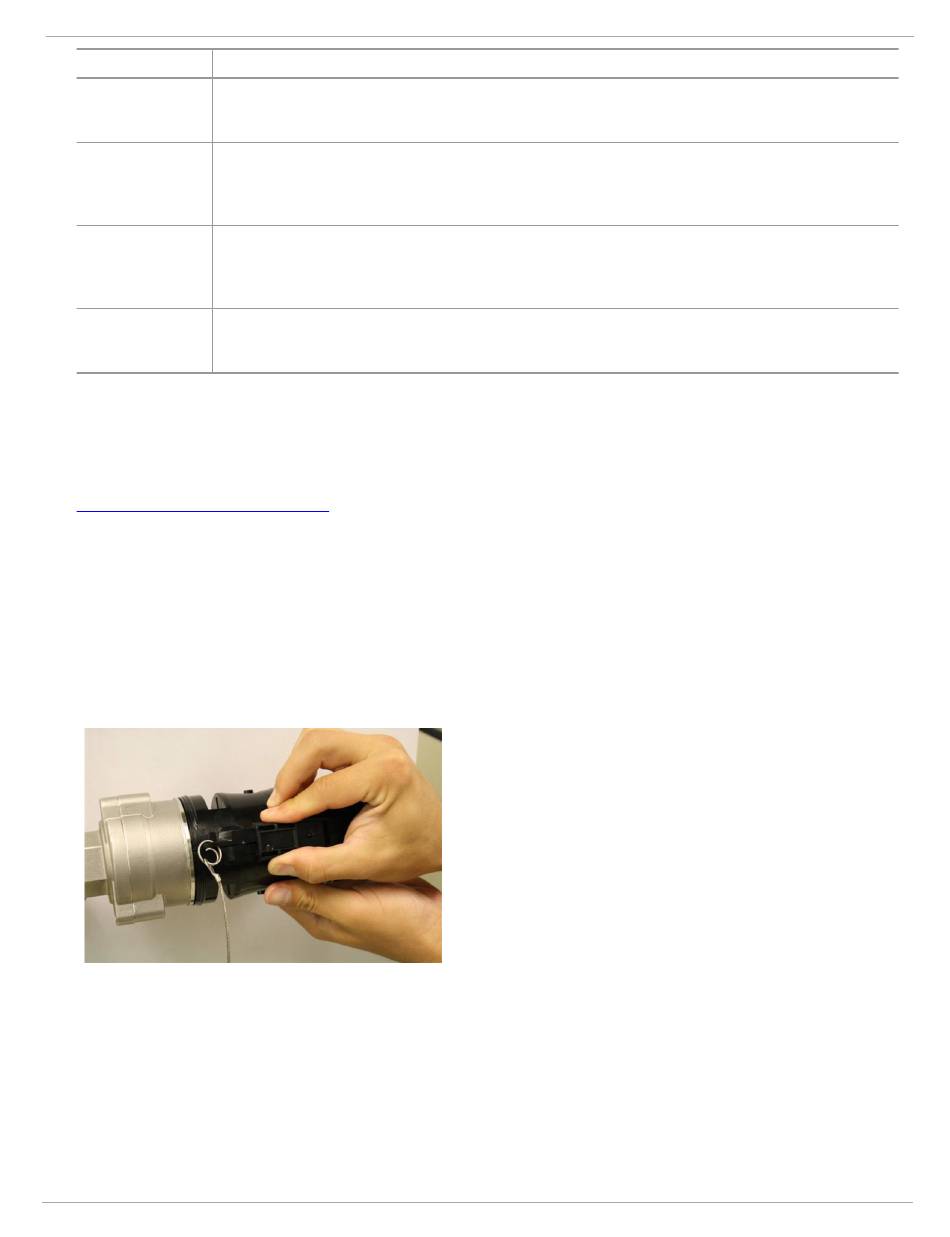

Figure 21 Remove Environmental Guard
US
3.2 Electrical Installation. Verify ambient temperature
1. Remove the environmental or flow cap.
6 Maintenance
33
