3 Installation

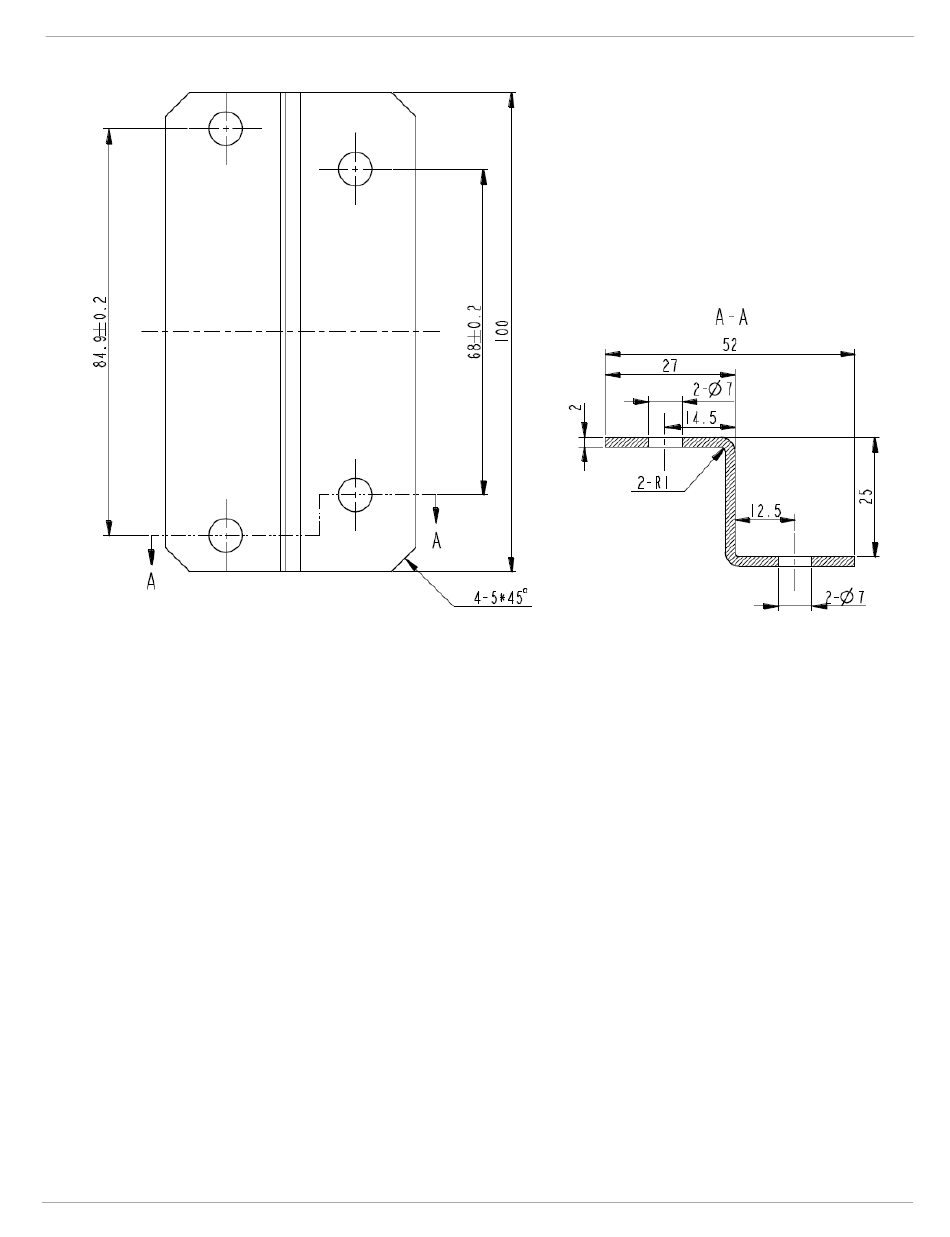

Figure 7 Mounting Bracket
2. The optimum orientation for the device is horizontal.
When deploying the optional remote junction box, the PrimaX IR sensor can be mounted up to 30 m (100') from the
PrimaX IR+ display housing. Please see section
3.2 Electrical Installation
for additional details
US
13
