8 Ordering Information
Calibration of the device mounted in an air duct must be done with the HART interface. Once calibration has been
initiated, apply the calibration gasses via the gas calibration port. Ensure that the duct is free of all gases to which the
sensor will respond and the duct flow rate is below 1 m/s. If hydrocarbon combustible gas is present in the duct, the
sensor must be removed from the duct during calibration. The sensor can be removed from the duct mount bracket via
four screws.

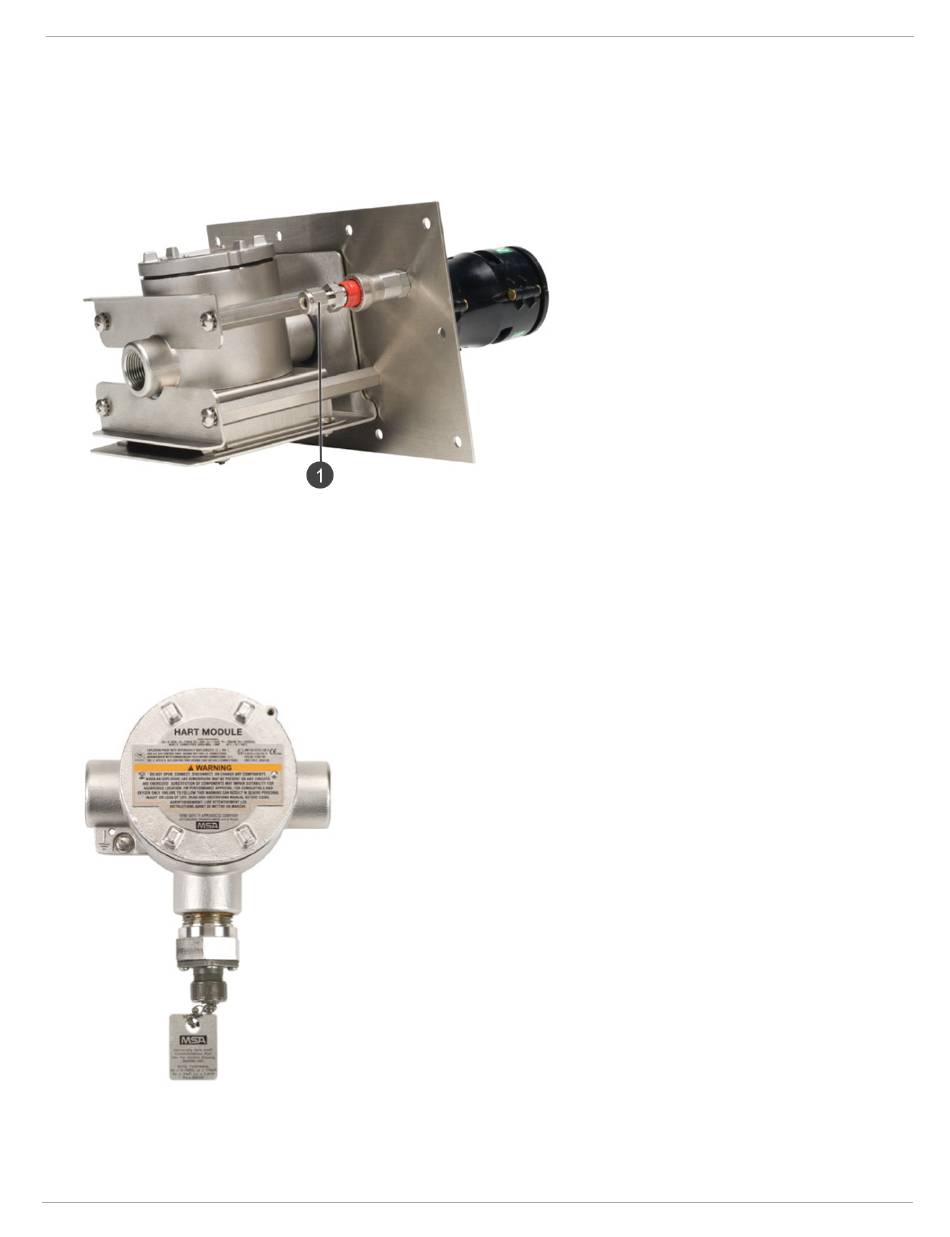

Figure 26 Duct Mount
1 Gas calibration port
8.6

HART Module

The HART Module is a 316 Stainless Steel enclosure that provides a hazardous area approved HART port for access
to the HART signal. The PrimaX IR+ can be mounted to this module using an available port and all applicable facility
wiring rules from Section apply to wiring the HART Module.
Figure 27 HART Module
An optional cable is available from MSA to connect to the XP HART port from a hand-held controller.
US 39
