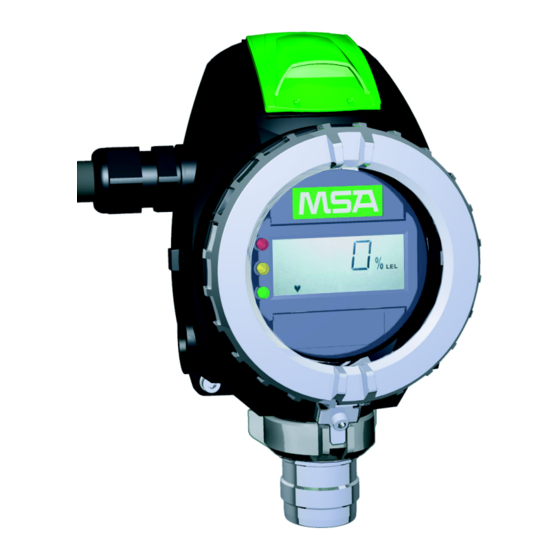

PrimaX Gas Detector Quick Start Guide
Warning!
The quick start guide does not replace the operating manual. It is imperative that
the operating manual be read and observed when using the device. In particular,
the safety instructions, as well as the information for the use and operation of the
device, must be carefully read and observed.
The operating manual can also be provided as a hard copy upon request.
Install the unit
Slacken the two hexagon socket head screws and remove the backplate.
Mount the backplate in the desired location, using
M6 (1/4") screws, ensuring the sensor will be
pointing down.
Connect the unit
2-wire connection - PrimaX I
GB
Secure the PrimaX detector to the backplate as
shown and tighten the two hexagon socket head
screws
3-wire connection - PrimaX P
10115650/00
